PAPER FEED AND SEPARATION
B473 10 SM
2.2 PAPER FEED AND SEPARATION
A standard FRR system is used. It consists of the pick-up, feed, and separation
rollers.
2.2.1 STARTING PAPER FEED
The feed motor [A] drives the transport rollers [B].
The separation roller [C], which is free to rotate in the direction indicated by the
arrow, remains at rest.

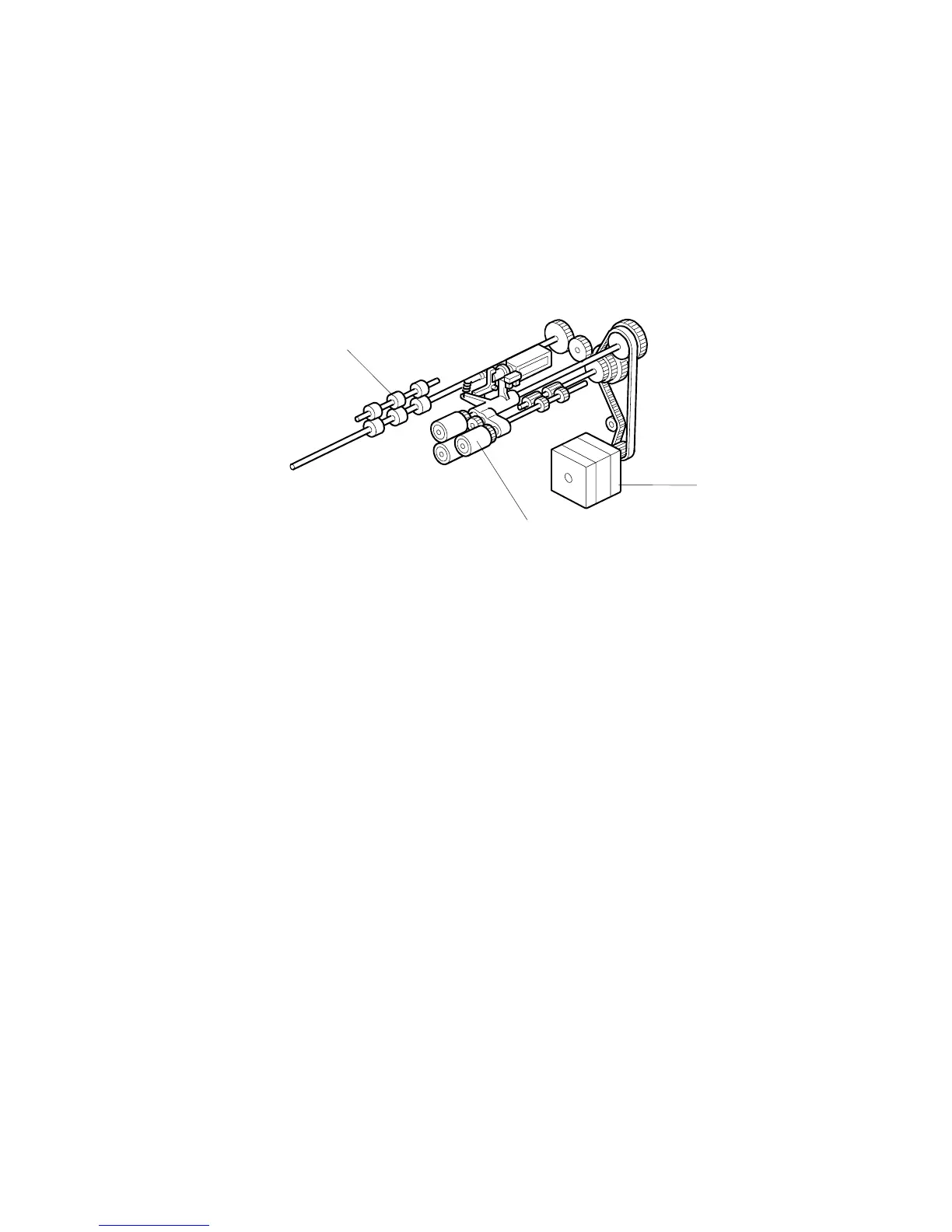

B473D004.WMF
[A]
[B]
[C]
