2.5 PAPER TRAY UNIT HEATER

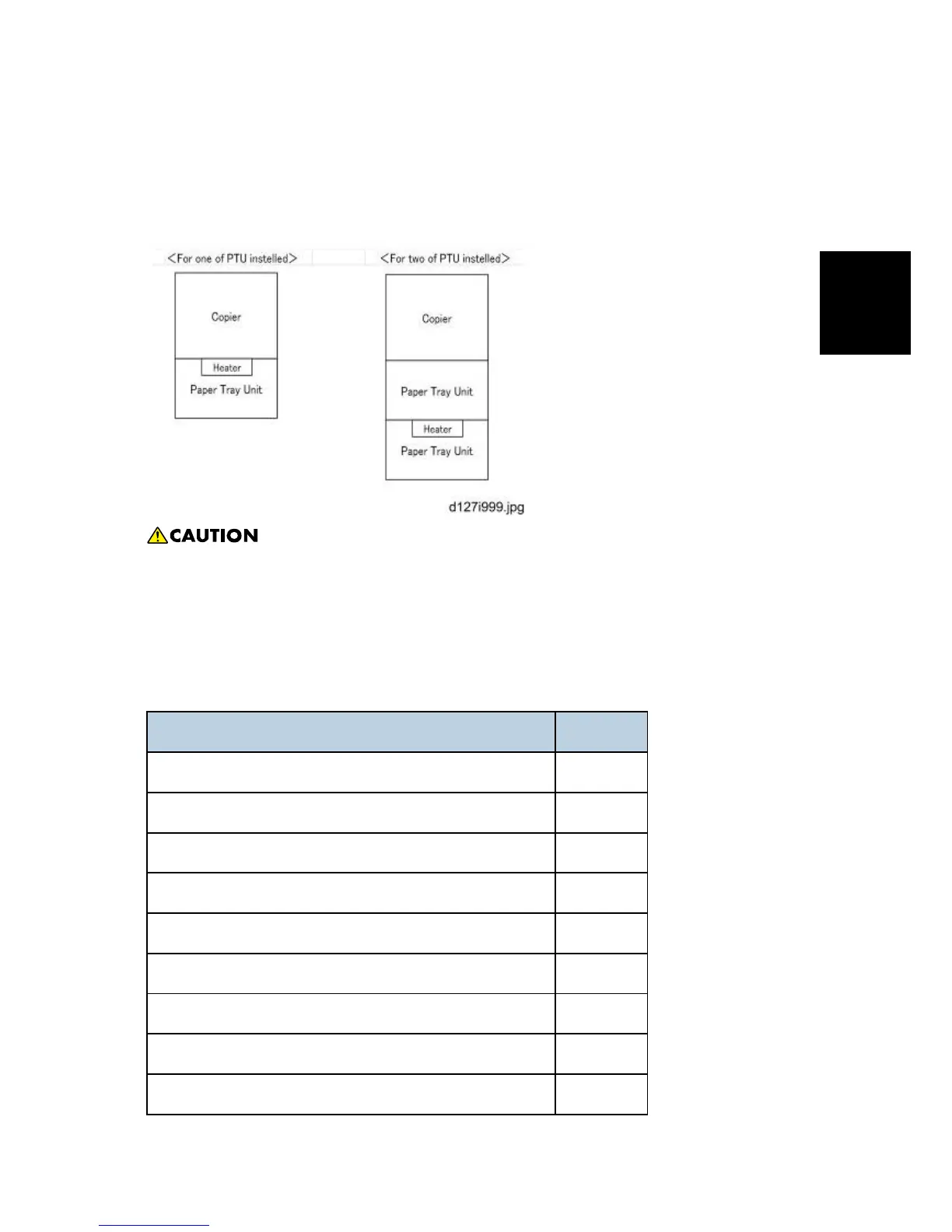

The paper tray unit heater is installed in different place depending on the number of installed
paper tray units (Two units can be installed at a maximum).
 The operation system doesn't work when more than three of the paper tray units are
installed.
2.5.1 ACCESSORY CHECK
Confirm that you have the accessories listed below.
Description Q'ty
1. Heater fastening screw 2
2. Grounding wire and Harness cover fastening screw 7
3. Washer 7
4. Spring washer 7
5. Joint bracket fastening screw 8
6. Clamp (Large) 2
7. Clamp (Mid) 5
8. Clamp (Small) 2
9. Edge saddle 1
