ARDF DF3090
D146/D147/D148/D149/D150 2-54 SM
16. Attach the rear cover.
17. Plug in and turn on the main power switch of the machine, and then check the ARDF
operation.
18. Make a full size copy. Check that the registrations (side-to-side and leading edge) and image
skew are correct. If they are not, adjust the registrations and image skew (see ARDF Image
Adjustment in the "Replacements and Adjustments" chapter).

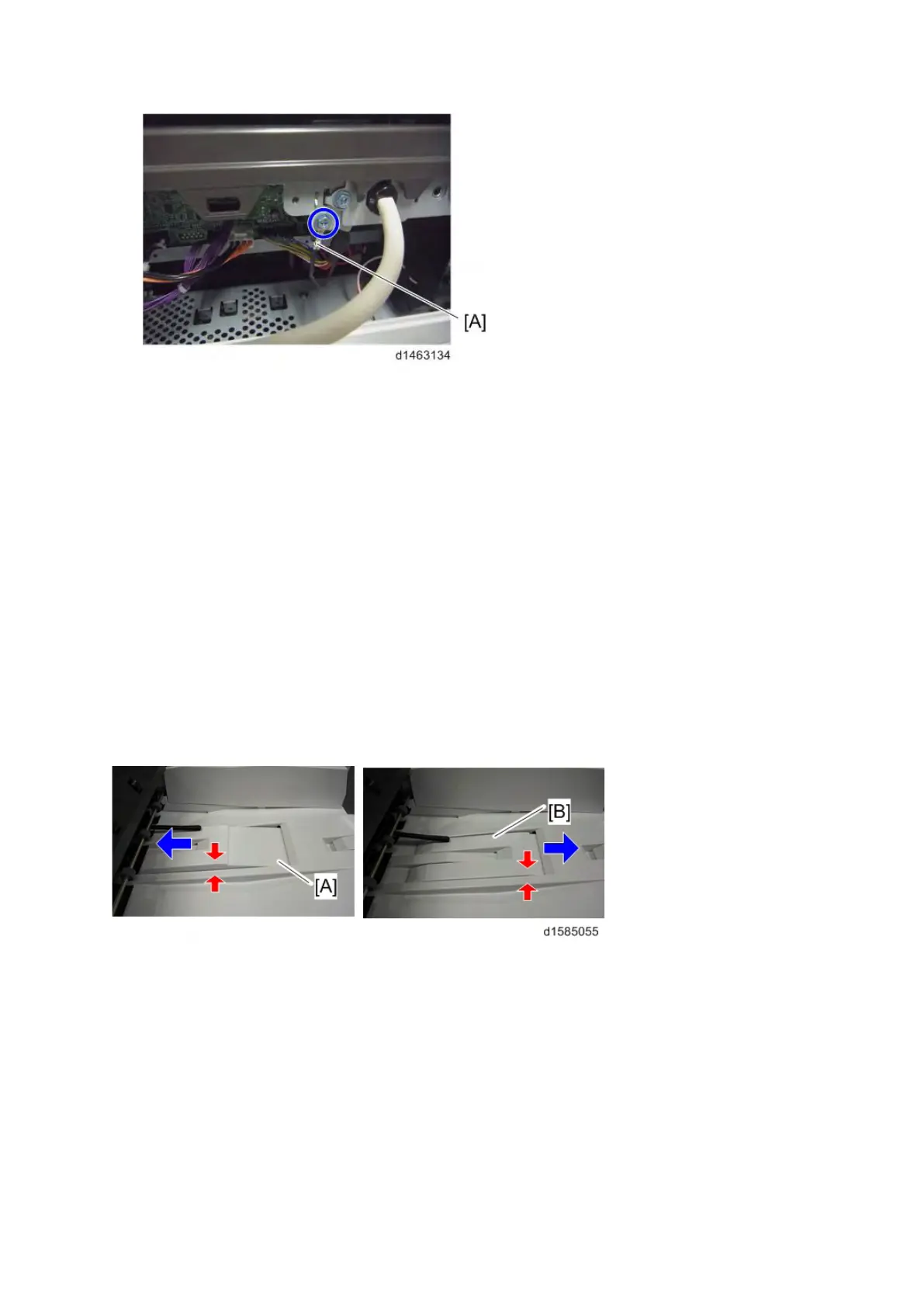

When feeding thin paper
When feeding thin paper, adjust the sliding tray to the point shown below [A].
When feeding normal paper, adjust the sliding tray to the point shown below [B].
If not, it may cause problems as follows:
§ Original jam
§ Original curl
§ Originals cannot be stacked neatly
