Punch Unit PU3060
SM 2-95 D146/D147/D148/D149/D150

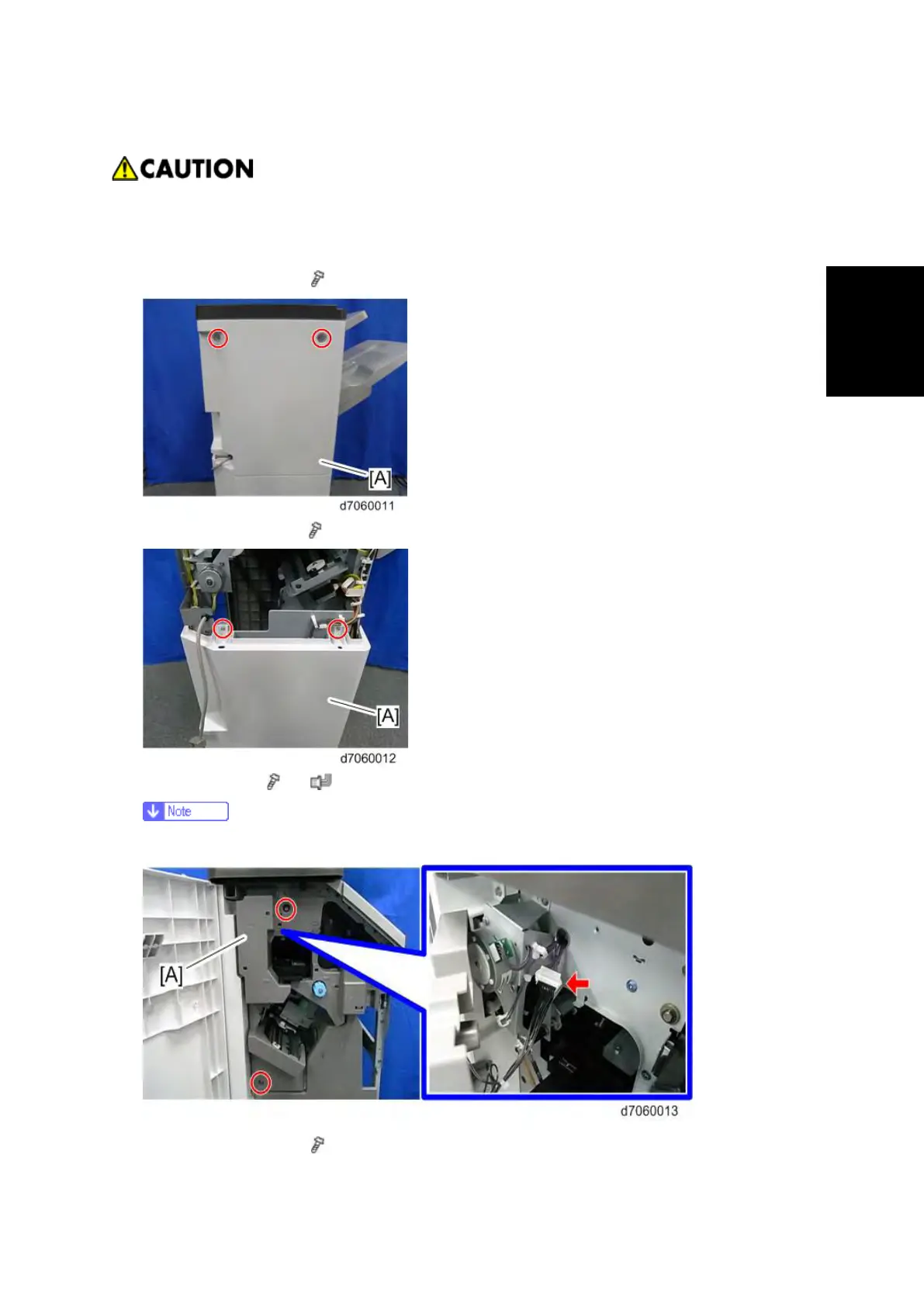

2.16.2 INSTALLATION PROCEDURE
§ When installing this option, turn the power source of the machine off, and unplug the
power plug from the wall socket.
§ If it is installed when the power is on, it will result in an electric shock or a malfunction.
1. Rear upper cover [A] (
×2)
2. Rear lower cover [A] ( ×2)
3. Inner cover [A] (
×2, ×1)
§ There is a connector on the back of the inner cover.
4. Punch guide plate [A]( ×1)
To Next Page
