Ricoh FAX1120L Field Service Manual

6.Troubleshooting
191
Jam message
Cause
Sensor
sensor (optional tray)
sensor [4]
Internal Misfeed
Paper stays at the registration sensor
Registration
sensor [1]
Paper does not reach the exit sensor
Paper exit sensor
[2]
Misfeed: Duplex Unit Remove Paper
(Touch panel models)
Misfeed: Dup. Unit Remove Paper
(Four-line LCD models)
Paper does not reach the registration
sensor (duplex feed)
Registration
sensor [1]
Paper does not reach the duplex entry
sensor
Duplex sensor [3]
Misfeed: Standard Tray (Touch panel
models)
Misfeed: Main Tray (Four-line LCD
models)
Paper stays at the exit sensor
Paper exit sensor
[2]

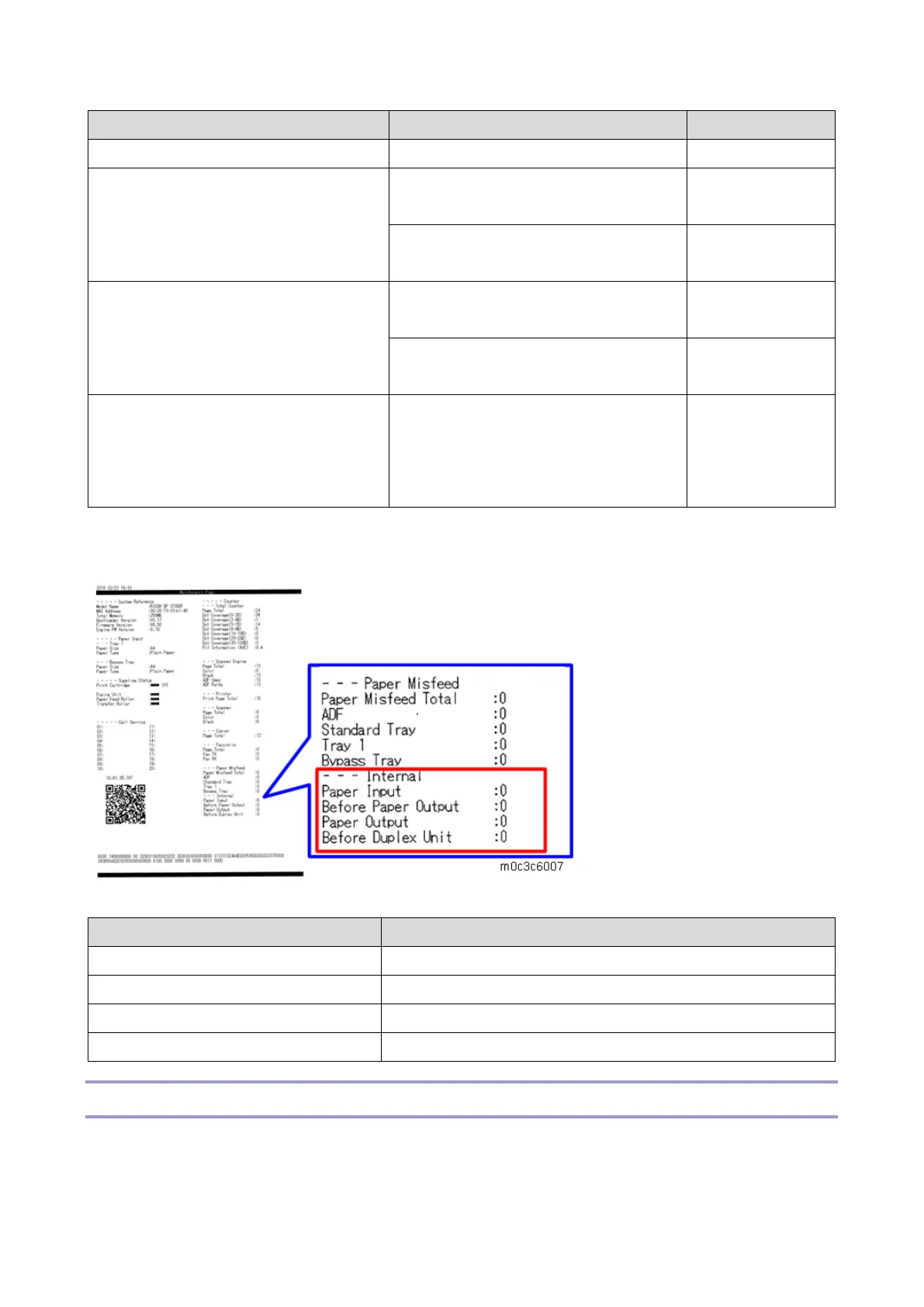

Internal Jam Counters
The following internal jam counters are printed on the maintenance page.
Name on Maintenance Page
Cause
Paper Input
Paper stays at the registration sensor
Before Paper Output
Paper does not reach the exit sensor
Paper Output
Paper stays at the exit sensor
Before Duplex Unit
Paper does not reach the duplex entry sensor
Original Jam (ADF/ARDF)
Jam Sensor Layout
The sensors used for jam detection are shown below.
