Cleaning Procedures
J012/J013/J014 3-64 SM
3.10.4 TRANSPORT BELT CLEANING
Preparation:
Remove platen or ADF. ( 3.2.4, 3.2.5)
Raise the scanner unit to full upright. ( 3.2.7)
Remove: (1) paper cassette, (2) paper output tray, (3) duplex unit (4) flushing gate

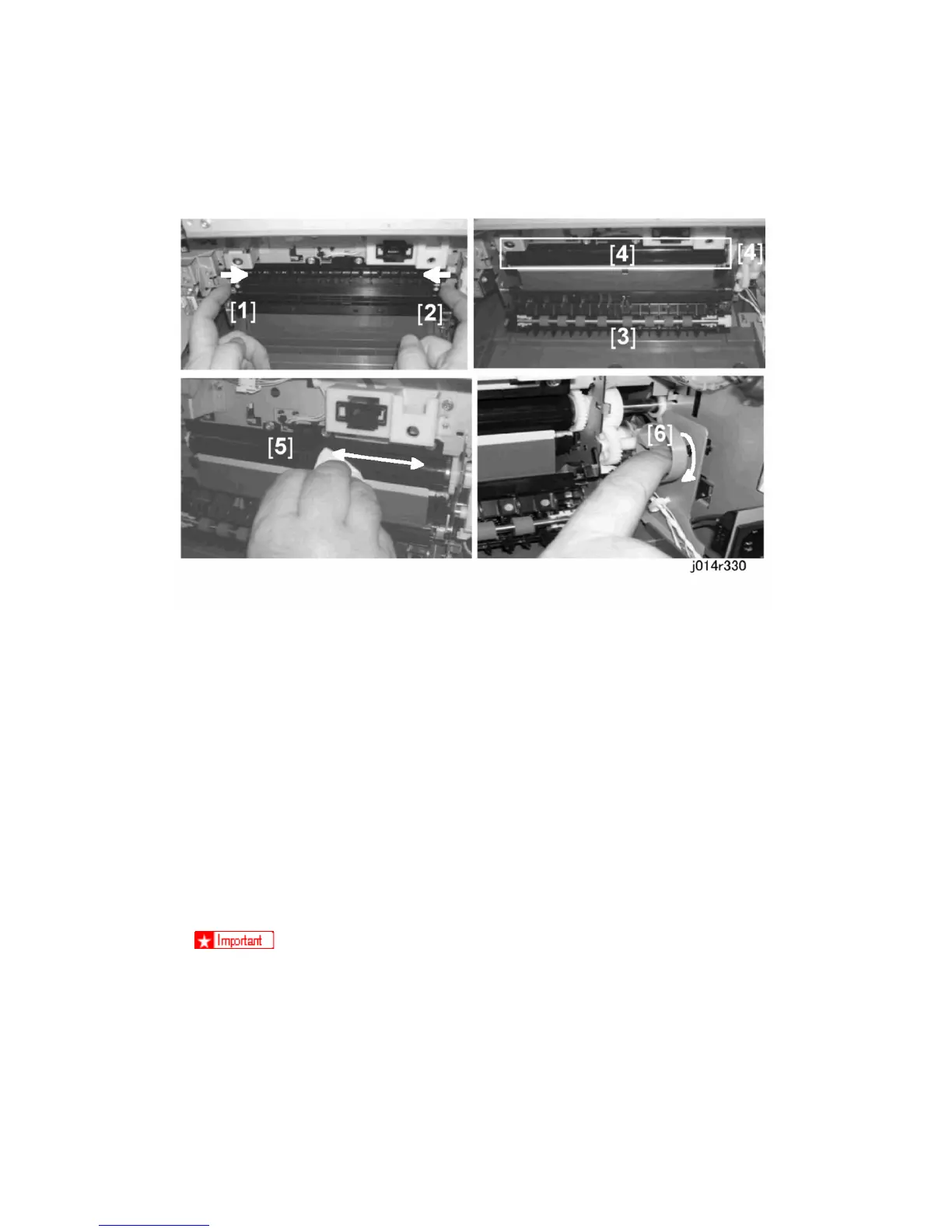

1. Release the left and right locks [1] and [2] (marked "PUSH").
2. Lower the plate [3] to expose the surface of the transport roller [4].
3. Use a dry cloth to wipe the belt [5].
4. Rotate the feed guide [6] to expose the next area of the belt.
5. Repeat Steps 3 and 4 until the entire surface of the belt is clean.
6. Make sure that the entire surface of the belt is completely dry.
Water on the surface of the transport belt could interfere with the operation of
the printer.
