Fusing
M065/M066 4-80 SM
4.9.5 HEATING ROLLER FUSING LAMP
1. Fusing unit ( p.4-74)
2. Fusing lower cover (
p.4-75 "Pressure Roller Fusing Lamp")
3. Cleaning unit (
p.4-74)
4. Fusing upper cover (
p.4-75 "Pressure Roller Fusing Lamp")

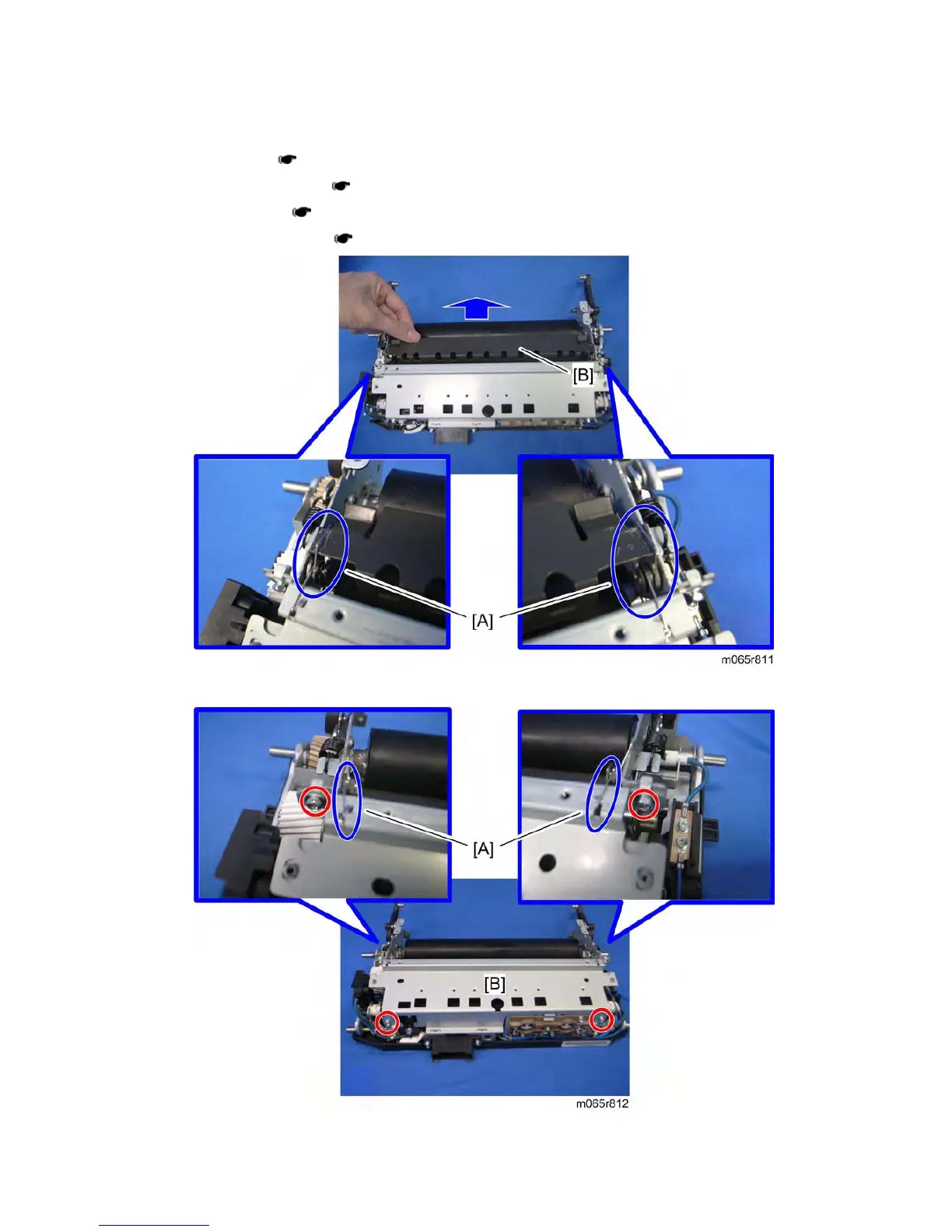

5. Release the pins [A], and then remove the stripper plate [B].
