Electrical Components
M065/M066 4-148 SM

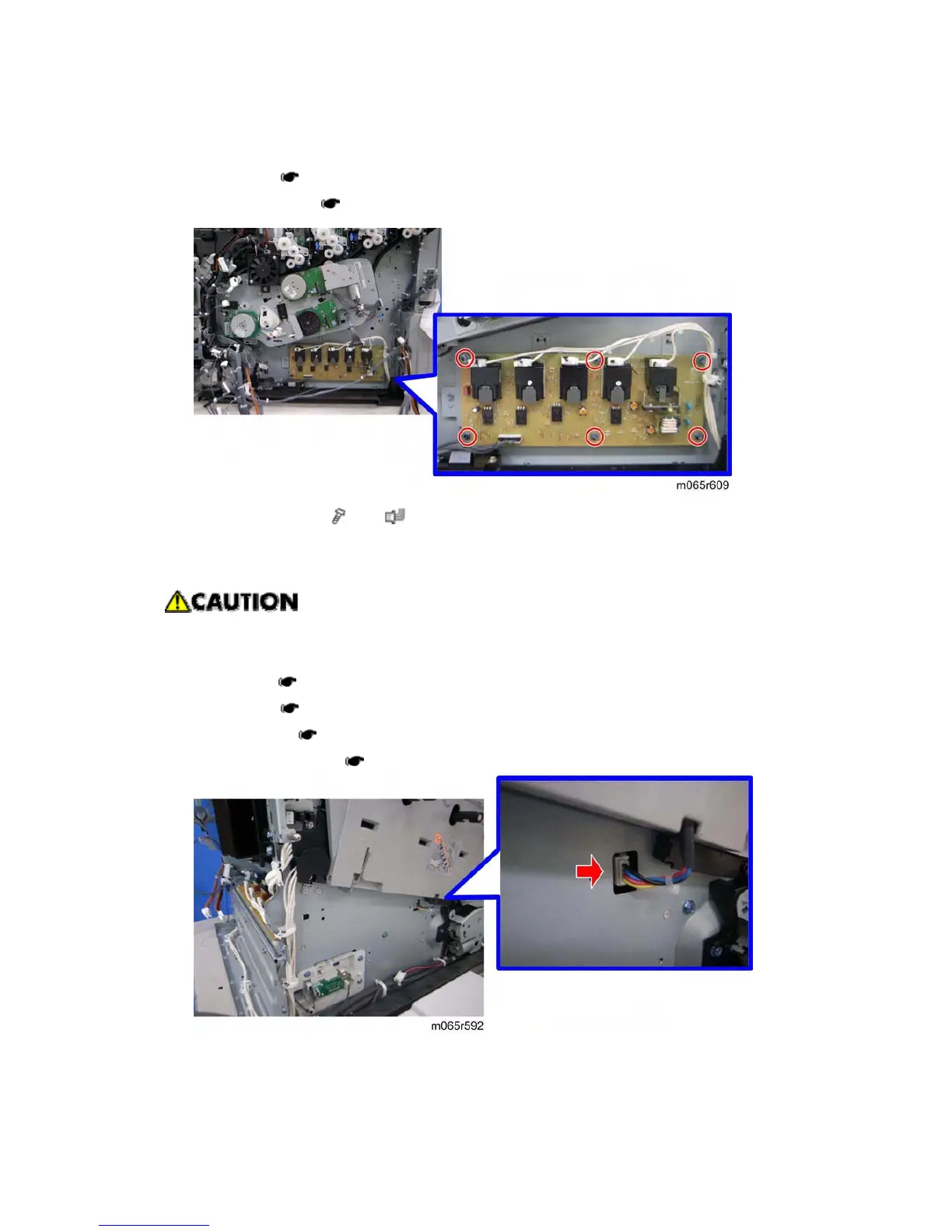

4.13.9 HVPS: T1T2 BOARD
1. Right cover ( p.4-4)
2. BCU with bracket (
p.4-145 "BCU")
3. HVPS: T1T2 board (
x 6, x all)
4.13.10 HVPS: CB BOARD
 If the optional tray heater is installed in the machine, the HVPS: CB bracket may
be still hot. Wait until the HVPS: CB bracket cools before doing this procedure.
1. Rear cover (
p.4-5)
2. Right cover (
p.4-4)
3. Controller box (
p.4-143)
4. Inner left lower cover (
p.4-11)
5. Disconnect the connector.
