Imaging Component Removals
SM 4-87 M126/M127/M128
Replacement
and
Adjustment
4.3.10 RIGHT SCANNER COVER REMOVAL
1. Lift the ADF to the up position.

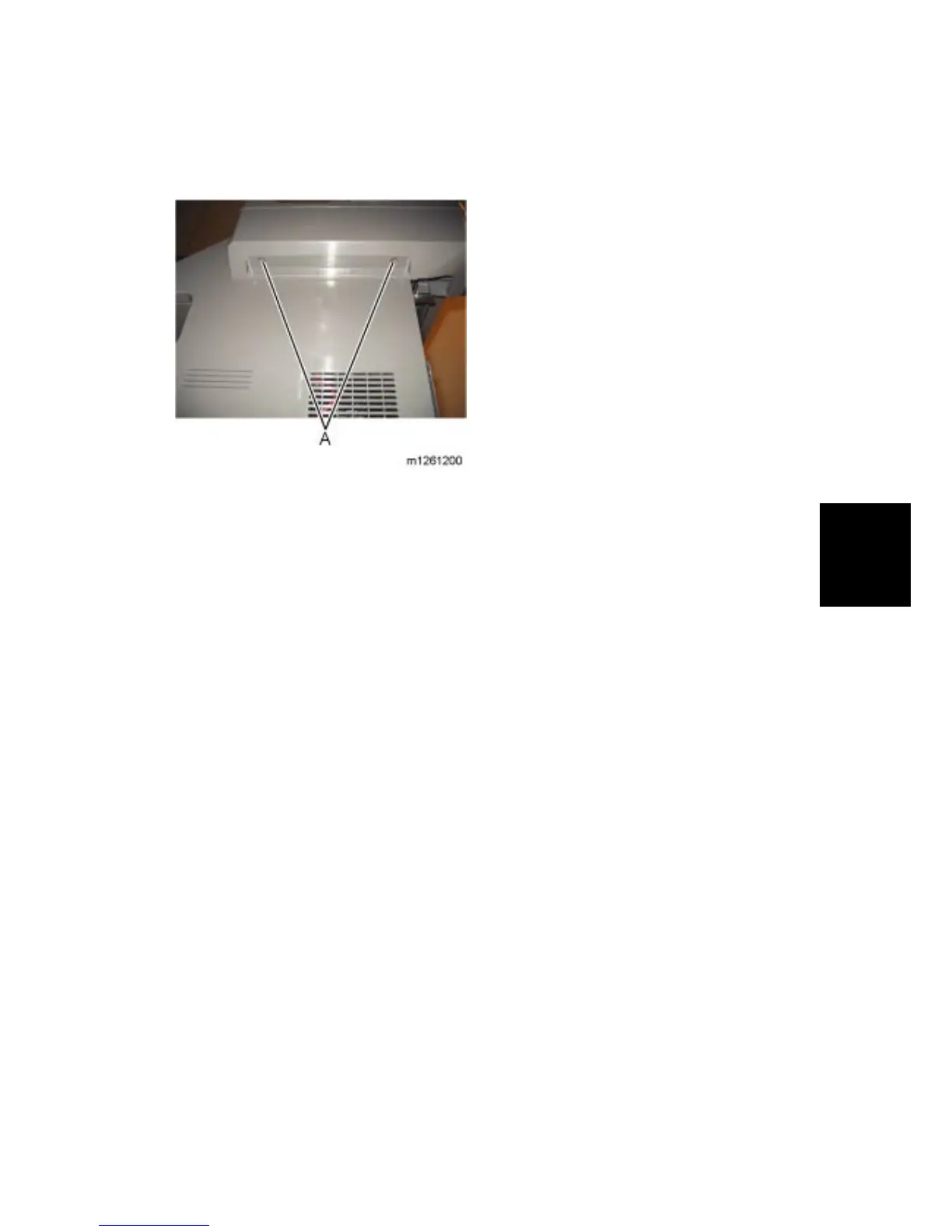

2. Remove the two screws (A) securing the right scanner cover to the flatbed unit.
3. Lift and carefully pull the right scanner cover up and away from the rear of the flatbed.
