Removal Procedures
SM 4-5 M126/M127/M128
Replacement
and
Adjustment
4.2.3 UPPER AND LOWER CARD READER COVER REMOVAL
1. Scanner front cover ( p.4-25 "Scanner Front Cover Removal")
2. Card reader (
p.4-4 "Card Reader Removal").

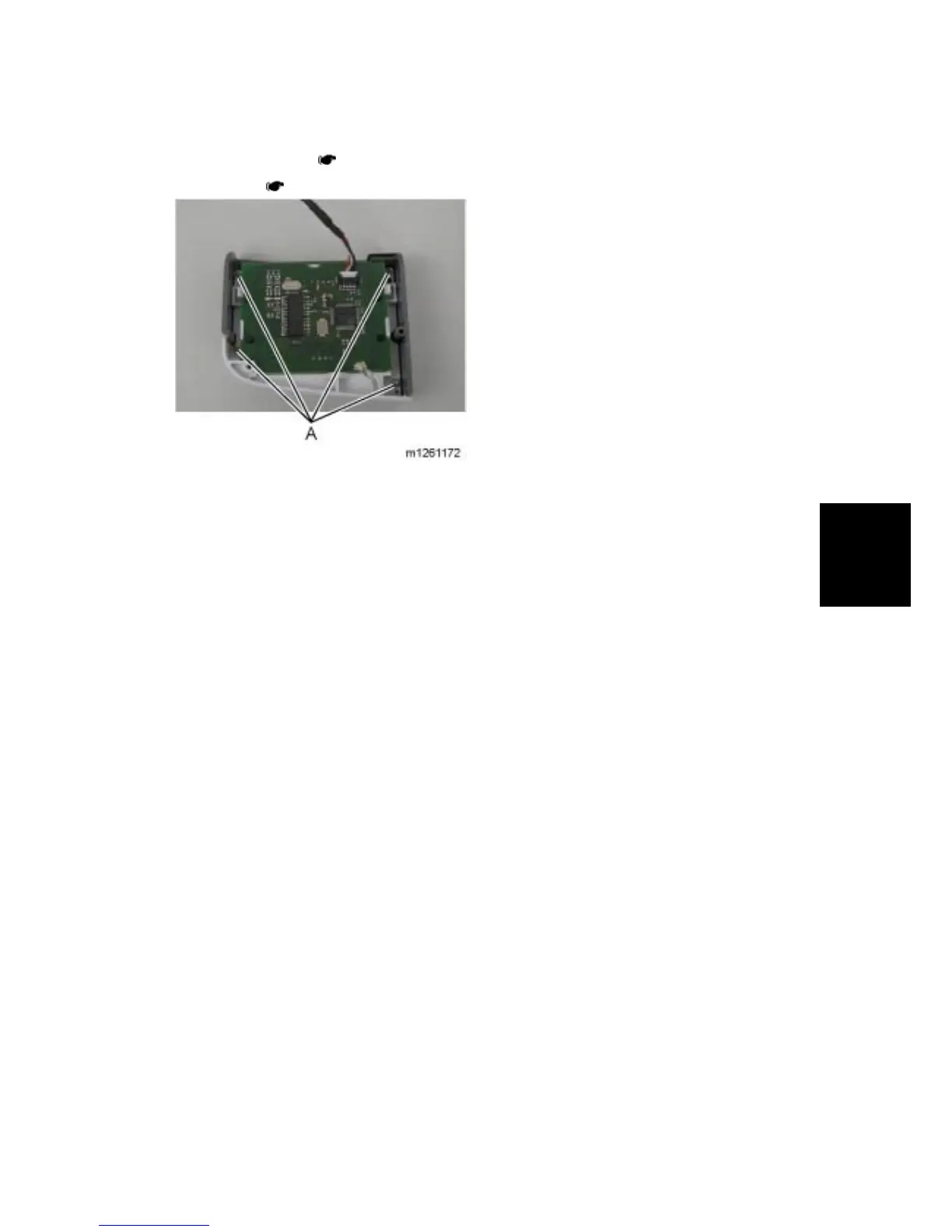

3. Remove the four screws (A) fastening the upper and lower card reader covers.
