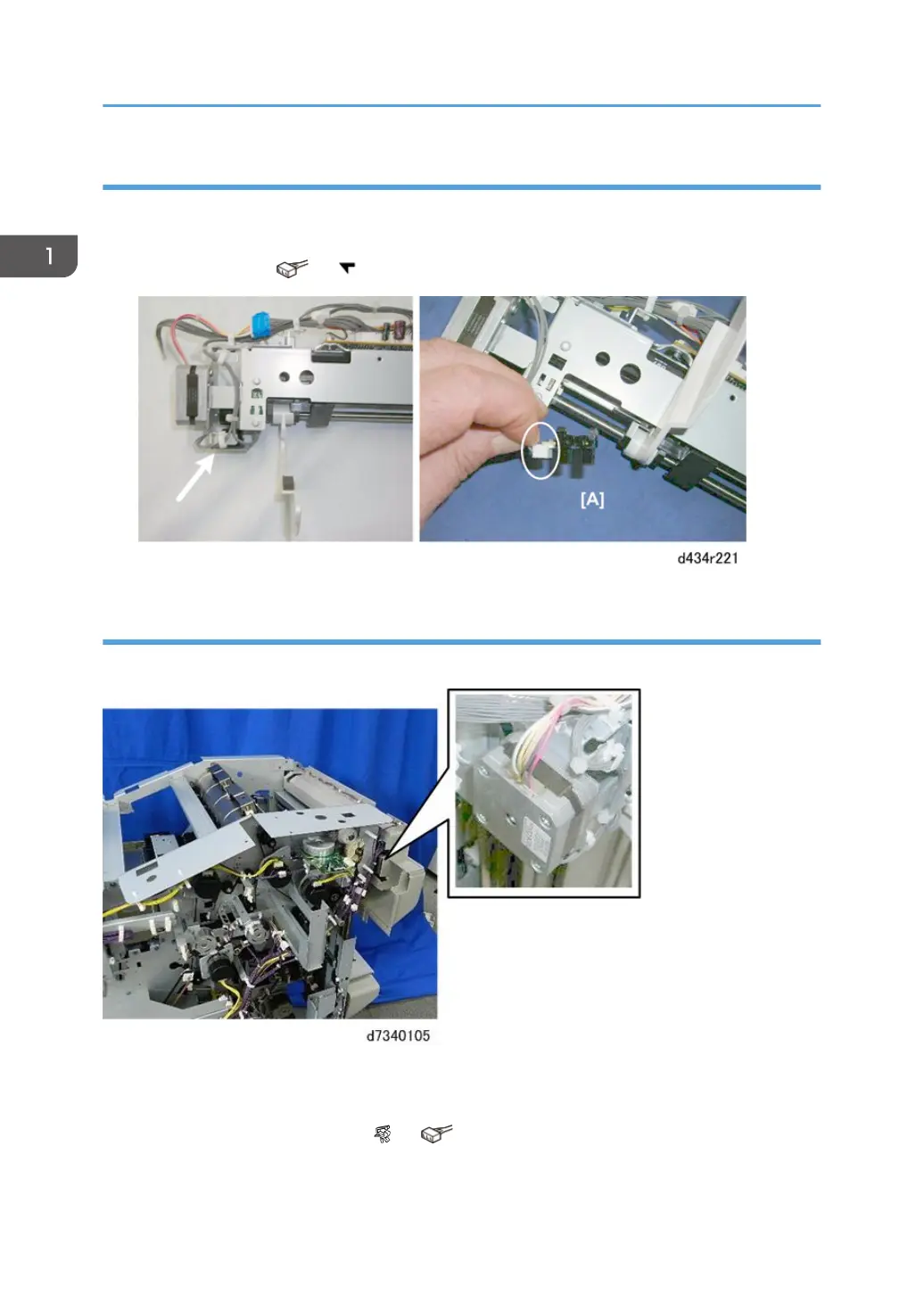

Shift Tray Jogger Fence HP Sensor
Preparation
•
Shift tray jogger unit (page 22)
1.
Remove sensor [A] (
x1,
x5)
Shift Jogger Retraction Motor
This is the motor on the end of the shift tray jogger unit.
Preparation
•
Shift tray jogger unit (page 22)
1.
Disconnect the motor harness [A] (
x1,
x1)
