DISPLAY MENU
The segments regarding the command status
(LED “ON” = command active) and safety status
(LED “ON” = safety device at rest) light up.
The number of manoeuvres appears on the display.
This number always remains visible until you
change the setting. Once 999999 has been
exceeded the lighting up of the decimal point on
the display equals 1 million + the six gure number.
10 sec
PRESS PROG
The status of the security devices TB, FTCI, FTCS
and CSP are always shown on the display
.
Memorising the DIP-SWITCH settings and displaying
the rmware version (“02.”)
PRESS
PROG
PRESS
PROG
PRESS PROG
PRESS PROG
10 s after the last
modication you will
automatically exit the mode
and the selected values will
be saved (eg. 4)
10 sec
10 sec
PRESS PROG
Each time the button is pressed the
number increases (from 1 to 4).
APL = Setting the limited opening space (gate1):
1 = 1/3 of the distance : 2 = half the distance
3 = 2/3 of the distance : 4 = the entire distance
In the "test" mode (activated when the motor has
stopped) it is possible to check the status of the
command and safety devices.
The warning lights will activate once, each time a
“TA-TC-TAL-TD-TB-FTCI-FTCS-CSP” command is
received. To return to the normal mode press the button
again “test” will appear, then wait for 10 seconds.
10 sec
10 sec
PRESS PROG
When the ("TA-TC-TD-TAL-TB- FTCI-FTCS-CSP")
inputs are activated the warning lights will light up.
10 sec
10 s after the last
modication you will
automatically exit the mode
and the selected values will
be saved
(eg. 3)
10 sec
Deceleration time settings
0 (deceration excluded) 1 (min.) 2 - 3 - 4 - 5 max.)
PRESS PROG
Each time the button is pressed
the number increases (from 1 to 3)
.
10 sec
10 s after the last
modication you will
automatically exit the mode
and the selected values will
be saved
(eg. 3)
10 sec
Setting the delay between the gates
1 = minimum gate delay 3 = maximum gate delay
2 = medium gate delay
PRESS PROG
Each time the button is pressed the
number increases (from 1 to 3)
.
PRESS
PROG
PRESS
PROG
Selecting the type of security contact
0 1 2 3 4 5 6 7 8 9
TB N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. 8.2 KΩ 8.2 KΩ
FTCS N.C. N.C. N.C. N.C. 8.2 KΩ 8.2 KΩ 8.2 KΩ 8.2 KΩ N.C. N.C.
FTCI N.C. N.C. 8.2 KΩ 8.2 KΩ N.C. N.C. 8.2 KΩ 8.2 KΩ N.C. N.C.
CSP N.C. 8.2 KΩ N.C. 8.2 KΩ N.C. 8.2 KΩ N.C. 8.2 KΩ N.C. 8.2 KΩ
For the values from A to F see the paragraph “contact selection” on page 12
10 sec
10 sec
PRESS PROG
Each time the button is
pressed the setting changes
(from 0 ... 9 - A ...F).
10 s after the last
modication you will
automatically exit the mode
and the selected values will
be saved
(
eg.
5)
PMT = Motor power setting.
from level 1 (minimum to level 8 (maximum)
PRESS
PROG
10 sec
10 sec
10 s after the last modication
you will automatically exit the
mode and the selected values
will be saved (eg. 3)
SPd= Speed level during deceleration.
1 = minimum speed 2 = maximum speed
PRESS
PROG
10 sec
10 sec
10 s after the last modication
you will automatically exit the
mode and the selected values
will be saved (eg. 2)
10 sec
10 sec
Setting the recovery time for motor 1
1 = minimum recovery 8 = maximum recovery
PRESS PROG
Each time the button is pressed the
number increases (from 1 to 8)
.
10 sec
10 sec
Setting the recovery time for motor 2
1 = minimum recovery 8 = maximum recovery
10 s after the last
modication you will
automatically exit the mode
and the selected values will
be saved
(eg. 4)
10 s after the last
modication you will
automatically exit the mode
and the selected values will
be saved
(eg. 4)
PRESS PROG
Each time the button is pressed the
number increases (from 1 to 8)
.

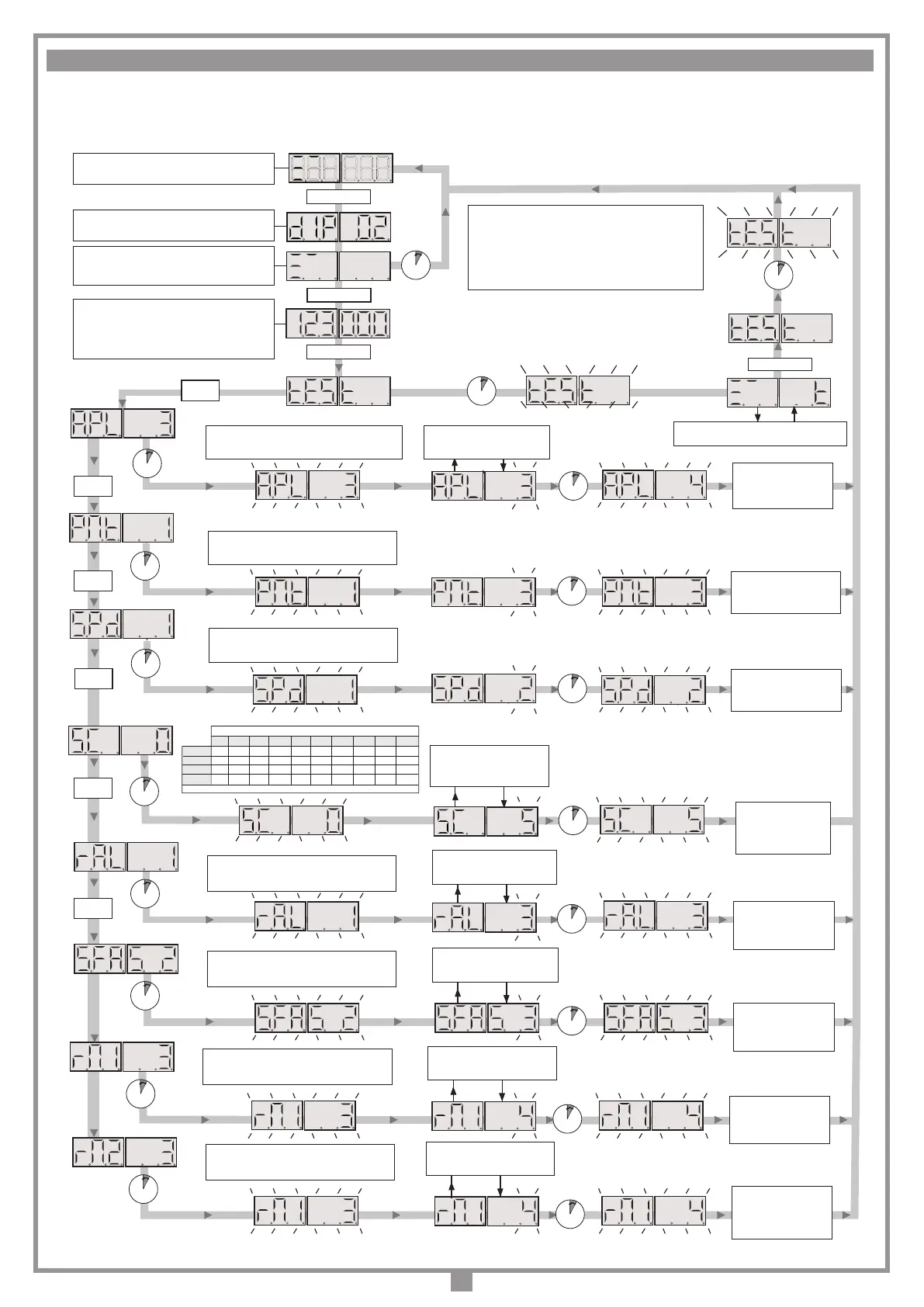

Using the PROG button you can access the following functions in sequence:
- memorising the status of the dip-switches;
- display the status of the command and safety devices;
- display the number of manoeuvres;
- access the "test" mode;
- set the limited opening distance;
- set the motor power level;
- selecting the security contact
(N.C./8.2 kΩ);
- setting the deceleration time;
- setting the gate delay time.
