Value Series Manual 25
B
C
D
E
F
G

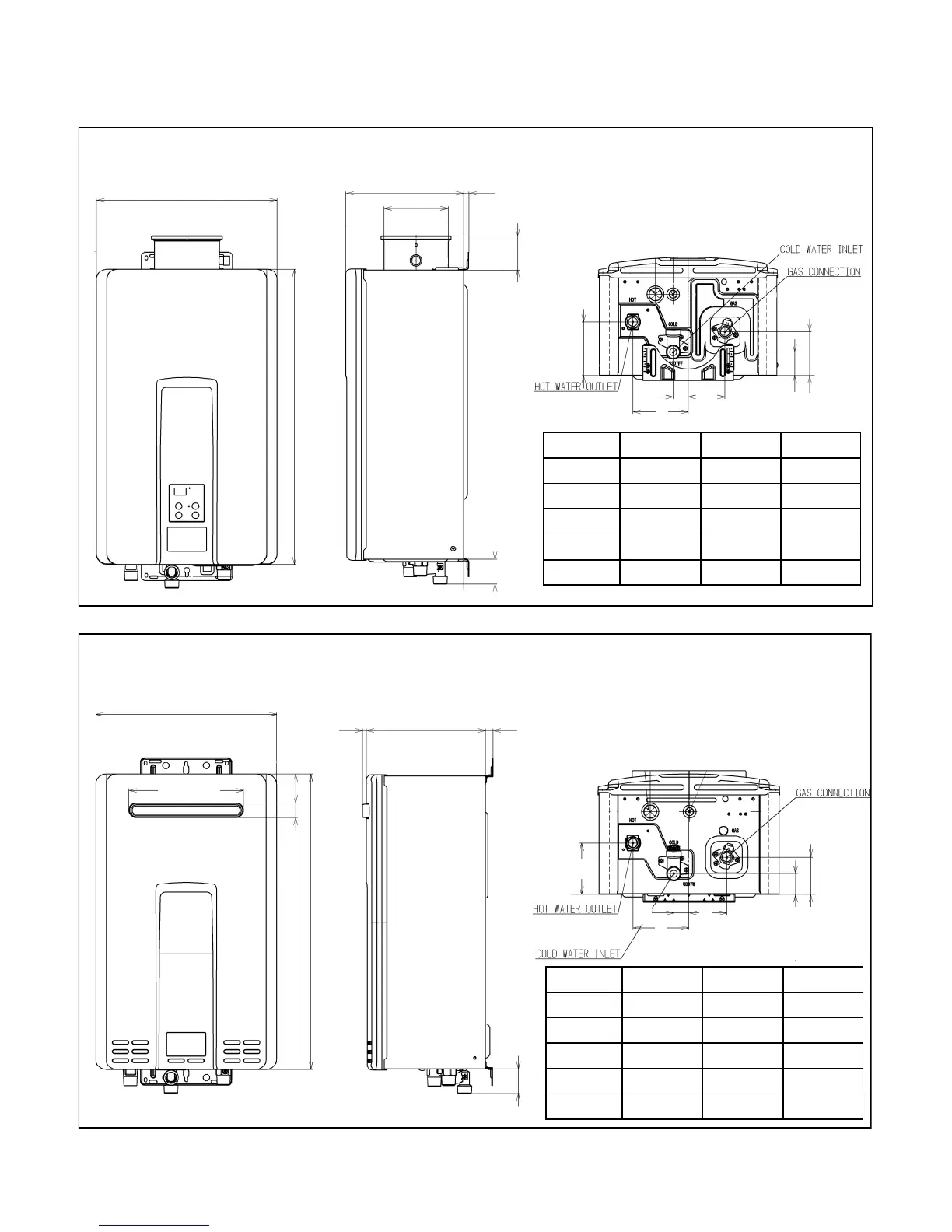

Dimensions
V75i, V65i
V75e, V65e
0.4~1.8(10~45) Variable
14.04 (356.6)
22.95 (583)
9.27 (235.5)
5.05 (128.1)
2.67 (67.8)
A
9.27 (235.5)
22.95 (583)
A
0.28 (7.2)
0.59 (15)
14.04 (356.6)
1.14 (29)
2.23 (56.6)
DIMENSION Inches (mm) DIMENSION Inches (mm)
A (GAS) 1.31 (33.2) D 4.33 (110)
A (COLD) 1.93 (49) E 2.89 (73.3)
A (HOT) 1.35 (34.4) F 1.85 (47)
B 4.21 (106.9) G 3.44 (87.3)
C 1.17 (29.8)
Inches (millimeters)
8.90 (226)
B
C
D
E
F
G
DIMENSION Inches (mm) DIMENSION Inches (mm)
A (GAS) 1.31 (33.2) D 4.33 (110)
A (COLD) 1.93 (49) E 2.91 (73.8)
A (HOT) 1.35 (34.4) F 1.61 (40.8)
B 3.96 (100.7) G 2.87 (73)
C 1.17 (29.8)
