Configure the DeviceNet Network Chapter 8
Set the Node Address of the DeviceNet Scanner

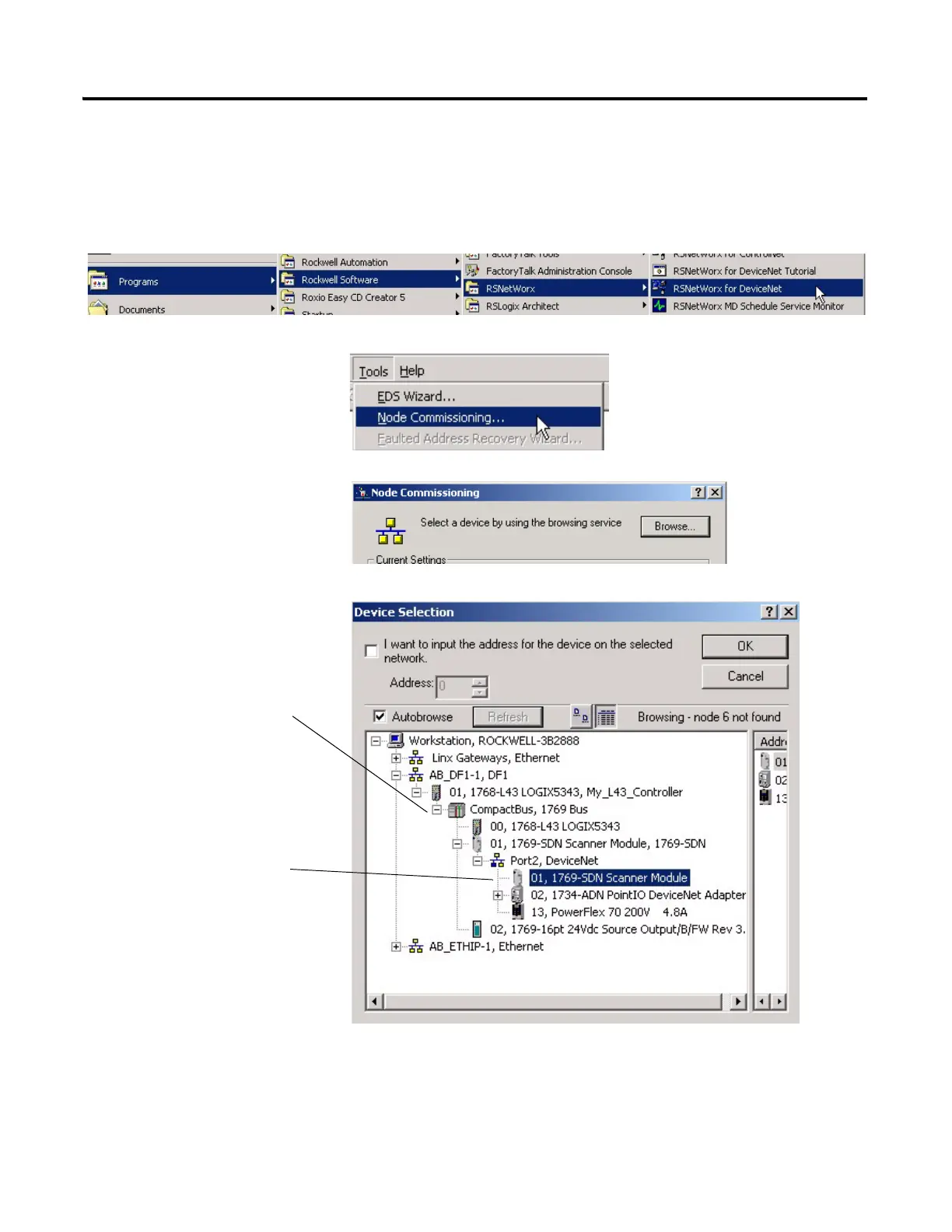

1. Launch RSNetWorx for
DeviceNet software.
2. Select Tools>Node
Commissioning.
3. Click Browse.
4. Under AB_DF1-1,
expand the
CompactLogix Backplane
and the 1769
CompactBus.
5. Expand the 1769-SDN
Scanner Module and the
DeviceNet Port, then
select 1769-SDN Scanner
Module.
6. Click OK.
