ep-70/90 Feb. 2000
22

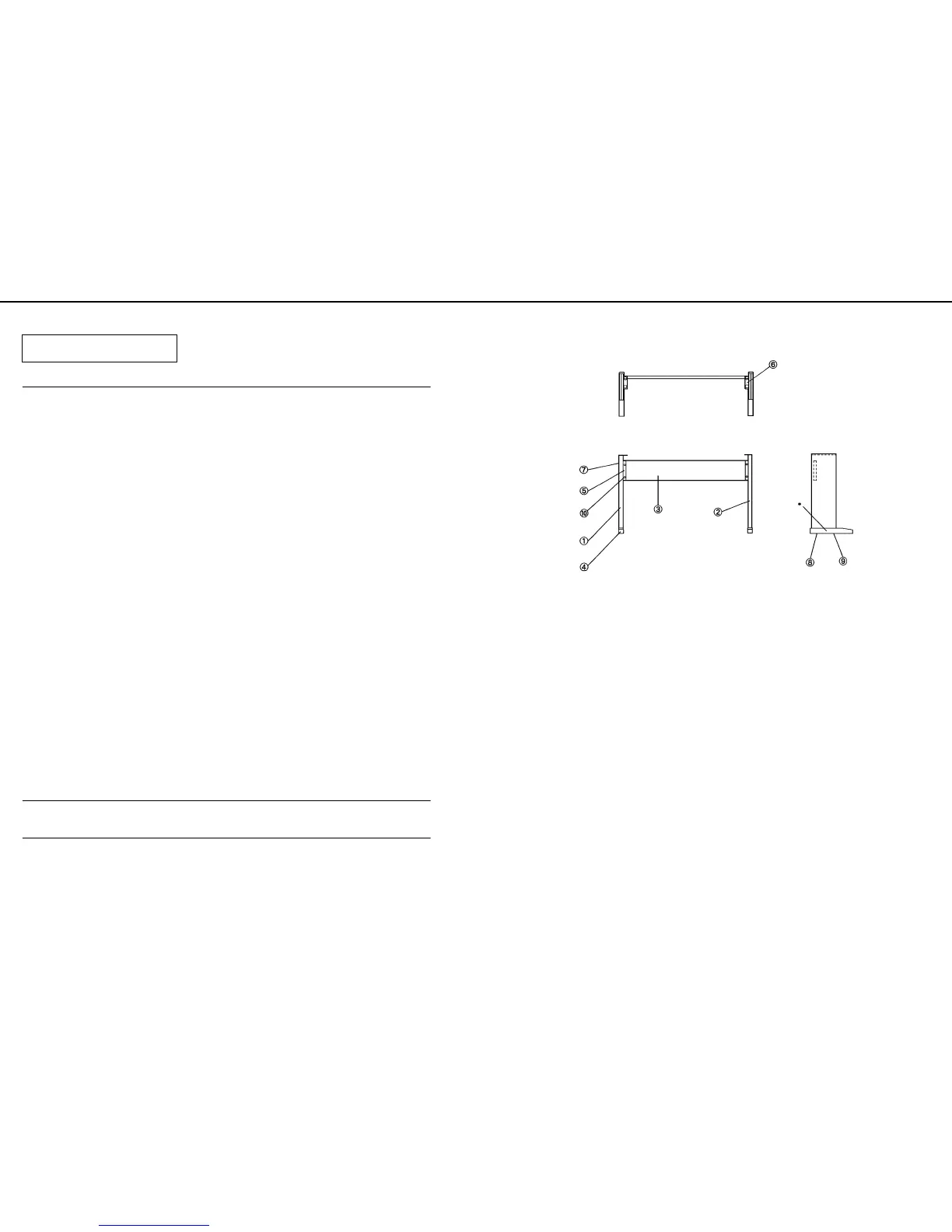

EXPLODED VIEW (STAND)
[PARTS]
No. PART CODE PART NAME Q'ty
q 21125486 SIDE BOARD (L) 1
02127745 SIDE BOARD (L) 1
w
21125487 SIDE BOARD (R) 1
02127756 SIDE BOARD (R) 1
e
21145399 CENTER BOARD for KS-70 1
21145413 CENTER BOARD for KS-90 1
r
21215410 TOE BLOCK 2
t
22125805 CENTER BOARD HOLDER 2
y 22205509 MOUNTING HOLDER 2
40010667 SCREW M4x16 TRUSS TAPPING A BZC 4
u ******** BOLTS M6x40 JBA-0105M 4
i
40013178 SCREW M3.8x57 W57 COURSE SLED ZU 4
o 40013167 SCREW M3.8x28 W28 COURSE SLED ZU 2
!0
40010656 SCREW M4x12 TRUSS TAPPING A BZC 4
PARTS LIST (STAND)
Note : The parts marked # are new (initial parts).
注意 : # マークの付いた部品は新規部品です。
CASING
/ ケース
******** CENTER BOARD ASSY for KS-70 1
NOTE: 'CENTER BOARD ASSY' includes the following parts.
注意 : 補修用 CENTER BOARD ASSY は、下記の部品を含みます。
21145399 CENTER BOARD 114-399 for KS-70 1
22125805 CENTER BOARD HOLDER 212-805 2
40010656 SCREW M4x12 TRUSS TAPPING A BZC for CENTER BOARD HOLDER 4
******** CENTER BOARD ASSY for KS-90 1
NOTE: 'CENTER BOARD ASSY' includes the following parts.
注意 : 補修用 CENTER BOARD ASSY は、下記の部品を含みます。
21145413 CENTER BOARD 114-413 for KS-90 1
22125805 CENTER BOARD HOLDER 212-805 2
40010656 SCREW M4x12 TRUSS TAPPING A BZC for CENTER BOARD HOLDER 4
******** SIDE PANEL L 1
NOTE: 'SIDE PANEL' includes the following parts.
注意 : 補修用 SIDE PANEL は、下記の部品を含みます。
21125486 SIDE BOARD (L) 112-486 for KS-70 up tp S/No.ZM80999 1
( Thickness : 30 mm ) for KS-90 up to S/No.ZM83499
and S/No.ZM93700 - ZM94099
02127745 SIDE BOARD (L) for KS-70 S/No.ZN31000 -up 1
( Thickness : 25 mm ) for KS-90 S/No.ZM83500 - ZM83699
and S/No.ZM94100 -up
21215410 TOE BLOCK 121-410 1
22205509 MOUNTING HOLDER 220-509 1
40010667 SCREW M4x16 TRUSS TAPPING A BZC for MOUNTING HOLDER 2
40013167 SCREW M3.8x28 W28 COURSE SLED ZU for TOE BLOCK 1
40013178 SCREW M3.8x57 W57 COURSE SLED ZU for TOE BLOCK 2
******** SIDE PANEL R 1
NOTE: 'SIDE PANEL' includes the following parts.
注意 : 補修用 SIDE PANEL は、下記の部品を含みます。
21125487 SIDE BOARD (R) 112-487 for KS-70 up tp S/No.ZM80999 1
( Thickness : 30 mm ) for KS-90 up to S/No.ZM83499
and S/No.ZM93700 - ZM94099
02127756 SIDE BOARD (R) for KS-70 S/No.ZN31000 -up 1
( Thickness : 25 mm ) for KS-90 S/No.ZM83500 - ZM83699
and S/No.ZM94100 -up
21215410 TOE BLOCK 121-410 1
22205509 MOUNTING HOLDER 220-509 1
40010667 SCREW M4x16 TRUSS TAPPING A BZC for MOUNTING HOLDER 2
40013167 SCREW M3.8x28 W28 COURSE SLED ZU for TOE BLOCK 1
40013178 SCREW M3.8x57 W57 COURSE SLED ZU for TOE BLOCK 2
PACKING
/ 梱包材
# 01902845 PACKING CASE for KS-70 1
# 01902856 PACKING CASE for KS-90 1
ACCESSORIES (STANDARD)
/ 標準付属品
# 40343989 LEAFLET MANUAL 1
22565689 SCREW SET 1
NOTE: 'SCREW SET' includes the following parts.
注意 : 補修用 SCREW SET は、下記の部品を含みます。
******** BOLTS M6x40 JBA-0105M 4
******** TRIANGLE DRIVER 1
Note: "*" Serial numbers for the KS-70/90 SIDE BOARD (L) inside TOE BLOCK.
注意：サイドボード（L）側 TOE BLOCK 下側の " ＊ " の部分のシリアルシール（シリアルナンバー）を確認してください。
／パーツリスト(スタンド) ／分解図（スタンド）
