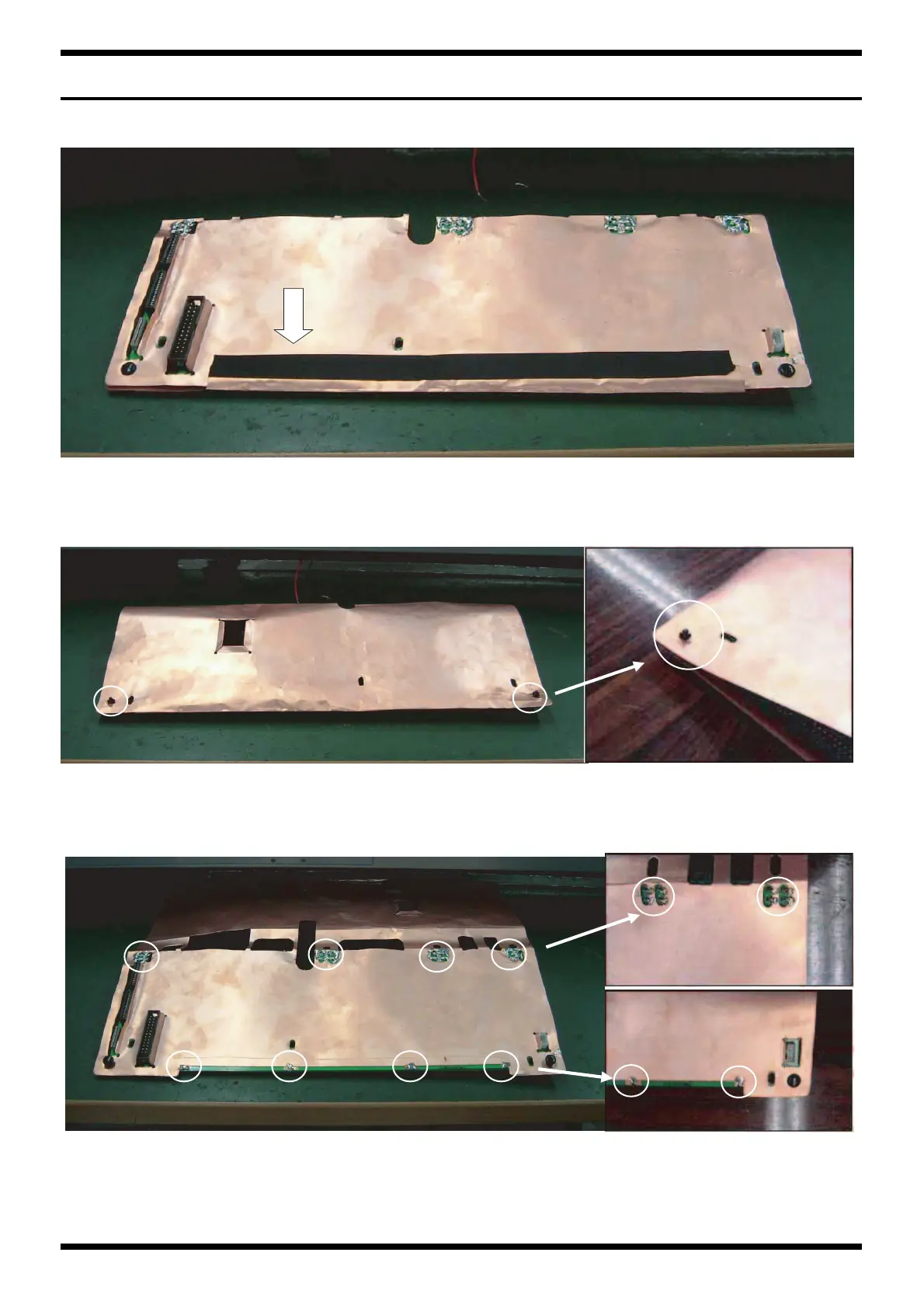

DISASSEMBLY PROCEDURE
fig.sld-peel.eps
1.
Peel off the Acetate tape of Shield sheet.
fig.sld-rivet.eps
2.
Undo the Snap Rivet
fig.sld-unsld.eps
3.
Removal solder of the Shield sheet and Main board solder section.
When attach the Shield sheet in the Main board, please following up with above reverse procedure.
After certainly to attach the Shield sheet then set Main board into the GW-7 body. Grease spreading position.
