Roland SDE-3000 Service Notes

SDE-1000/3000
FEB. 5,1984
12 3 4 5 6

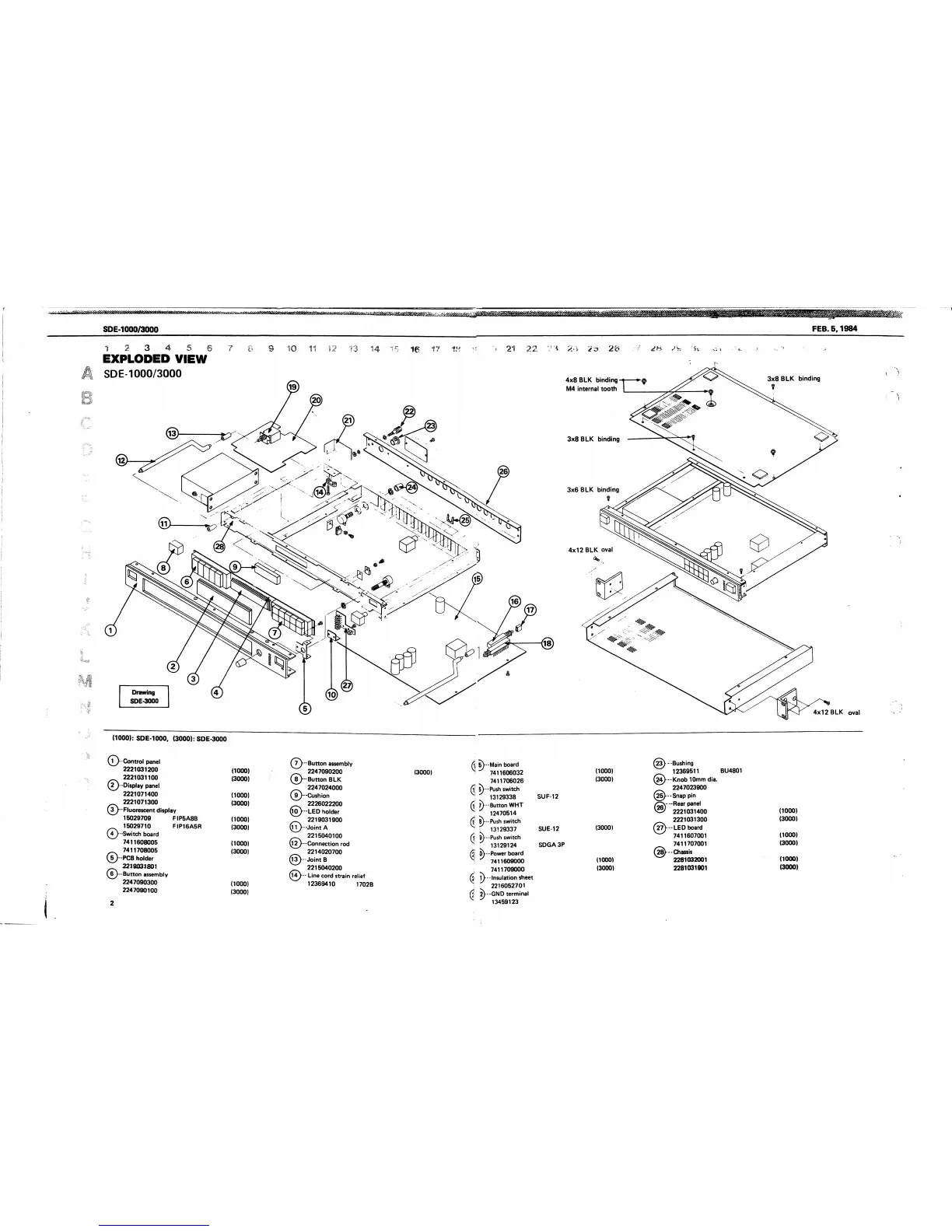

EXPLODED VIEW
SDE-1000/3000
7 8 9 10 11 \2 13 14
16 17
21 22 2H 24 2^ 2b
4x8 BLK binding-^
M4 internal tooth
3x8 BLK binding
3x6 BLK binding
4x12 BLK oval
3x8 BLK binding
f
4x12 BLK oval
(1000): SDE-1000, (3000): SDE-3000
Control panel
2221031200
2221031100
-Display panel
2221071400
2221071300
-Fluorescent display
15029709 FIP5A8B
15029710
(4)-Switch board
7411608005
7411708005
(s) -PCB holder
221903JB01
Q*y~ Button assembly
2247090300
2247090100
FIP16A5R
(1000)
(3000)
(1000)
(3000)
(1000)
(3000)
(1000)
(3000)
(1000)
(3000)
&■
^7 J—Button assembly
2247090200
Button BLK
2247024000
•-Cushion
2226022200
(jo}-LED holder
2219031900
^Jy-Joint A
2215040100
(12)— Connection rod
2214020700
(m- Joint B
2215040200
(i4)— Line cord strain relief
12369410 1702B
(3000)
-Main board
7411606032
7411706026
'li 5}-Push switch
13129338
-Button WHT
12470514
-Push switch
13129337
-Push switch
13129124
--Power board
7411609000
7411709000
• - Insulation sheet
2216052701
--GND terminal
13459123
SUF-12
SUE-12
SDGA3P
