Roland V-4EX User Manual

22
Connecting External Equipment

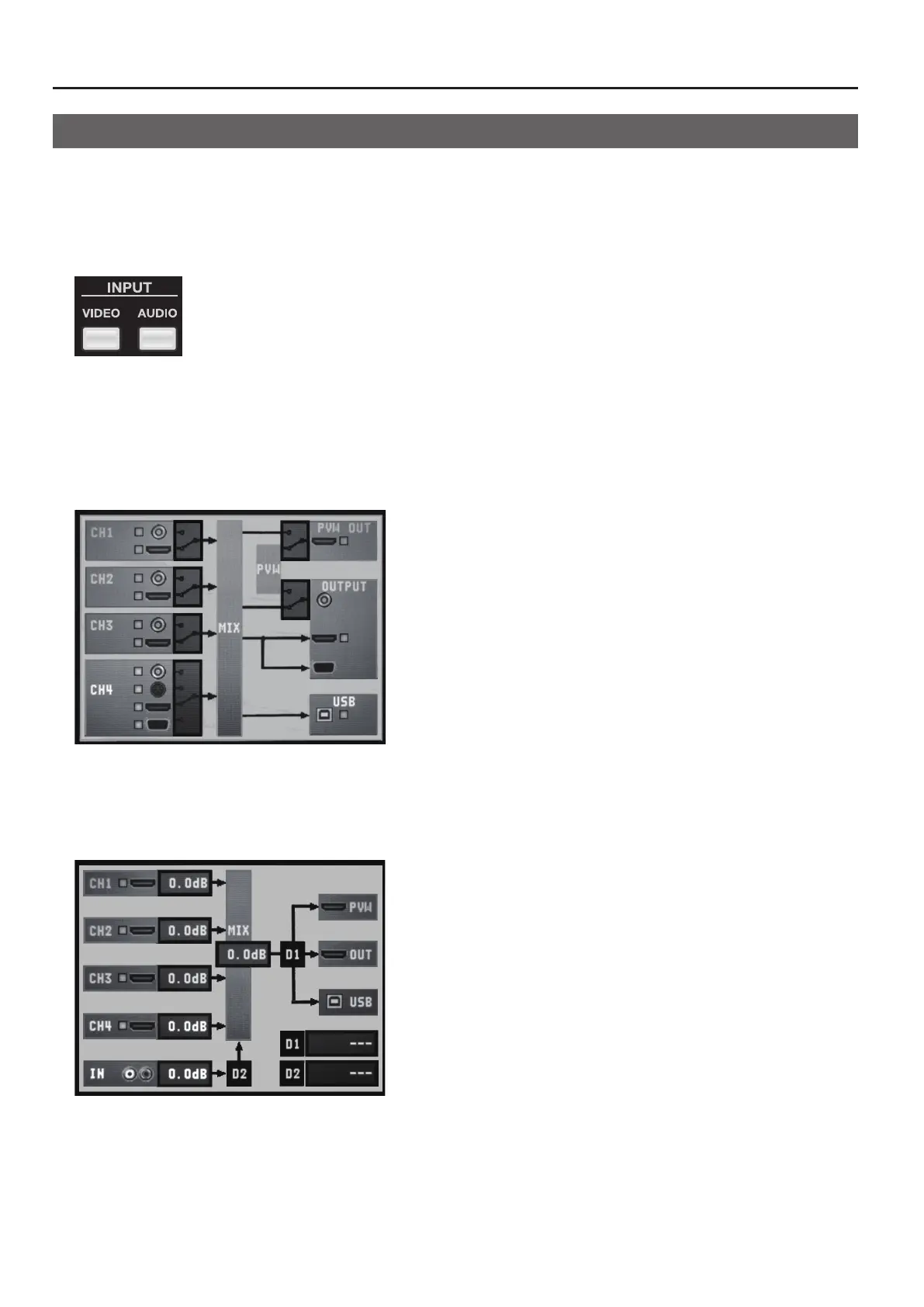

Checking the Connections
You can check the connections of input and output equipment at the screens described below. To access the checking screens,
press the [VIDEO] button or [AUDIO] button in INPUT section.
* Depending on the input and output connectors used, some connections cannot be checked.
* The checking screen is displayed over the picture on the monitor. You can hide the picture on the monitor by pressing the lighted MONITOR
button to make it go dark.
g.input-buttons.eps
Video Input/Output Equipment
Pressing the [VIDEO] button in INPUT section displays the screen shown below. A yellow box next to the icon for a connector
indicates that the connection is recognized by the V-4EX. If the box is gray, no connection is detected.
* The recognition status (grey or yellow) of CH4’s RGB/Component connector is displayed only while the connector is selected. When it is not
selected, the display is grey regardless to the recognition status.
g.video-connect-screen.eps
Audio Input/Output Equipment
Pressing the [AUDIO] button in INPUT section displays the screen shown below. A yellow box next to the icon for a connector
indicates that the connection is recognized by the V-4EX. If the box is gray, no connection is detected.
g.audio-connect-screen.eps

Roland V-4EX Specifications

General

On/off switch	Yes
Product color	Black
Rack mounting	No
Output current	2 A
Power source type	AC
Video resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 pixels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL
BNC input ports	4
Number of HDMI outputs	2
VGA (D-Sub) input ports	1
Display type	LCD
Display resolution	320 x 240 pixels

Weight and Dimensions

Depth	296 mm
Width	225 mm
Height	105 mm
Weight	2600 g
