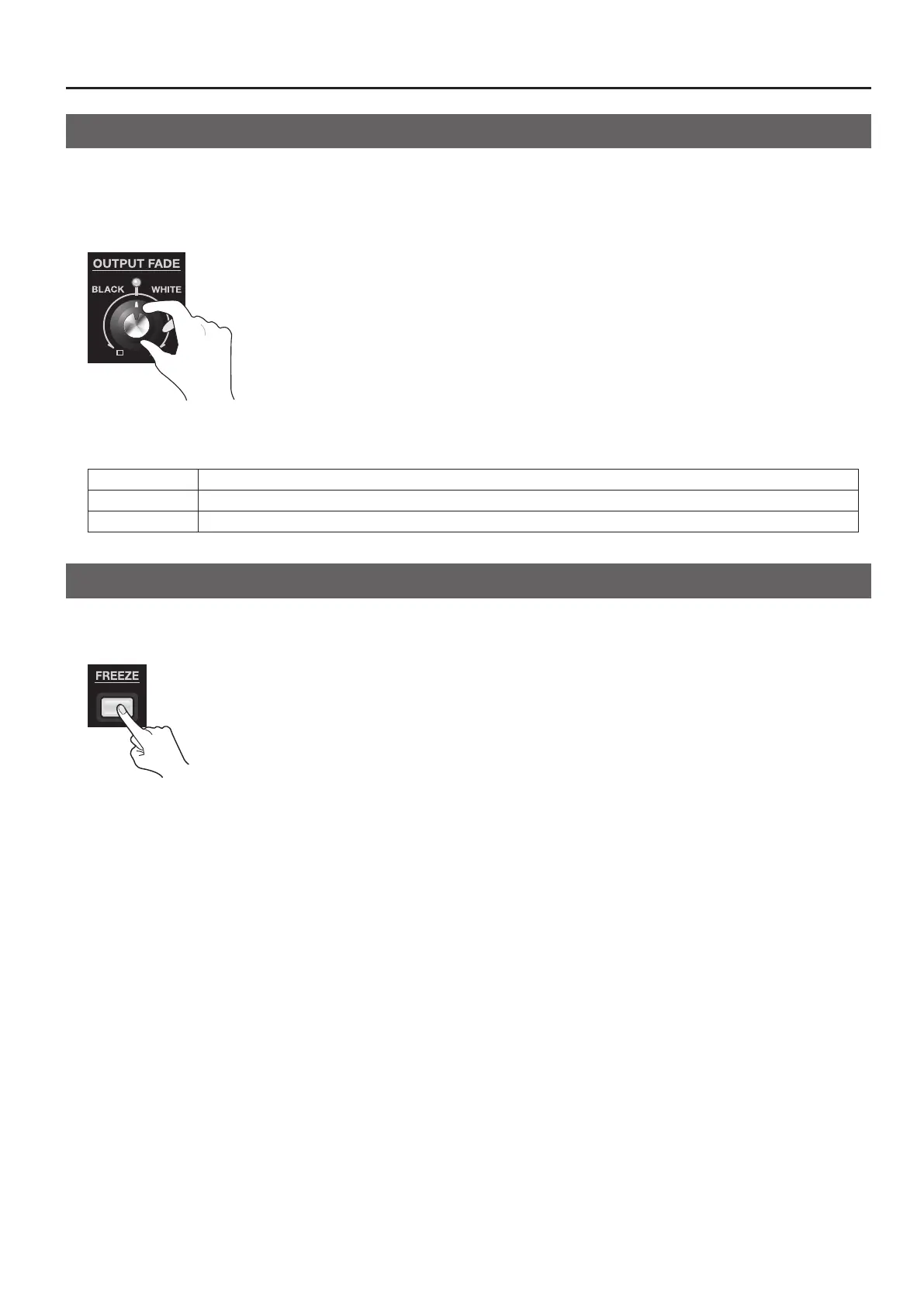

Roland V-4EX User Manual

31
Basic Operations
Applying Fade to Final Output
You can use the [OUTPUT FADE] dial to apply a fade to the V-4EX’s nal output. Applying a fade makes the output video gradually
disappear (fade-out) or appear (fade-in). Turning the dial counterclockwise applies a fade-out to black, and turning it clockwise
applies a fade-out to white. The indicator above the dial ashes while the fade is being applied. Returning the dial to its center
position makes the indicator light up continuously and returns the unit to 100% output.
g.fade-dial.eps
About the Output Fade Modes
You can select a mode from below by selecting the [OUT-FADE] area of BPM setting screen and turning the [VALUE] dial.
Manual This is the default setting. Apply a white or black fade by turning the dial.
Auto A fade-in/fade-out is repeated automatically. The speed varies according to the position of the dial.
No Ctrl Dial operation is disabled.
Freezing the Final Output
You can stop (freeze) the video being output. Pressing the [FREEZE] button freezes the picture being output and makes the button
light up. Press the button again to end the freezing.
g.freeze-button.eps

Roland V-4EX Specifications

General

On/off switch	Yes
Product color	Black
Rack mounting	No
Output current	2 A
Power source type	AC
Video resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 pixels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL
BNC input ports	4
Number of HDMI outputs	2
VGA (D-Sub) input ports	1
Display type	LCD
Display resolution	320 x 240 pixels

Weight and Dimensions

Depth	296 mm
Width	225 mm
Height	105 mm
Weight	2600 g
