Setting Up the Kit
fig.P-005.e
1. Turn off the power of all devices before you make connections.
To prevent malfunction and/or damage to speakers or other devices, always turn down the
volume, and turn off the power on all devices before making any connections.
2. Connect the OUTPUT L(MONO) and R jacks on the rear panel to your audio system or amp.
Headphones should ONLY be connected to the PHONES jack.
3. Connect the supplied AC adaptor to the AC adaptor jack.
4. Plug the AC adaptor plug into a power outlet.
The TD-3’s MIX IN Jack allows you to play along with a CD or other audio sources (p. 34).

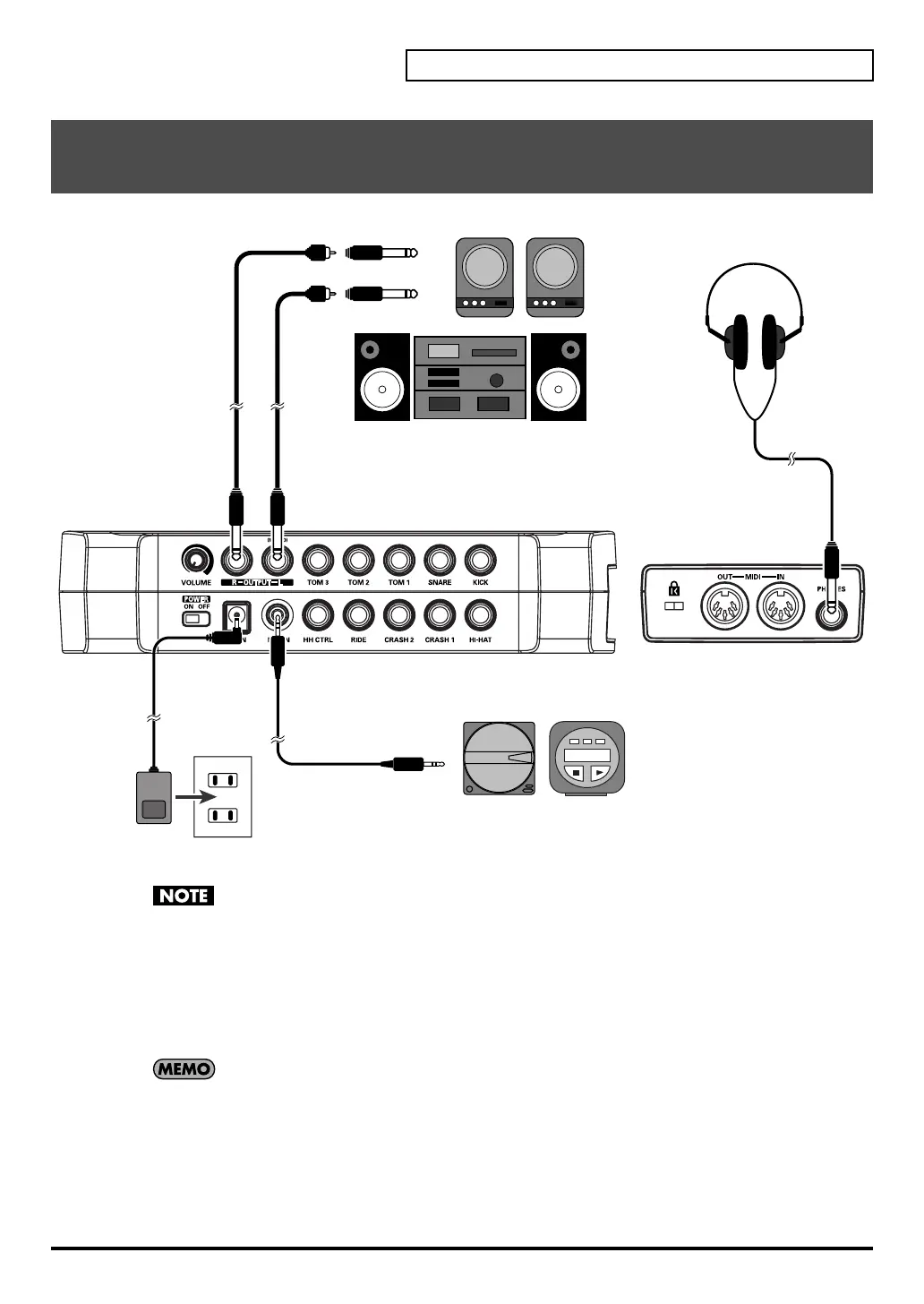

Connecting Headphones, Audio Equipment, Amps,
and Other Gear
L
R
Stereo miniature phone type
CD/MD player, etc.
Phone type
Stereo phone type
