Touch Screen Calibration
Pressing [BANK/NUMBER 2], the display visualizes:
Note: Once you enter the Calibration test, you can not exit unless you carry out the calibration operations.

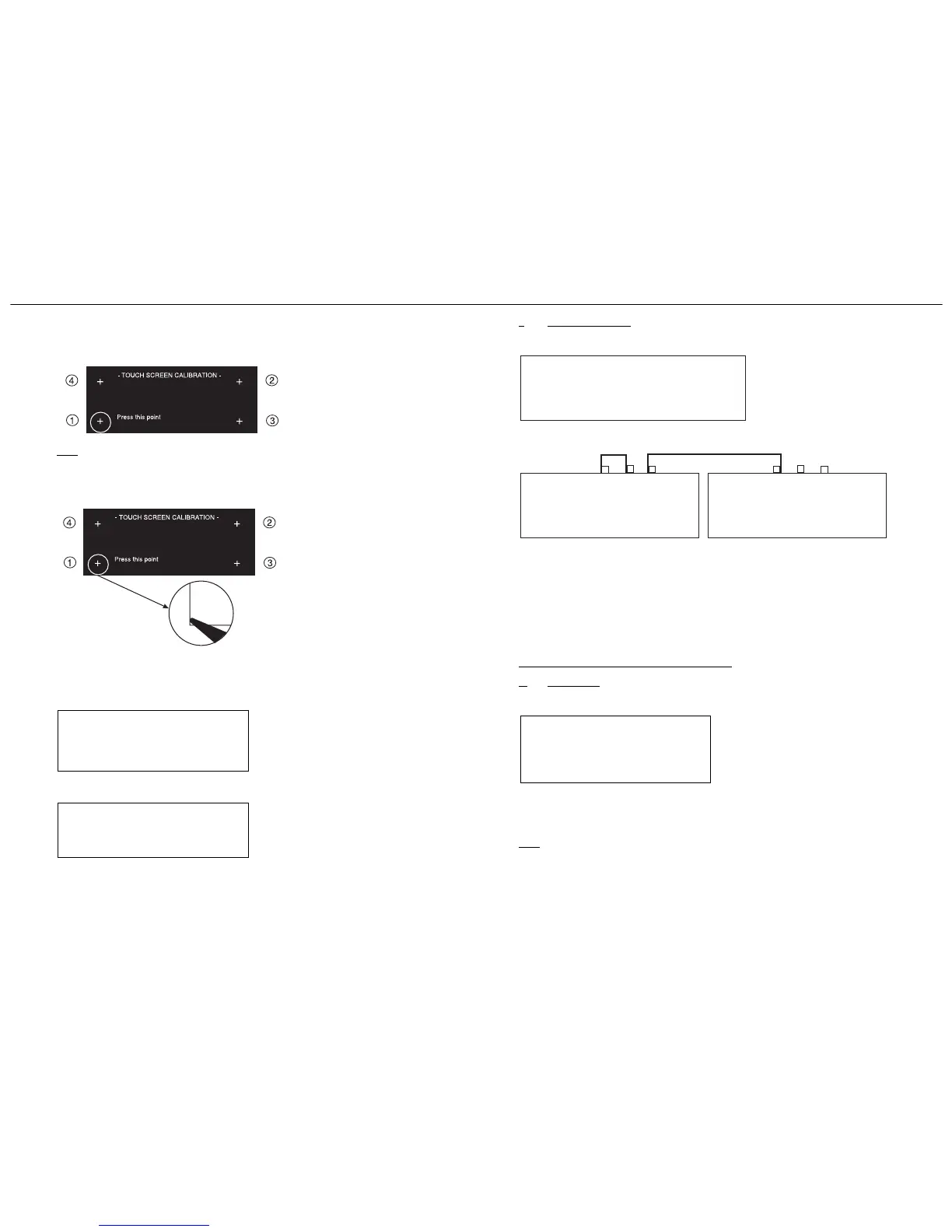

Calibrate the Touch Screen position this way.
To perform this test, a normal pen is required. Touch the lower corner of each slit with the pen, according to
the numbering shown in the following picture. When the system recognizes the touch, "+" will change into "O".
This way, the writing "Touch Me" will appear to show the correct order, so please follow this indication. During
the calibration, do not touch any point except "Touch Me".
After touching the four points indicated, the calibration ends and the display will show one of the following wri-
tings:
When the calibration fails, the following display will appear.
In case of failure, you have to carry out the calibration again.
Press the [BANK/NUMBER 5] button to go to the next test.
NG. Calibration
Calibration OK
Press BANK5 to exit
6 MIDI & THRU test
Pressing [BANK/NUMBER 8] button, the display shows:
How to connect the cables to test the MIDI sockets:
IN/OUT Connection Midi/IN connection
In MIDI test mode, connect the MIDI cables as shown above.
Make sure that the writing OK or ERROR appears on the VA-3 display.
Test the VA-3 MIDI /Out output, leaving the MIDI/ Out cable inserted and connecting it to the MIDI/ IN socket
of an external instrument. If the MIDI/Out socket works, you will hear intermittent sounds coming from the
external instrument connected.
To exit, press the [BANK/NUMBER 5].
Second group of test => SUPER TONES
1. FLASH test
Press the [SUPER TONES 1] button, the display shows:
The display visualizes the 24 blocks written and then verified in the flash. OK will be visualized if everything
works properly. ERROR will be visualized if there are any anomalies.
To exit, press the [BANK/NUMBER 5].
Note: Check that in the Main Menu an asterisk (*) is present beside the writing "Flash Test" meaning that this
test has been already carried out correctly.
FLASH TEST
Writing Block 0/24
Verifying Block 0/24
Flash OK or Error
Press BANK 5 to exit
In Out Thru
External Instrument
In Out Thru
Rear side of VA-3 bottom cabinet
MIDI TEST
Connect Midi - In < - - > Midi - Out
< OK or Error >
Press BANK5 to exit
