7—Mixer Views
72 www.Roland.com Roland VS-2000 Owner’s Manual, Version Two Addendum

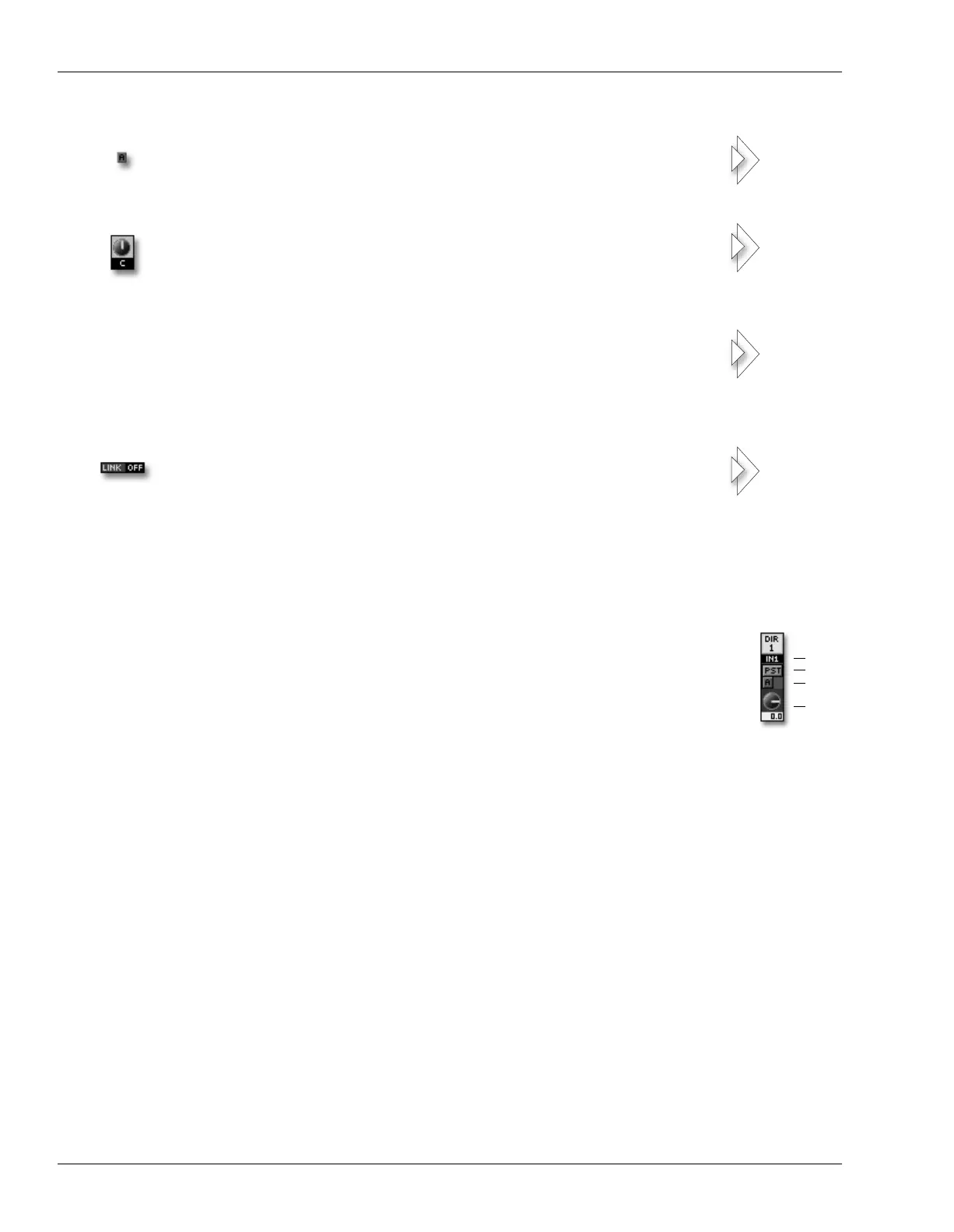

6. AUTOMIX STATUS (A) Button
7. PAN Knob
8. Channel Fader
9. LINK Switch
Master Block Strips
The Master Block strips contain Direct path parameters (
Owner’s Manual
Page 208) and
Aux and FX bus control (
Owner’s Manual
Page 203).
Direct path Parameters
1. Source
Click Source and choose the signal you want to assign to the Direct path.
2. Pre/Post Switch
This sets the Direct path to receive a channel’s signal before or after the channel fader.
3. AUTOMIX STATUS (A) Button
When Automix is on, repeatedly click this button to set the Direct path’ Automix status.
4. Final Level Knob
Drag this knob up or down to set the final level of the Direct path.
When Automix is turned on, repeatedly click the AUTOMIX STATUS
button to set the channel’s Automix status.
Set the stereo position of the channel in the main MASTER bus mix by
dragging the PAN knob up or down as desired.
The position of the channel fader sets the level of signal coming out of
the channel. The channel’s level is displayed below the fader.
LINK combines the CH EDIT ChLink and F.LINK parameters. Click
to the right of “LINK” and select the desired type of linking from the
pop-up menu, or turn off linking. The LINK switch occupies the
combined lower edge of both of the channels it controls.
343
155
152
150, 154
1.
2.
3.
4.
