18

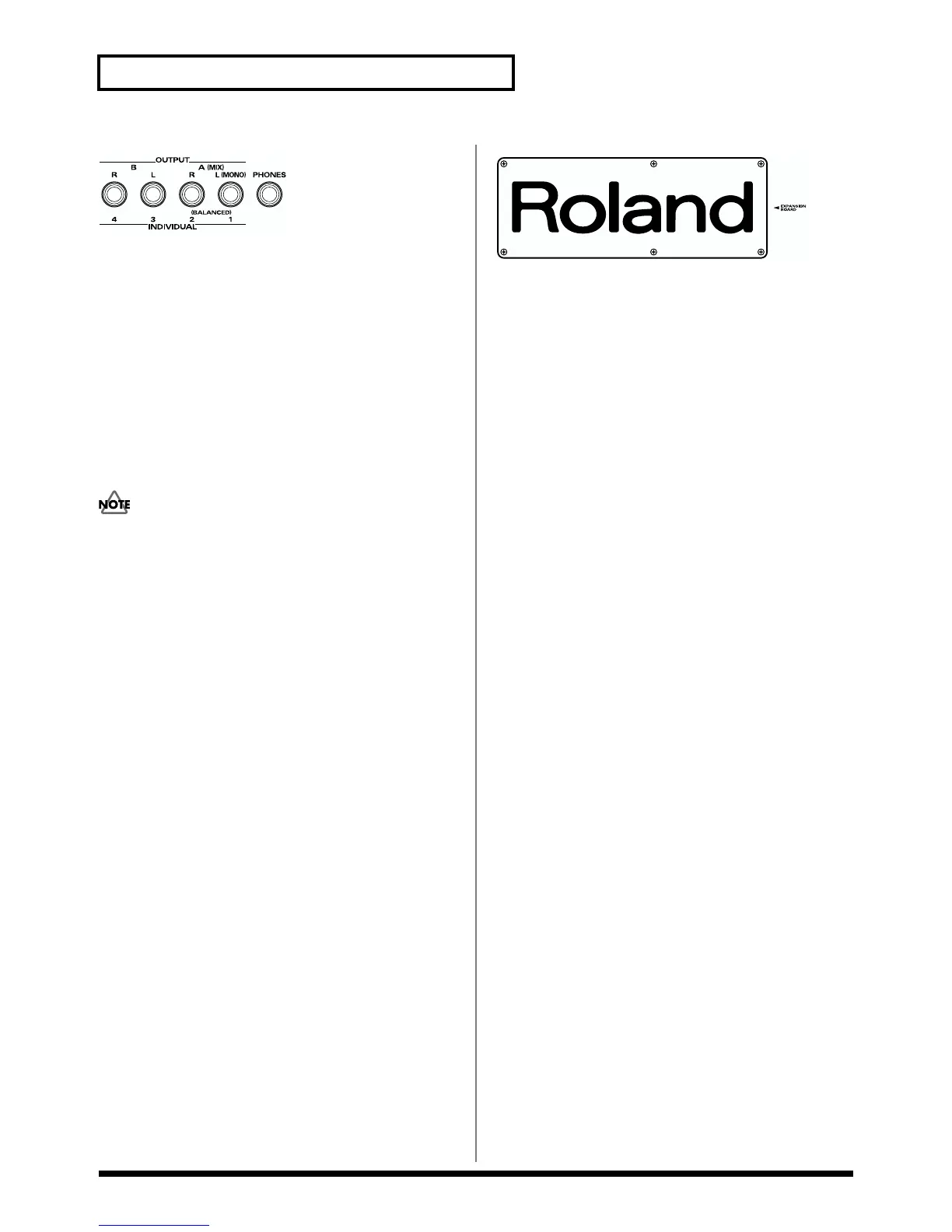

Front and Rear Panel
fig.00-11
OUTPUT A (MIX) Jacks (L (MONO), R)
These jacks output the audio signal to the connected mixer/
amplifier system in stereo. For mono output, use the L jack.
→ (Quick Start; p. 16)
OUTPUT B Jacks (L, R)
These jacks output the audio signal to the connected mixer/
amplifier system in stereo.
INDIVIDUAL 1–4 Jacks
These jacks output audio signals in mono to an amp or
mixer.
The setting determining whether these jacks are used as
stereo OUTPUT jacks or monaural INDIVIDUAL jacks is
made with the Output Assign setting (p. 70, p. 96, p. 108,
p. 109, p. 113).
PHONES Jack
This is the jack for connecting headphones (sold separately).
→ (Quick Start; p. 16)
fig.00-12
Wave Expansion Board Installation Slot
Remove the cover to reveal the slots for installation of
optional Wave Expansion Boards (SR-JV80 Series, SRX
Series). → (Quick Start; p. 4, 10)
To Next Page
