OPERATION
WARNING:
To avoid a kickback and to avoid serious personal injury,
never position the concave edge of bowed or warped
material against the fence.
Bevel
Angle Type of Cut
Setting
Left side, inside corner
1. Top edge of molding against fence
2. Miter table set right 31.62°
3. Save left end of cut
Right side, inside corner
1. Bottom edge of molding against fence
2. Miter table set left 31.62°
3. Save left end of cut
Left side, outside corner
1. Bottom edge of molding against fence
2. Miter table set left 31.62°
3. Save right end of cut
Right side, outside corner
1. Top edge of molding against fence
2. Miter table set right 31.62°
3. Save right end of cut
33.85°
33.85°
33.85°
33.85°

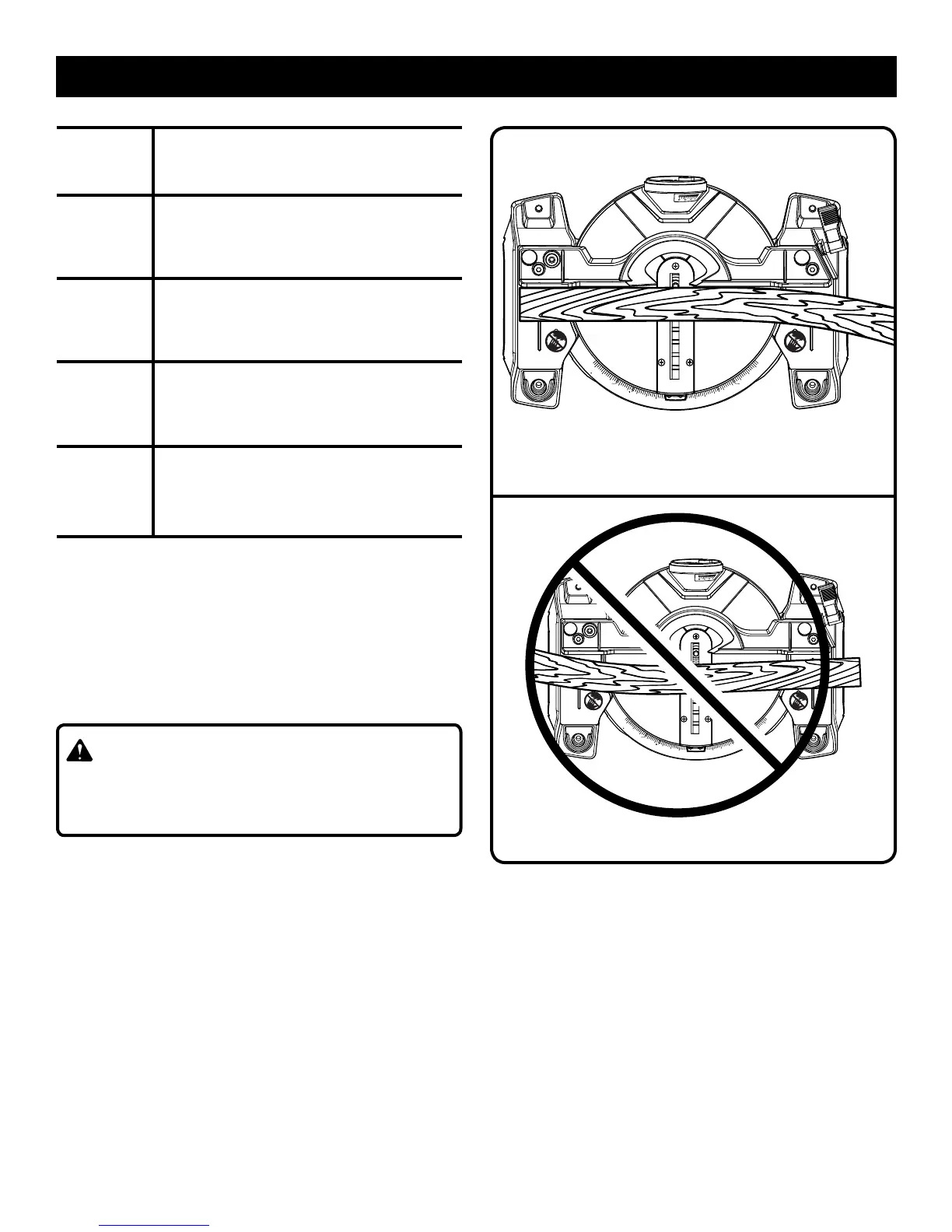

CUTTING WARPED MATERIAL
See Figures 34 - 35.
When cutting warped material, always make sure it is posi-
tioned on the miter table with the convex side against the
fence as shown in figure 34.
If the warped material is positioned the wrong way as shown
in figure 35, it will pinch the blade near the completion of
the cut.
Fig. 34
right
wrong
Fig. 35
45
30
31.6
22.5
15
0
15
30
22.5
31.6
45
45
30
31.6
22.5
15
0
15
30
22.5
31.6
45
