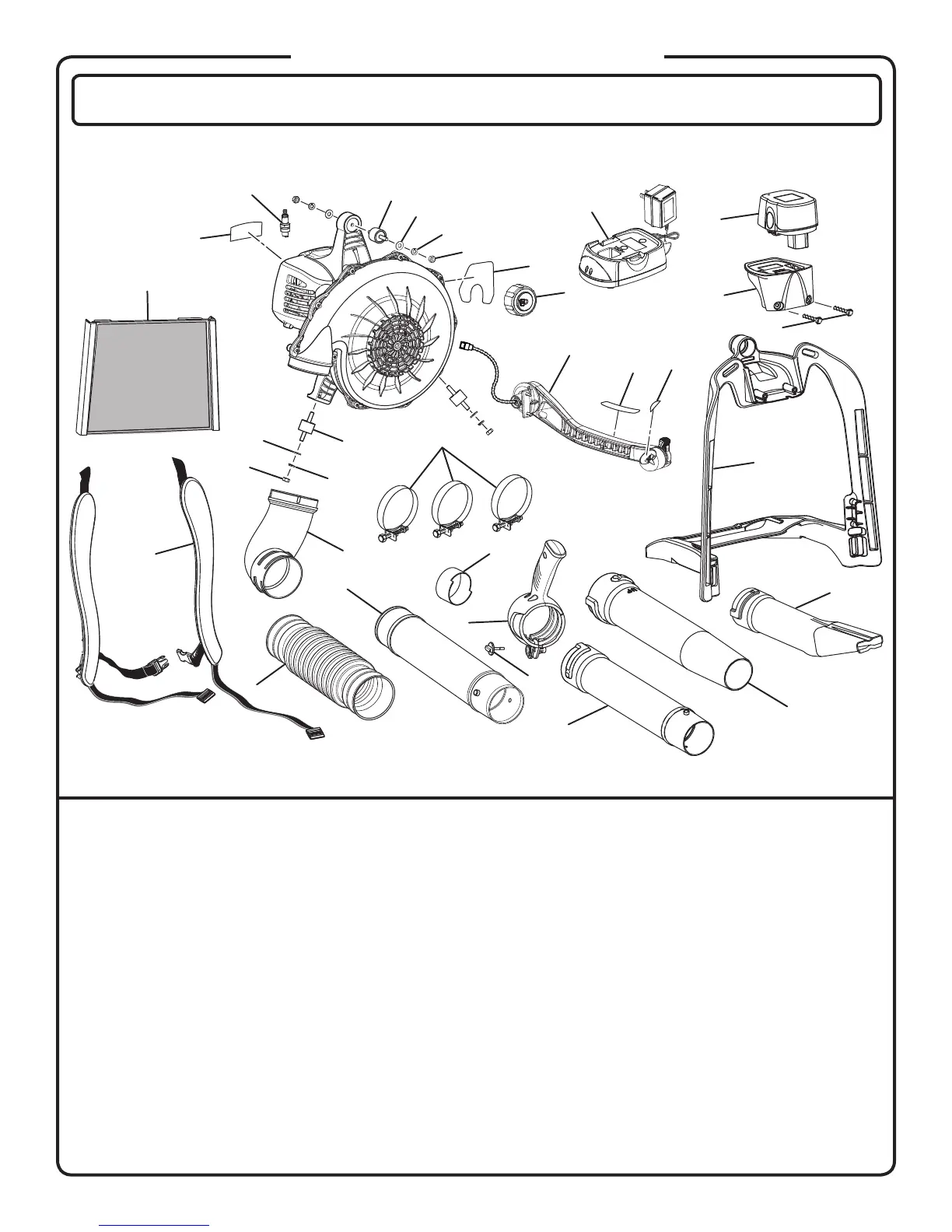

RYOBI RY09605 BACKPACK BLOWER
PARTS LIST
The model number will be found on a label attached to the engine housing. Always mention the model
number in all correspondence regarding your BACKPACK BLOWER or when ordering replacement parts.
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
1 580819001 Elbow ............................................... 1
2 580693003 Bellows .............................................1
3 580692001 Upper Tube ....................................... 1
4 518481001 Bushing ............................................ 1
5 590461001 Thumb Screw ................................... 1
6 309003001 Adjustable Handle Assembly
(Inc. Key No. 5) ................................. 1
7 570543001 Lower Tube ....................................... 1
8 580537001 Nozzle .............................................. 1
9 580613001 High Velocity Nozzle
w/Leaf Scraper ................................. 1
10 518826001 Frame ............................................... 1
11 518646001 Battery Receiver ...............................1
12 250226002 12 V Battery ......................................1
13 310816001 Fuel Cap Assembly ..........................1
14 310694001 Throttle Arm Assembly .....................1
15 308645001 Tube Clamp ...................................... 3
16 678190002 Hex Nut (1/4-20) ...............................6
17 678109001 Lock Washer .................................... 6
18 678186002 Washer ............................................. 6
19 570546001 Vibration Isolators ............................ 3
20 870174001 Spark Plug (Champion RCJ6Y) ........ 1
21 901589001 Mesh Backing .................................. 1
22 901588001 Harness Assembly ........................... 1
23 940734053 Starting Label ................................... 1
24 940654073 Warning Label .................................. 1
25 940663002 Touch Start Label ............................. 1
26 940705025 Logo Label ....................................... 1
27 140295003 Charger............................................. 1
28 660629005 Screw (10-24x3/4 in.) ....................... 2
987000898 Engine Starting Procedure ............... 1
987000896 Operator’s Manual (960393004) .......1
987000897 Replacement Parts List
(961032081) .....................................1
