Reverse Side
―
The color and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
―
EDE, EME models are only supported.
DVI IN /
MAGICINFO IN
HDMI IN
USB
(5V, 1.5A)
HDBT IN
RGB IN RS232C IN RS232C OUT
AUDIO
OUT
RGB / DVI /
HDMI / AV /
COMPONENT
/ AUDIO IN
IR /
AMBIENT
SENSOR IN
COMPONENT IN

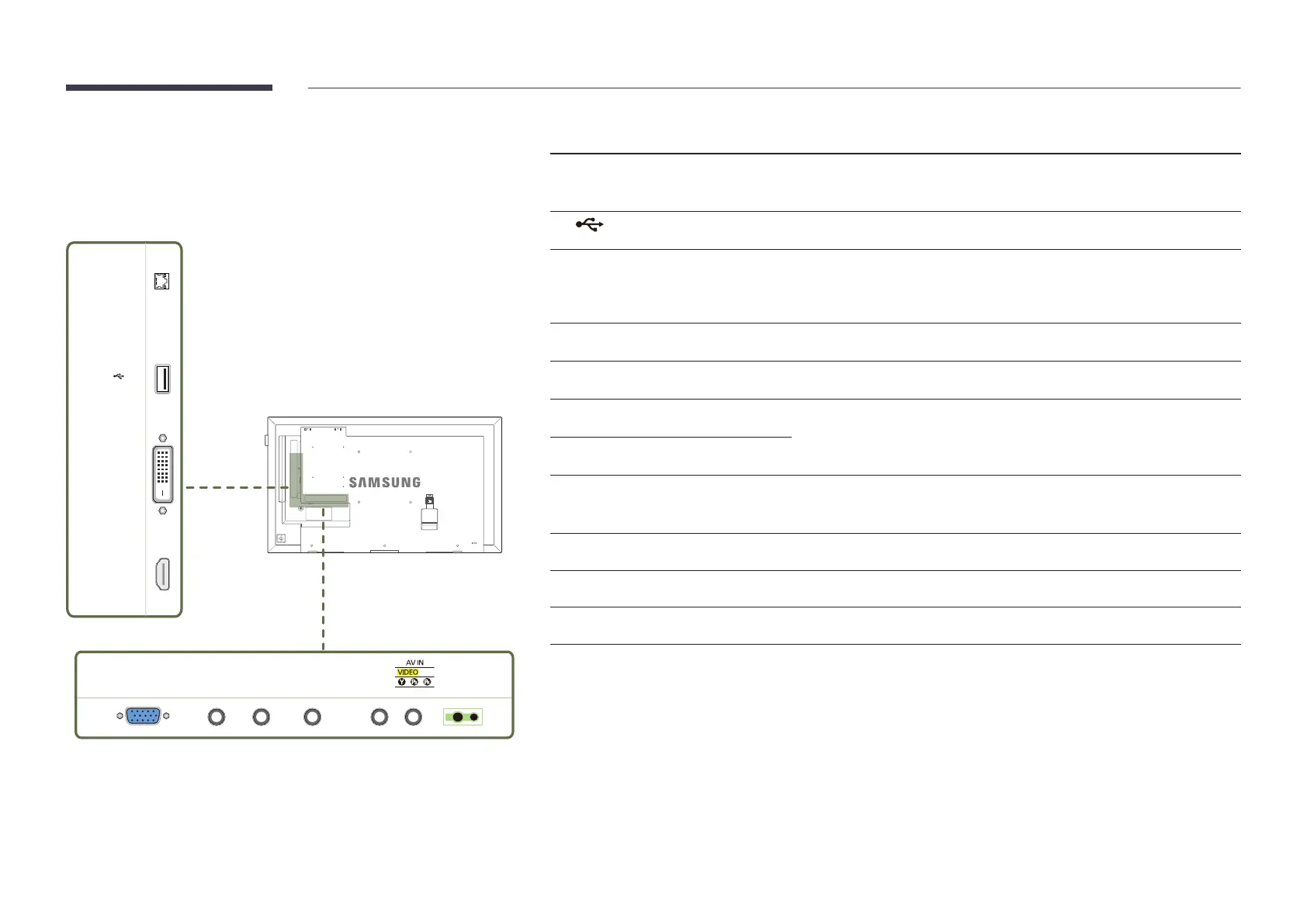

Port Description
HDBT IN
Sends the HDMI signal to a connected LAN cable using an HDBaseT transmitter.
―
EME models are only supported.
USB (5V, 1.5A)
Connect to a USB memory device.
DVI IN / MAGICINFO IN
DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.
MAGICINFO IN: Use the (dedicated) DP-DVI cable when connecting a network box
(sold separately).
HDMI IN
Connects to a source device using an HDMI cable.
RGB IN
Connects to a source device using a D-SUB cable.
RS232C IN
Connects to MDC using an RS232C adapter.
RS232C OUT
RGB / DVI / HDMI / AV / COMPONENT /
AUDIO IN
Receives sound from a PC via an audio cable.
AUDIO OUT
Connects to the audio of a source device.
AV IN / COMPONENT IN
Connects to a source device using the AV/Component adapter.
IR / AMBIENT SENSOR IN
Supplies power to the external sensor board or receives the light sensor signal.
