Samsung WB690 User Manual

Basic functions 15

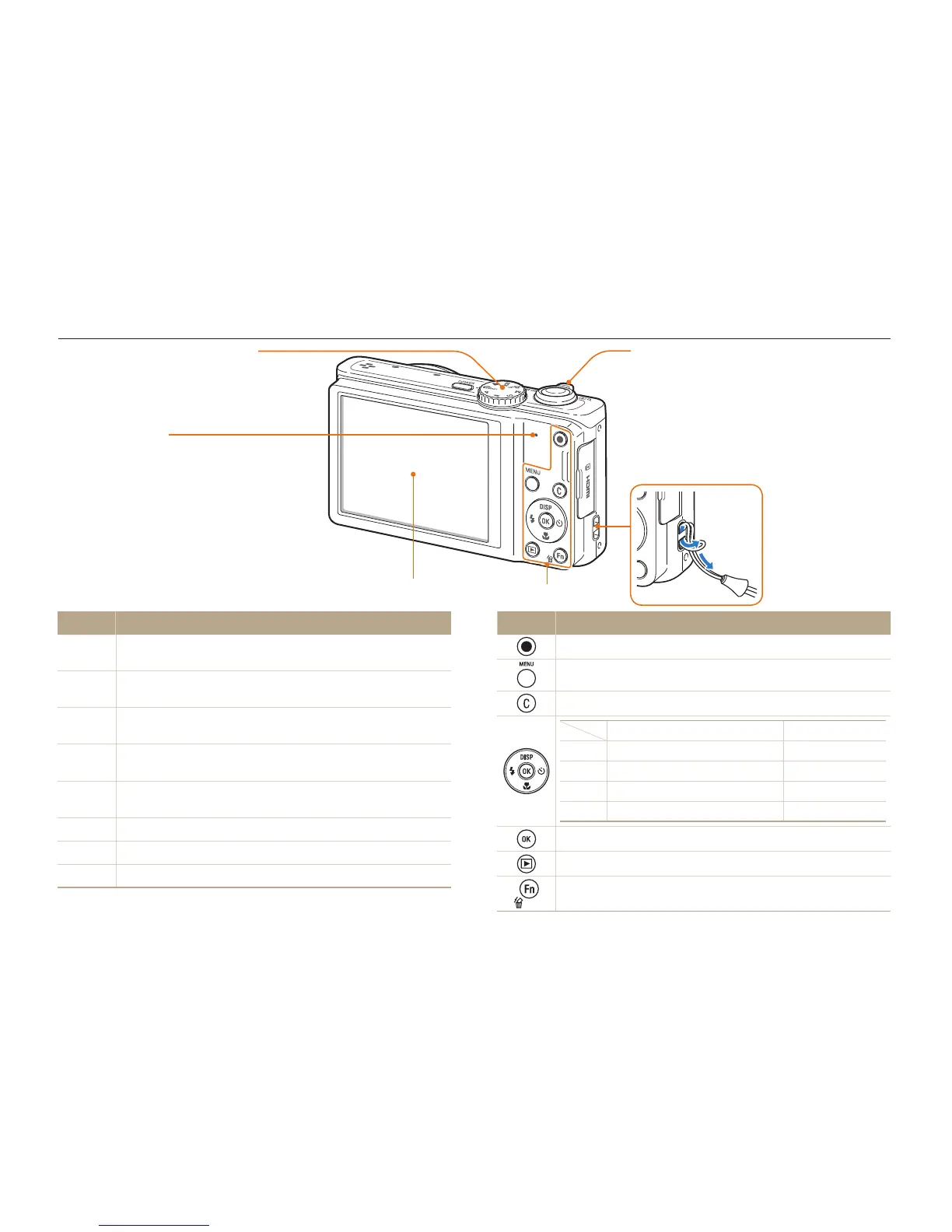

Camera layout
Status lamp
• Blinking: When the camera is saving
a photo or video, being read by a
computer or printer, or out of focus
• Steady: When the camera is
connecting to a computer or in focus
Zoom button
• In Shooting mode: Zoom in or out
• In Playback mode: Zoom in on part of a photo
or view files as thumbnails, or adjust volume
• When selecting an option: Adjust defined
settings
Display
Attaching the strap
Icon Description
S
Smart Auto: Capture a photo with a scene mode selected
automatically by the camera.
p
Program: Capture a photo by setting options except the shutter
speed and aperture value which the camera sets automatically.
A
Aperture Priority: The camera selects a shutter speed based on
the aperture value you have set manually.
h
Shutter Priority: The camera selects an aperture value based on
the shutter speed you have set manually.
M
Manual: Adjust various camera settings including shutter speed and
aperture value.
d
DUAL IS: Capture a photo with options that reduce camera shake.
s
Scene: Capture a photo with options preset for a specific scene.
v
Movie: Customize settings to record a video.
Button Description
Start recording a video.
Access options or menus.
Access an option that you have selected. (p. 24)
Basic functions Other functions
D
Change the display option. Move up
c
Change the macro option. Move down
F
Change the flash option. Move left
t
Change the timer option. Move right
Confirm the highlighted option or menu.
Enter Playback mode.
• Access options in Shooting mode.
• Delete files in Playback mode.
Mode dial
(see the left table below)
x
y
(see the right table below)

Samsung WB690 Specifications

General

Megapixel	12 MP
Camera type	Compact camera
Sensor type	CCD
Image stabilizer	Yes
Total megapixels	16.4 MP
Image sensor size	1/2.33 \
Supported aspect ratios	16:9
Maximum image resolution	4320 x 3240 pixels
Still image resolution(s)	1024 x 768, 1920 x 1080, 1984 x 1488, 2592 x 1944, 3648 x 2736, 4320 x 2432, 4320 x 2880
Digital zoom	4 x
Optical zoom	18 x
Combined zoom	72 x
Extra/Smart zoom	1.33 x
Focal length range	4.06 - 73.08 mm
Maximum aperture number	3.2
Minimum aperture number	5.8
Maximum focal length (35mm film equiv)	432 mm
Minimum focal length (35mm film equiv)	24 mm
Focus	TTL
Normal focusing range	0.5 - ∞ m
Auto focusing (AF) modes	Centre weighted Auto Focus, Multi Point Auto Focus, Selective Auto Focus
Macro focusing range (tele)	1.5 - 2 m
Macro focusing range (wide)	0.03 - 0.5 m
Normal focusing range (tele)	3.5 - ∞ m
Normal focusing range (wide)	0.8 - ∞ m
Auto Mode focusing range (tele)	1.5 - ∞ m
Auto Mode focusing range (wide)	0.03 - ∞ m
Light metering	Centre-weighted, Spot
ISO sensitivity	80, 100, 200, 400, 800, 1600, 3200, Auto
Light exposure modes	Aperture priority AE, Manual, Shutter priority AE
ISO sensitivity (max)	3200
ISO sensitivity (min)	80
Light exposure control	Program AE
Light exposure correction	± 2EV (1/3EV step)
Fastest camera shutter speed	1/2000 s
Slowest camera shutter speed	16 s
Flash modes	Auto, Fill-in, Flash off, Red-eye reduction, Slow synchronization
Flash range (tele)	0.5 - 3 m
Flash range (wide)	0.3 - 5 m
Flash recharging time	4 s
Minimum processor	Intel Pentium III 500 MHz, Power Mac G3
Power source type	AC, Battery
Aperture range (F-F)	3.2 - 5.8
Minimum storage drive space	250 MB
Minimum system requirements	USB CD-ROM VGA 1024x768 DirectX 9.0
Compatible operating systems	Windows 2000 Windows XP Windows Vista Mac OS 10.3+
Focal length (35mm film equivalent)	24 - 432 mm
Scene modes	Backlight, Beach, Close-up (macro), Dawn, Documents, Night, Night portrait, Portrait, Snow, Sunset, Landscape (scenery)
Image editing	Resizing, Rotating, Trimming
Photo effects	Black&White, Negative film
White balance	Auto, Cloudy, Custom modes, Daylight, Fluorescent, Tungsten
Shooting modes	Aperture priority, Auto, Manual, Program, Scene, Shutter priority
Camera playback	Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 10 s
Camera file system	DCF 2.0, DPOF 1.1, Exif 2.21
Playback zoom (max)	12.5 x
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video resolutions	320 x 240, 640 x 480, 1280 x 720 pixels
Motion JPEG frame rate	30 fps
Video formats supported	H.264, MP4
Maximum video resolution	1280 x 720 pixels
Analog signal format system	NTSC, PAL
Audio formats supported	AAC, WAV
Internal memory	- MB
Compatible memory cards	SD, SDHC
Maximum memory card size	8 GB
Display diagonal	3 \
Display resolution	320 x 240 pixels
Viewfinder type	Not available
USB version	2.0
Product color	Black
Battery type	SLB-10A
Battery voltage	3.7 V
Battery capacity	1050 mAh
Battery life (max)	1.8 h
Power requirements	4.4 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 85 %
Cables included	AV, USB

Weight and Dimensions

Depth	24.9 mm
Width	105 mm
Height	58.9 mm
Weight	203 g
