38-31/32
14-3/16
7-13/16
Rear panel
(Center point of gravity)
Drain hose O.D. 1-1/4
Narrow tube O.D. 1/4
Wide tube O.D. 1/2
Center of
tubing hole
(For right rear)
5-19/32
1-61/64
Wireless remote
control unit
6-7/64
2-13/64 19/32
Dimension: in.

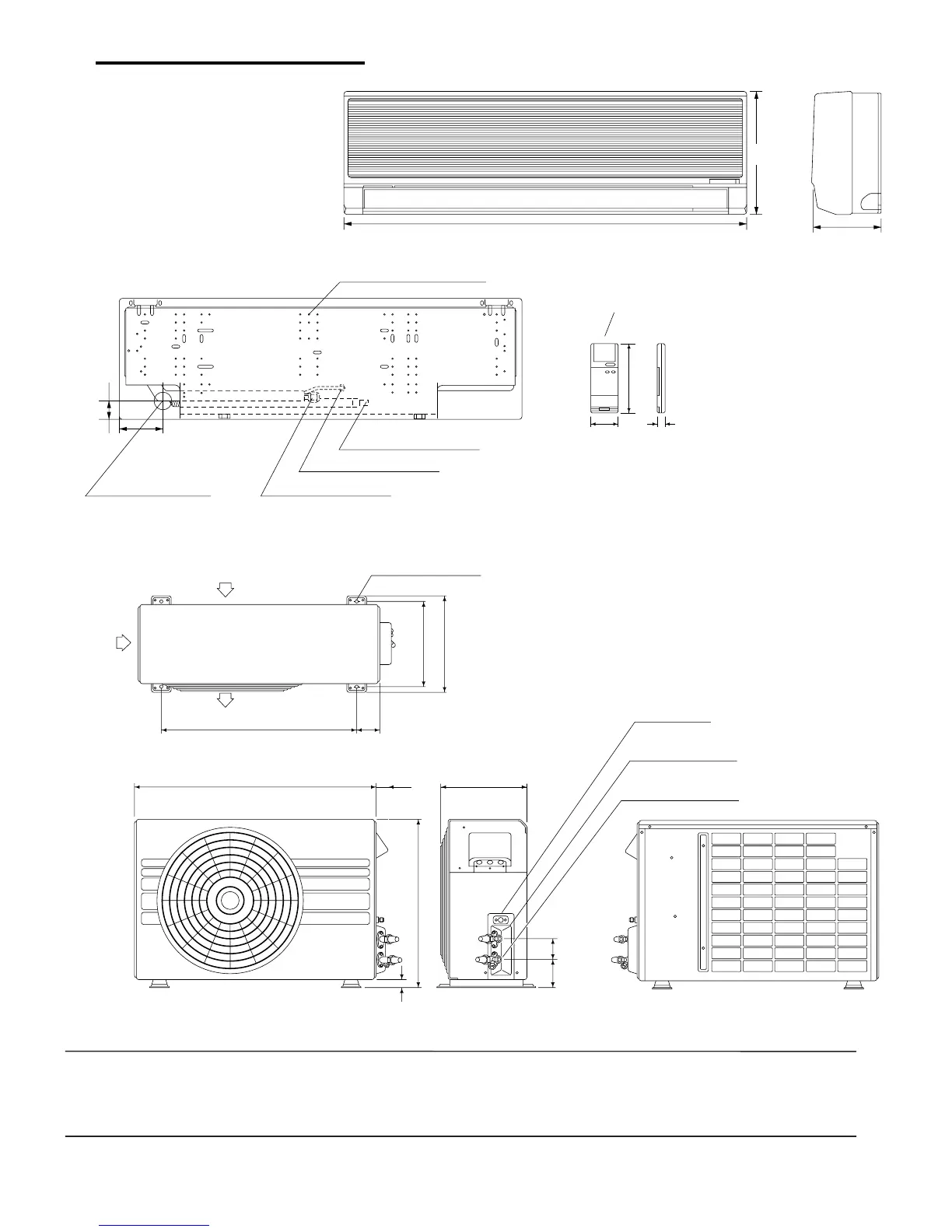

DIMENSIONAL DATA
Indoor unit KHS1232
4 15/32 dia. hole
Air intake
Air discharge
23-15/16 2-3/8
29-17/32
Air
intake
Check port
2-1/4 11-1/32
20-7/8
21/32
2-23/32 2-3/8
1/4" narrow tubing
service valve
1/2" wide tubing
service valve
10-23/32
11-7/8
Dimension: in.
Outdoor unit CH1232
WARRANTY
SANYO products are warranted against defects in materials and workmanship for the
period below;
LABOR PARTS
Compressor 30 Days 5 Years
Other Components N/A 1 Year
Because of a policy of continuous product improvements, SANYO reserves the right
to change specifications and design without notice.
Full specific warranty rights, conditions, exclusions and obligations are specified in the
warranty packed with each products.
SANYO FISHER COMPANY
A Division of SANYO North America Corporation
21605 Plummer St. Chatsworth, CA 91311
Phone : (818) 998- 7322
Fax : (818) 701- 4160
Website: http://www.sanyohvac.com
