-17-
Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top , Main Board and the Network board following to the “Mechanical
Disassembly”.
Disassembly requires a 2.0mm hex wrench.

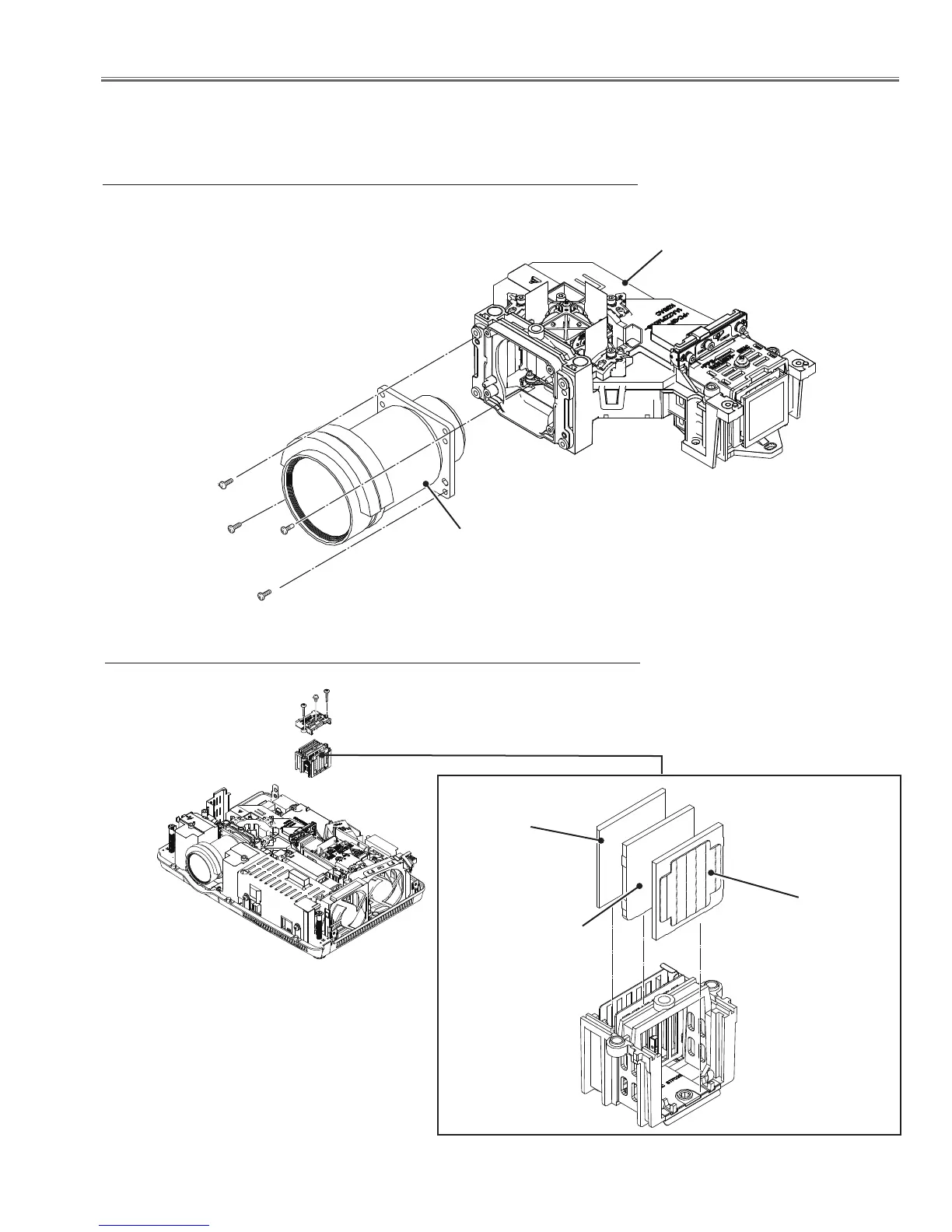

z Projection lens disassembly
(M2.5x6)x4
Fig.1
x Integrator lens-in disassembly
Integrator lens-in
Integrator Lens-In Ass'y
M(2.5x6)
Fig.2
* Rugged surface
(Front)
Projection lens
Optical unit
Note: The optical unit should be removed from the cabinet bottom before re-
moving the projection lens.
(M3x14)x2
Prism Beam Splitter
(PBS)
Integrator lens-out
* Rugged surface
(Rear)
To Next Page
