Sanyo PLV-Z4 Service Manual

- 49 -
Optical adjustment
SCREW-A
C
REW-C
SLOT-B
O
T-D
Slot-H
Slot-G
Screw-D
Screw-C
White
CYAN
MAGENTA
White
CYAN
MAGENTA
a
a
White
CYAN
MAGENT
A
White
CYAN
MAGENTA
b
b

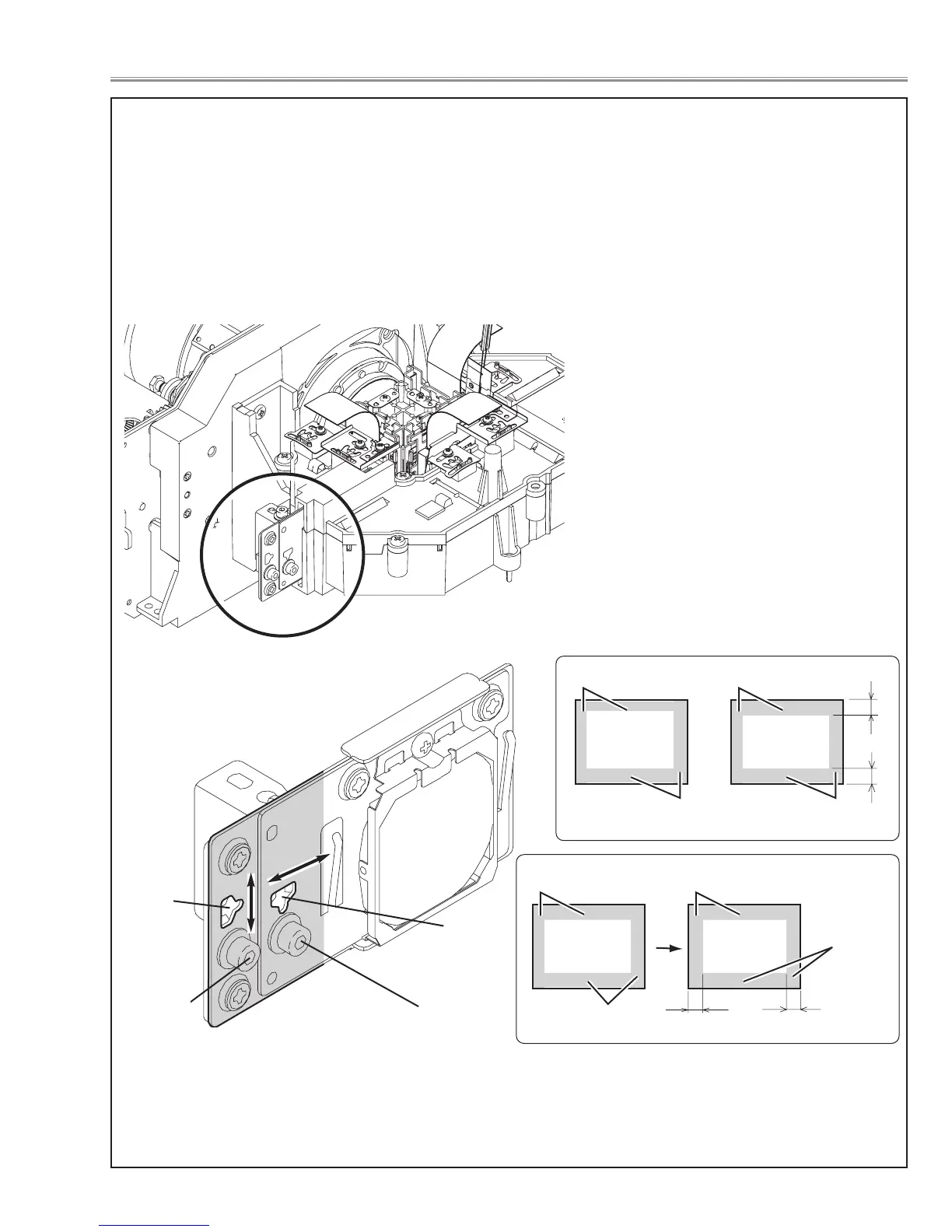

2.Relay lens adjustment
1. Adjust the slot G.
It is adjusted that cyan and the magenta in the top and bottom part become the same width.
2. Adjust the slot H.
It is adjusted that cyan and the magenta in the right and left part become the same width.
3. Tighten screw C and screw D to fix the relay lens unit.
