Schlage AD Series User Manual

3 • Schlage • AD-300 user guide
Overview
The Schlage AD-300/AD-302 is an open architecture product designed to interface with
access control panels (ACPs) which use the RSI RS485 protocol.
When using an access control panel that does not use the RSI RS485 protocol, the addition of
a Schlage PIB300 is required to provide a Wiegand or clock & data communications protocol.
The Schlage AD-302 is a FIPS-201-2 certied product.
• Powered by external power using a UL294 or ULC S318/ULC S319 listed power
supply capable of sourcing at least 250 mA @ 12 or 24 VDC.
• The outside lever is normally locked.
• The inside lever always allows egress.
• The AD-300/AD-302 normally operates in networked mode. Information contained
in the user credential is passed to an ACP, which controls lock functions. The ACP
maintains the audit trail.

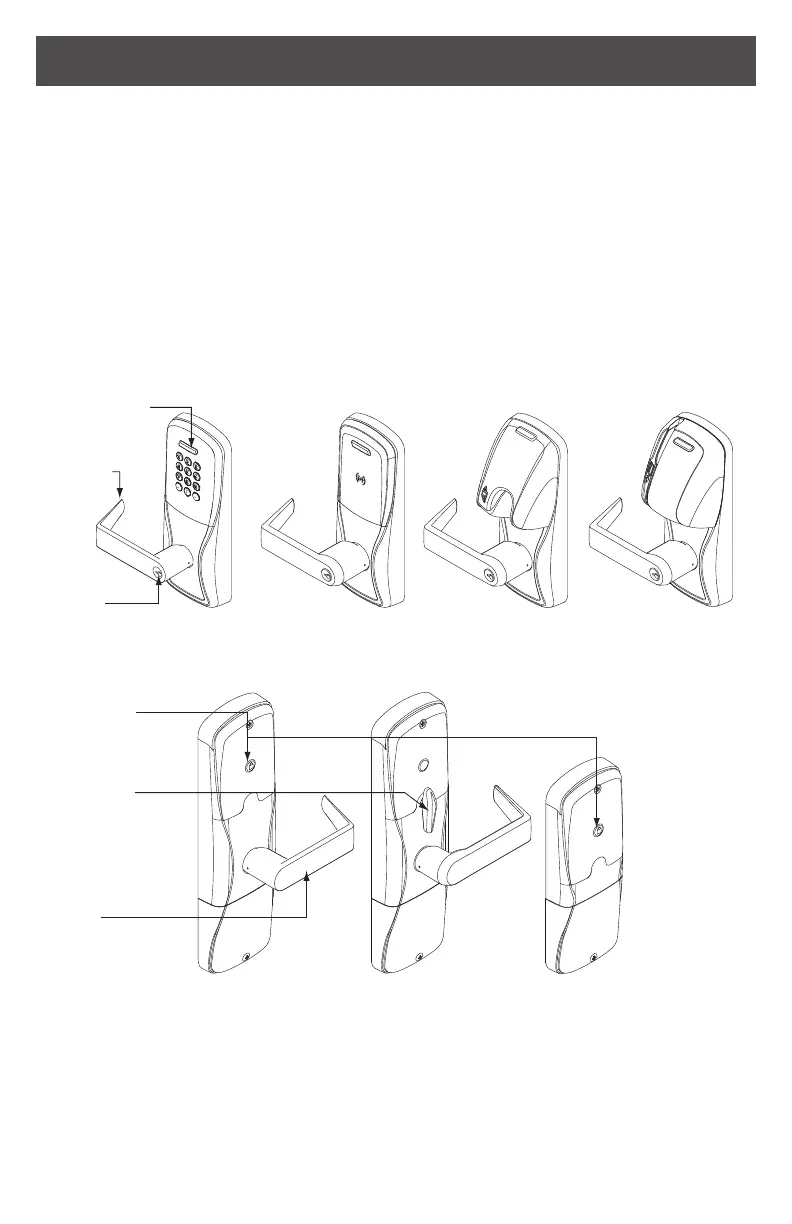

AD-300 /AD-302-CY
AD-300 /AD-302-MS
AD-300 /AD-302-MD AD-300 /AD-302-993
Outside
Schlage Button
Outside
Lever
Keyway
Inside
Optional
Inside Push
Button (IPB)
Optional
Thumbturn
Inside
Lever
Keypad Multi-Tech Reader Mag Card
Reader (insert)
Mag Card
Reader (swipe)
Additional AD-300 Reader options: Mag + Keypad, Multi-Tech + Keypad.
Note: Proximity card (PR, PRK) ONLY and Smart card (SM, SMK) ONLY readers have been discontinued and
replaced by the Multi-Tech (MT, MTK) readers that provide all the same functionality as the original Proximity and
Smart card readers in a single credential reader.
The AD-302 reader is a FIPS-201-2 certied Multi-Tech + Keypad (FM2) reader.

Schlage AD Series Specifications

General

Installation	Professional installation recommended
Series	AD Series
Usage	Commercial
Lock Type	Mortise
Access Control	Keypad
Power Source	Battery
Backset	2-3/4"
Keypad	Yes
Audit Trail	Yes
Handing	Reversible
