Schlage L9000 Series User Manual

2

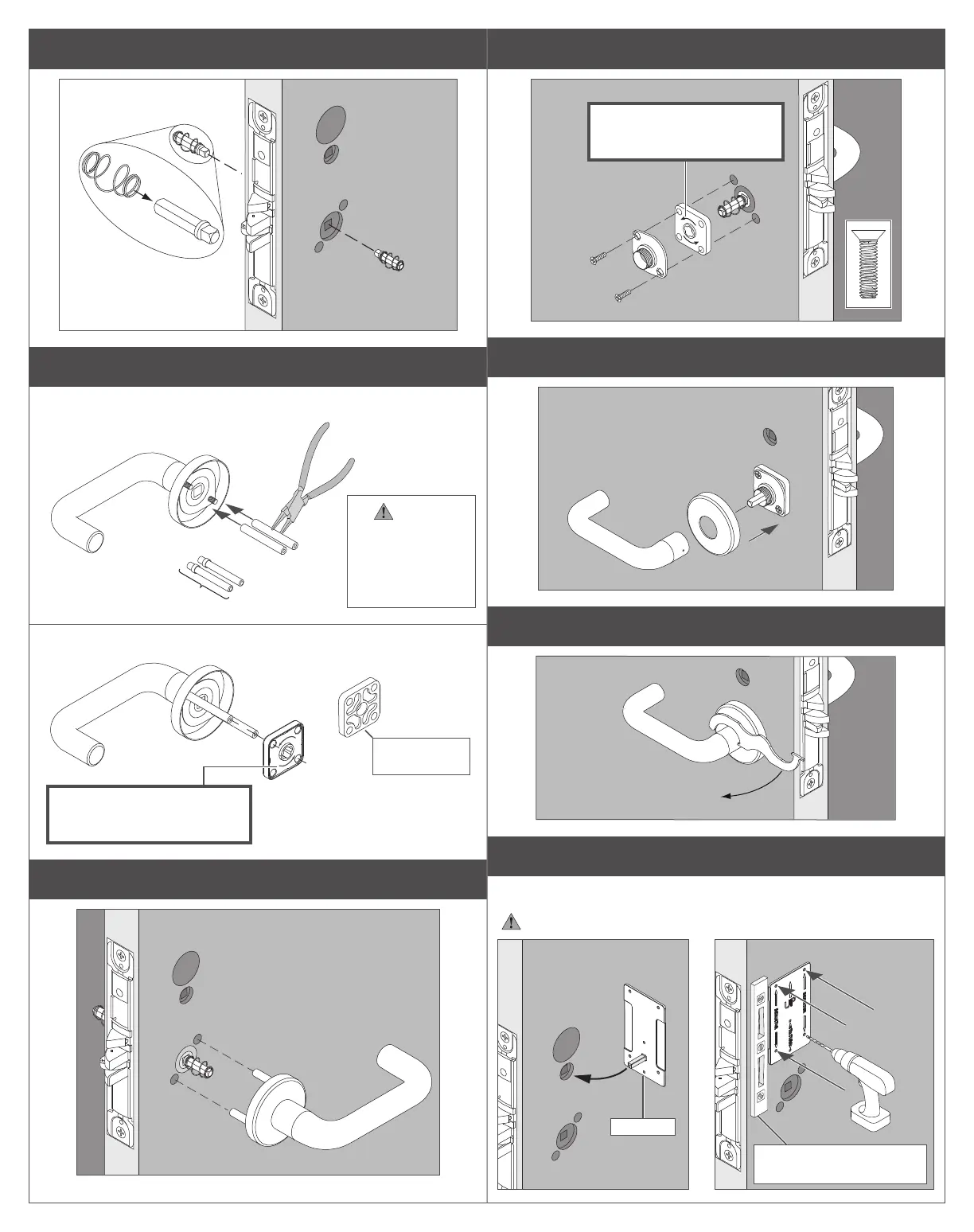

3 Install springs and spindles.
4 Prepare outside lever assembly for installation.
4a Install outside mounting posts.
LV functions
FULLY
TIGHTEN
MOUNTING
POSTS
ON SCREWS.
4b Install outside spring cage or spacer.
OR
L The spring cage arrow
must point in direction
of lever down rotation.
Install spacer
for L/LV9485
5 Install outside lever.
Exterior
6 Install inside spring cage and mounting plate.
L The spring cage arrow
must point in direction
of lever down rotation.
Interior
7 Install inside lever and rose.
8 Tighten bushing with spanner wrench.
9 Prepare the indicator side of the door.
Use template to mark and drill four (4) pilot holes.
Required for indicator side of door ONLY!
b.
Use level to align
template with door edge.
a.
Template

Schlage L9000 Series Specifications

General

Series	L9000
Grade	Grade 1
Backset	2-3/4"
Door Thickness	1-3/4" to 2-1/4"
Lockcase	Steel, zinc dichromated for corrosion resistance
Latchbolt	Stainless steel, 3/4" throw
Deadbolt	1" throw
Handing	Reversible
Finishes	Satin Chrome, Satin Brass
Keyway	Schlage C
Strike	ANSI strike standard. Other strike options available.
