Sega Initial D User Manual

Control Panel removal and dissassembly.
A 5 mm allen wrench is required for the following procedure.
Turn off the power.
Remove the 6 allen screws from the Control Panel.
Unplug the 5 connectors and
remove the Control Panel. Be
careful not to damage any of the
wiring.

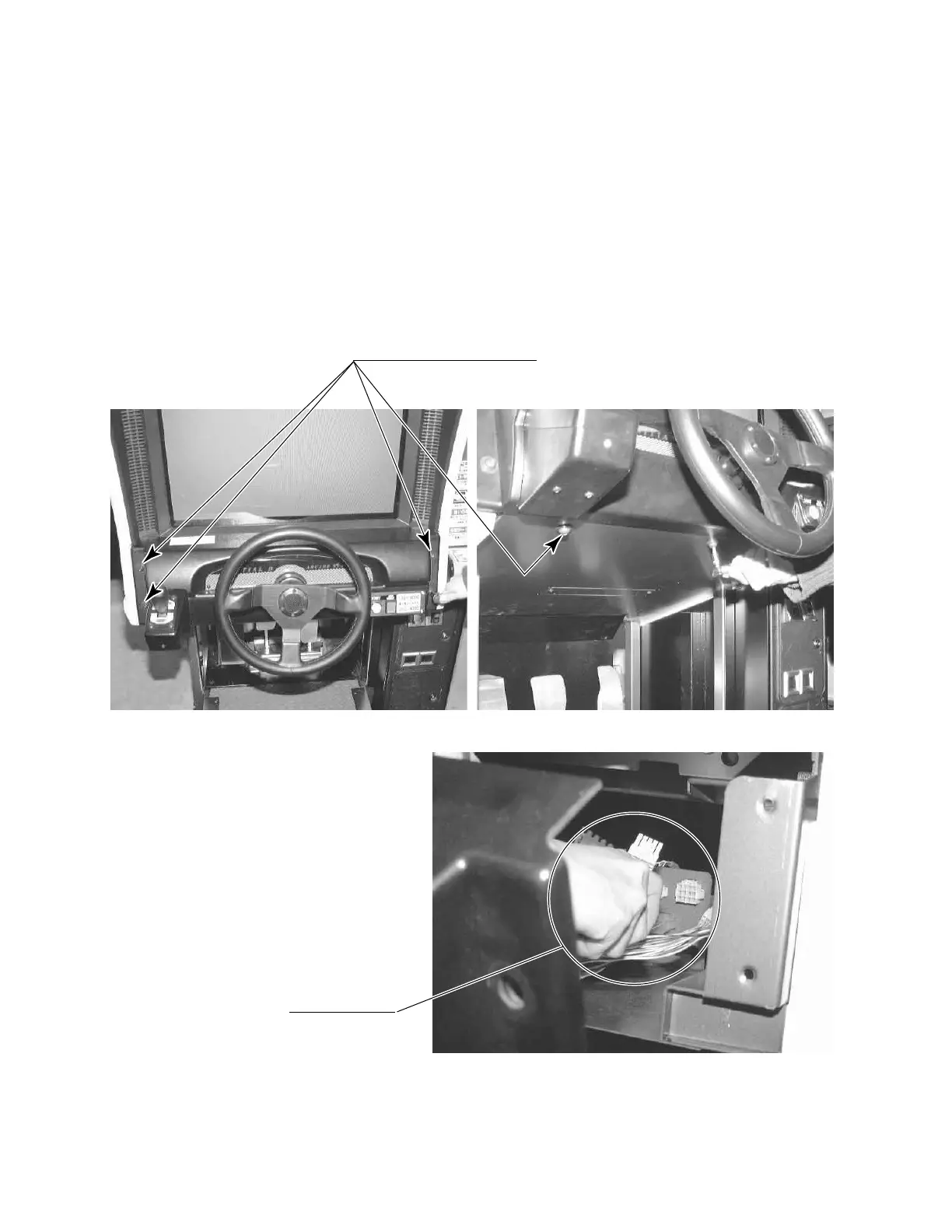

ALLEN SCREW (total 6), black
CONNECTOR (5)
BROWN: 4P
YELLOW: 10P,12P
RED: 3P,6P
[P 2/6]
