LAMPS AND LIGHTING
13
93
3
Depending on which LED strip to replace, remove the relevant cable ties which support the LED strip to the
Billboard and remove.
1
The Billboard LED’s are located between the back section of the Billboard and the front Artwork, before
attempting to change the Tube, TURN THE POWER OFF.
2
To gain access to the outer LED strips, extract the (3) M4x50 TMP BH PAS (008-B00450) fi xing screws
which hold the Billboard Title Panel in place and remove.

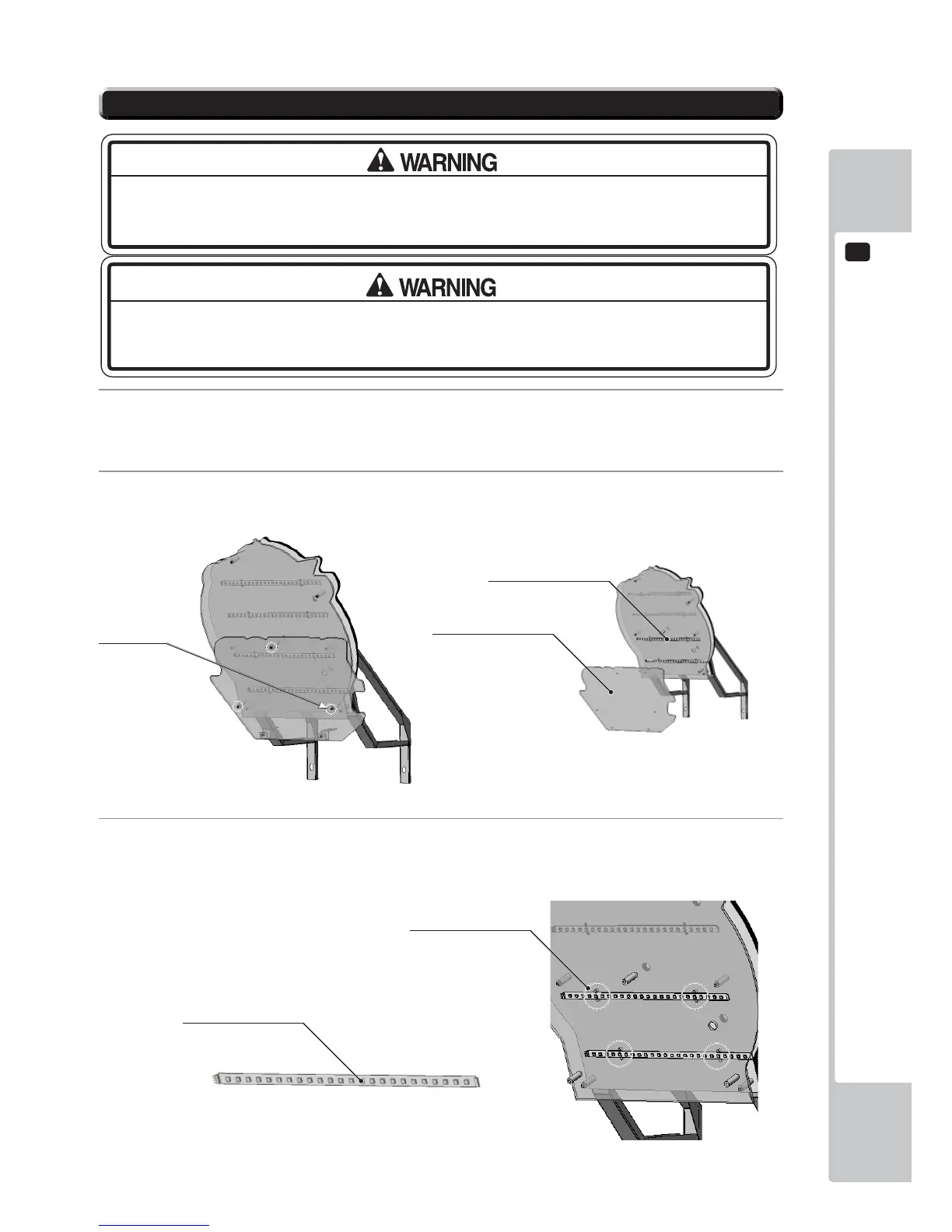

13-2 BILLBOARD LED LIGHTING
THIS WORK ON TOP OF THE CABINET, SHOULD NOT BE UNDERTAKEN WITHOUT THE
USE OF A SUITABLE STEP OR FOOTSTOOL.
MAKE SURE THAT THE MAIN SUPPLY VOLTAGE TO THE MACHINE IS SWITCHED OFF
AND UNPLUGGED BEFORE ATTEMPTING TO CARRY OUT THIS WORK
Title Panel
LED Strips
Fixings (3)
LED STRIP RIGID
390-2112-032WUK
Cable Ties
To Next Page
