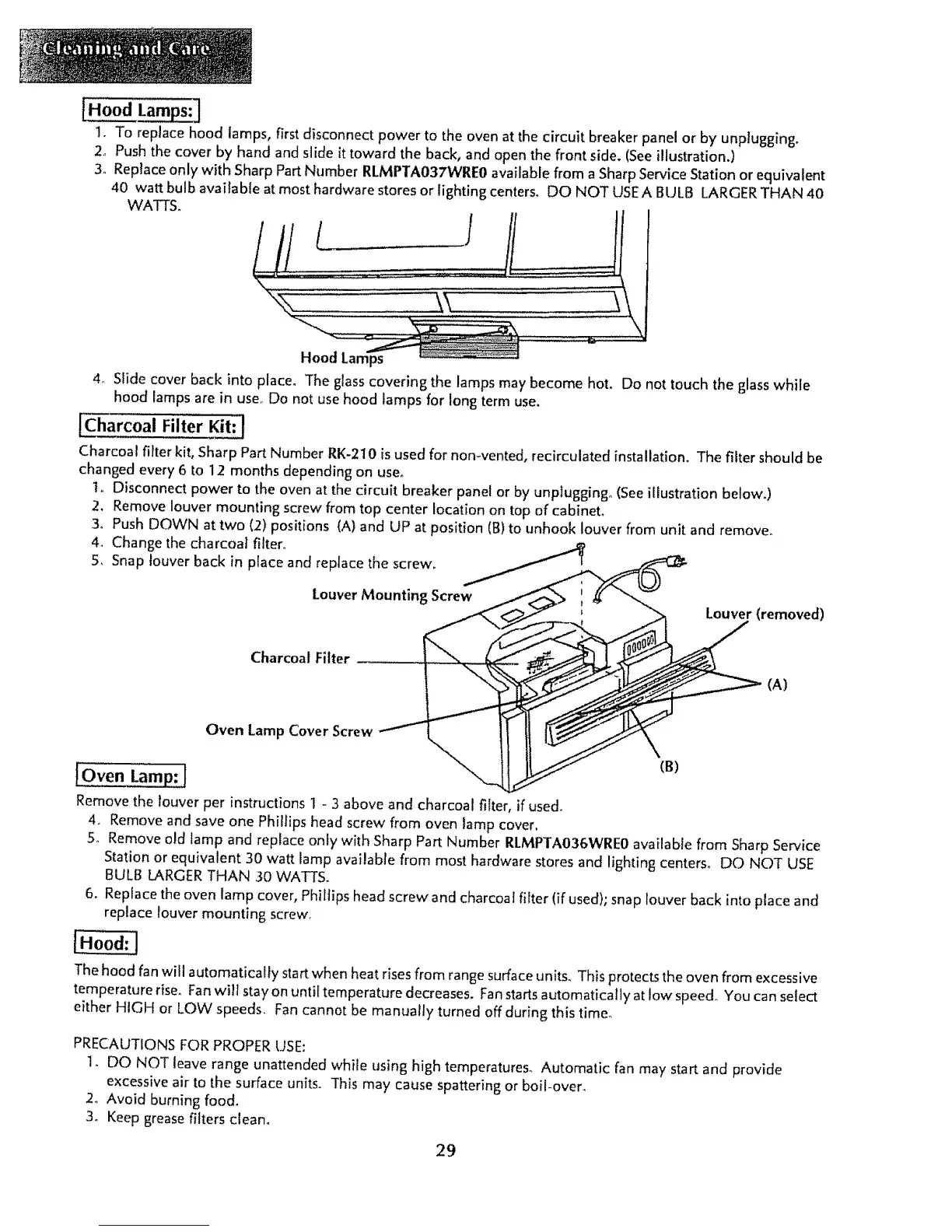

1. To replace hood lamps, first disconnect power to the oven at the circuit breaker panel or by unplugging.
2o Push the cover by hand and slide it toward the back, and open the front side. (Seeillustration.)
3_ Replace only with Sharp Part Number RLMPTAO37WREO available from aSharp Service Station or equivalent
40 watt bulb available at most hardware stores or lighting centers° DO NOr USEA BULB LARGERTHAN 40
WATTS.
|l
I-lOOa Lamps ........ ---
4o Slide cover back into place. The glass covering the lamps may become hot. Do not touch the glass while
hood lamps are in use, Do not use hood lamps for long term use.
[Charcoal Filter Kit: J
Charcoal filter kit, Sharp Part Number RK-210 is used for non-vented, recirculated installation. The filter should be
changed every 6 to 12 months depending on use°
1. Disconnect power to the oven at the circuit breaker panel or by unplugging° (See illustration below.)
2. Remove louver mounting screw from top center location on top of cabinet,
3_ Push DOWN at two (2) positions (A) and UP at position (B) to unhook louver from unit and remove.
4_ Change the charcoal filter.,
5, Snap louver back in place and replace the screw.
Louver Mounting Screw
Louver (removed)
Charcoal Filter
(A)
Oven Lamp Cover Screw
(B)
Remove the louver per instructions1 - 3 above and charcoal filter, if used°
4.. Remove and save one Phillips head screw from oven tamp cover,
5. Remove old lamp and replace only with Sharp Part Number RLMPTAO36WREO available from SharpService
Station or equivalent 30 watt lamp available from most hardware stores and lighting centers° DO NOT USE
BULB LARGER THAN 30 WATTS.
6. Replace the oven lamp cover, PhiIIips head screw and charcoal filter (if used); snap louver back into place and
replace louver mounting screw.
I Uood:l
The hood fan will automatically start when heat rises from range surface units_ This protects the oven from excessive
temperature rise. Fan will stay on until temperature decreases. Fanstarts automatically at low speed_ You can select
either HIGH or LOW speeds, Fan cannot be manually turned off during this time.
PRECAUTIONS FOR PROPER USE:
!. DO NOT leave range unattended while using high temperatures_ Automatic fan may start and provide
excessive air to the surface units. This may cause spattering or boil-over_
2o Avoid burning food.
3o Keep grease filters clean.
29
