12
UNPACKING AND INSTALLATION INSTRUCTIONS
9 OVEN INSTALLATION
THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING TO THE MOUNTING INSTRUC-
TIONS FOUND ON WALL AND TOP CABINET TEMPLATES.
THE NEXT STEP IS TO READ AND FOLLOW MOUNTING INFORMATION ON WALL AND TOP CABINET
TEMPLATES. THIS OVEN MUST BE ATTACHED TO AT LEAST ONE WALL STUD. SEE WALL CONSTRUC-
TION ON PAGE 6.
WHEN DONE WITH TEMPLATES, PROCEED TO MOUNTING SCALE PLATE SECTION.
MOUNTING SCALE PLATE
Attach 2 Scale Plates ! with tape (not included). See Figure 16 and WALL TEMPLATE for locations.

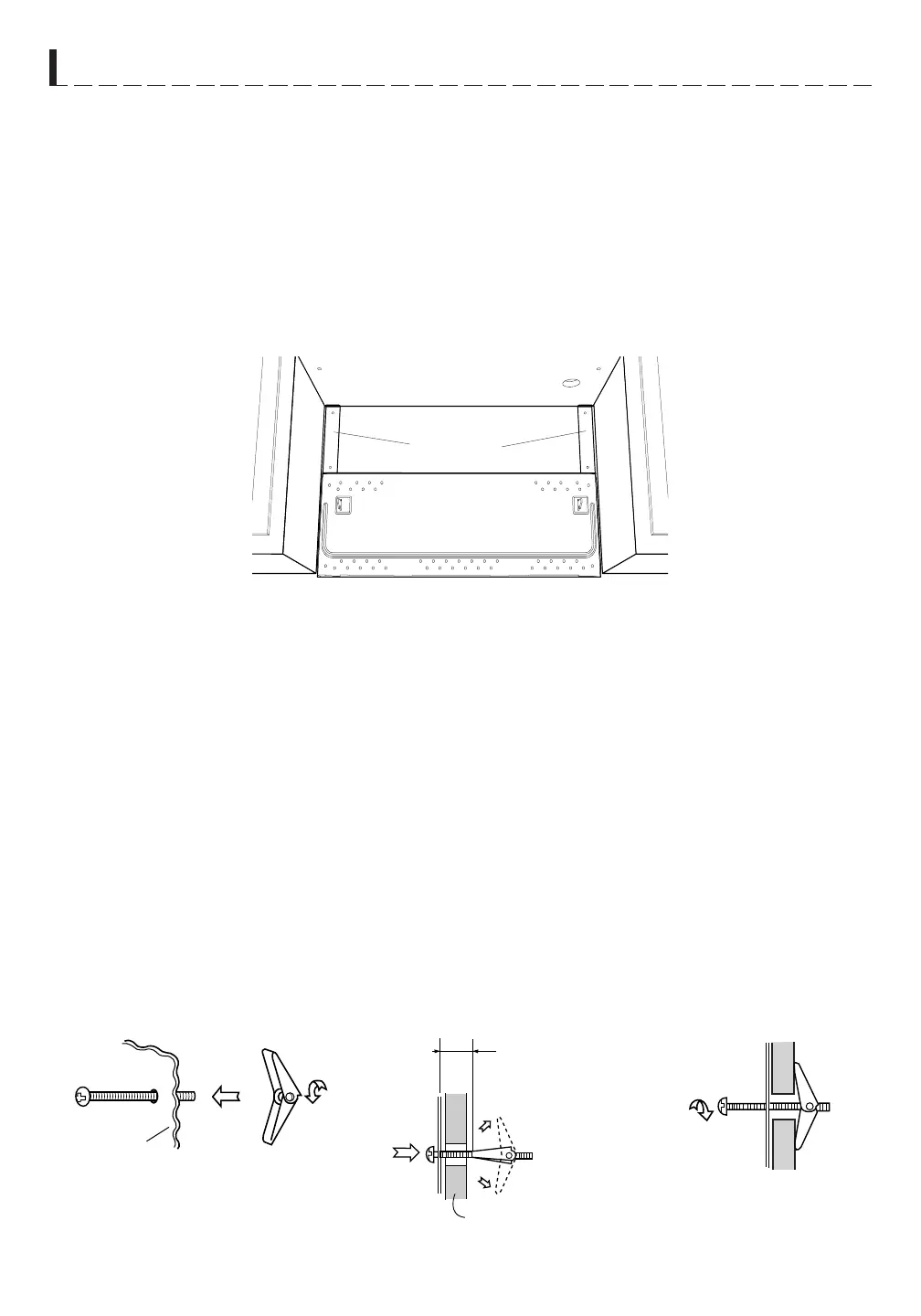

Figure 16
Scale Plates
Mounting Plate
Mounting
Plate
Figure 17 Figure 18
Figure 19
Space more than
wall thickness
Wall
MOUNTING PLATE
1. Separate 4 Toggle Bolts 2, packed in the INSTALLATION HARDWARE, from the Toggle Nuts.
2. Match 5/8” holes (not in studs), drilled through WALL TEMPLATE into wall to corresponding holes on Mounting
Plate.
3. Insert Toggle Bolts into matched openings on Mounting Plate. Put Toggle Nuts on Toggle Bolts. See Figure 17.
4. Position the Mounting Plate with the Toggle Bolts attached at the wall location and insert Toggle Nuts and Bolts
through the holes in the wall with the Toggle Nuts closed. Figure 18. Use Wood Screws 1 to attach the Mount-
ing Plate to studs.
NOTE: Before insertion, be sure you leave a space more than the thickness of the wall between the Mounting
Plate and the end of each of the Toggle Nuts (in the closed position). If you do not leave enough space, the
Toggle Nut will not be able to open on the other side of the wall. Also, once a Toggle Nut opens, it cannot be
withdrawn from the hole; therefore make sure all of the Toggles are in the correct position before
insertion.
5. Align the Mounting Plate carefully and hold in position while tightening Toggle Bolts. Pull Toggle Bolt toward you
and turn clockwise to tighten. Figure 19.
1.1 R-1510/11/12/14#349 4/1/03, 11:39 AM12
