Adjustment panel
Extension panel
Foam seal
E-13

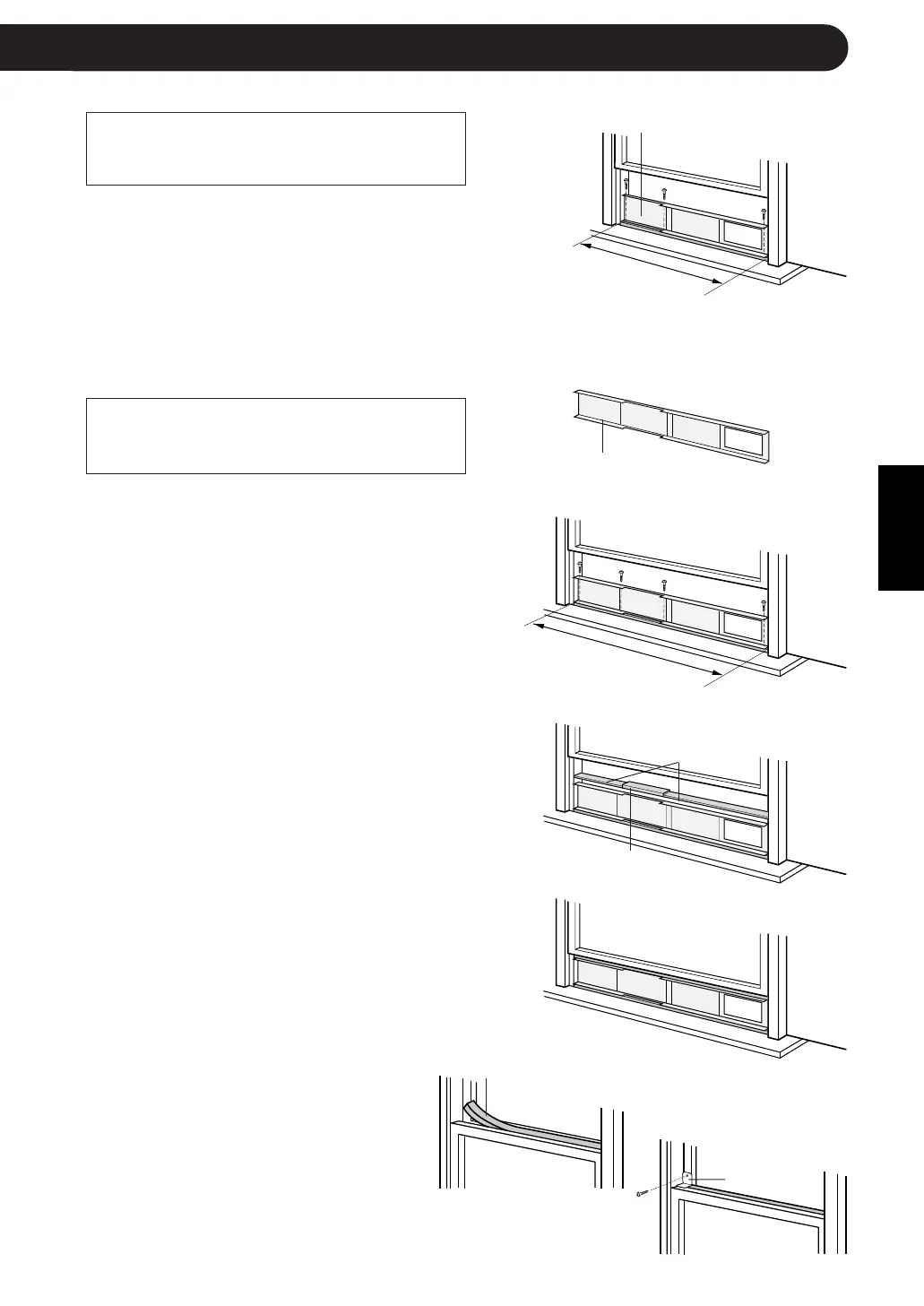

If the inner width of the window is
between 24" (609mm) and 36.8"
(934mm) inclusive.
(1) Open the window sash and place the
window panel on the window stool.
(2) Slide the adjustment panel to fit the
window frame width.
(3) Secure the window panel to the stool with
3 screws.
If the inner width of the window is
between 36.8" (934mm) and 48"
(1219mm) inclusive.
(1) Attach the extension panel to the
adjustment panel.
(2) Open the window sash and place the win-
dow panel on the window stool.
(3) Slide the adjustment and extension
panels to fit the window frame width.
(4) Secure the window panel to the window
stool with 4 screws.
5
Cut the foam seals (adhesive type) A and
B to the proper length and attach it to the
window panel.
Attach foam seal A to the window panel and
extension panel, and attach foam seal B to
the adjustment panel.
6
Close the window sash securely against
the Window panel.
7
Cut the foam seal to an appropriate length
and seal the opening between the top of
the inner window sash and the outer win-
dow sash.
8
Attach a bracket with the screw.
24"~36.8"
36.8"~48"
Foam seal A
(adhesive type)
Foam seal B
(adhesive type)
Bracket
