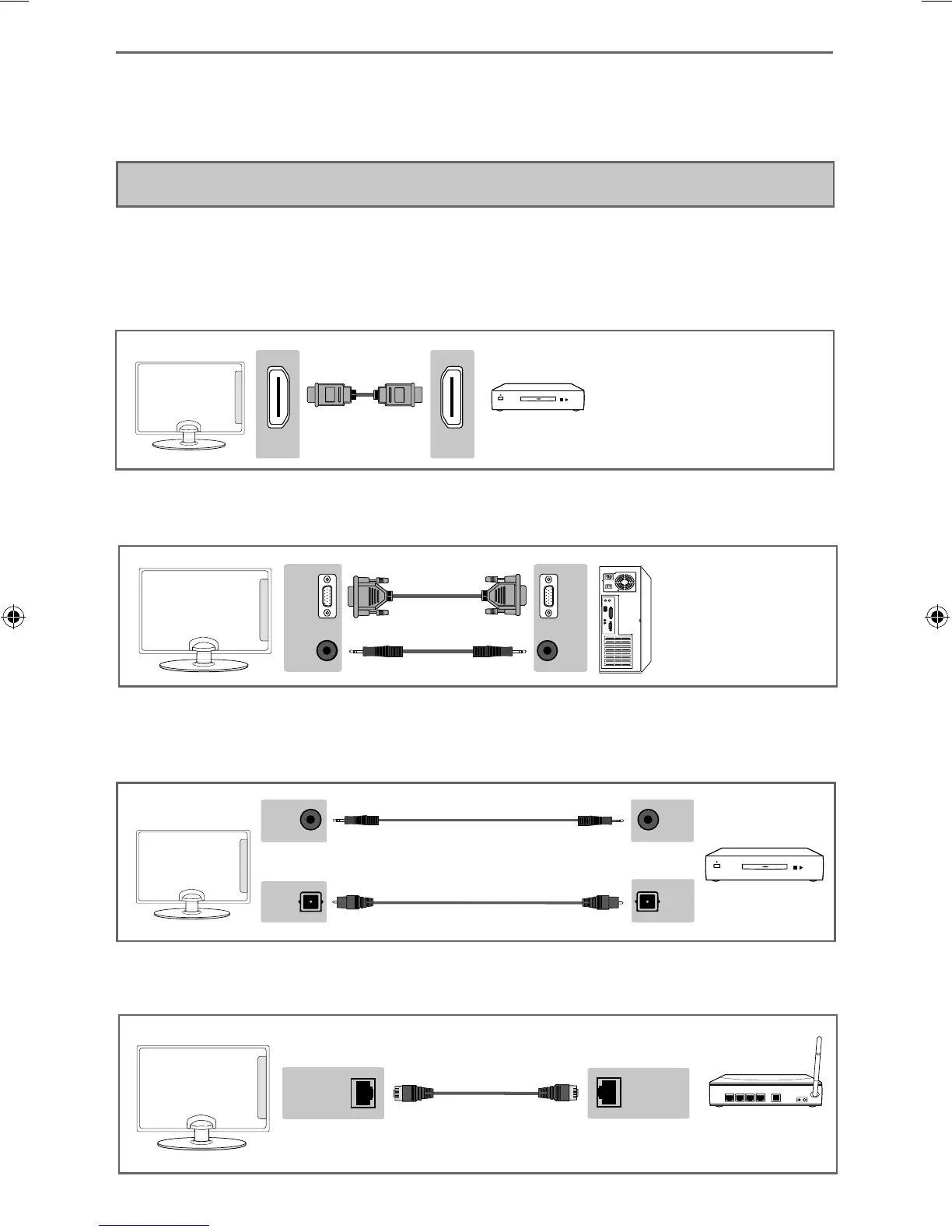

Connections
CONNECTIONS
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm earphone output, this will disable the TV speakers.
3.5mm
earphone
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for Digital Optical Audio Output
Digital
audio
out
(optical)
3.5mm
audio
in
Digital
audio
in
(optical)
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV source should be set to VGA/PC
VGA/PC
in
VGA/PC
out
VGA/PC
(audio
in)
Audio
out
Connecting an Ethernet/Network cable
The LAN/Ethernet port is used for Freeview HD services and smart functions.
Ethernet
port
Ethernet
port
Connecting to a device with HDMI output
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TV source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)
HDMI HDMI
Connection options for all models.
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
