CONNECTIONS

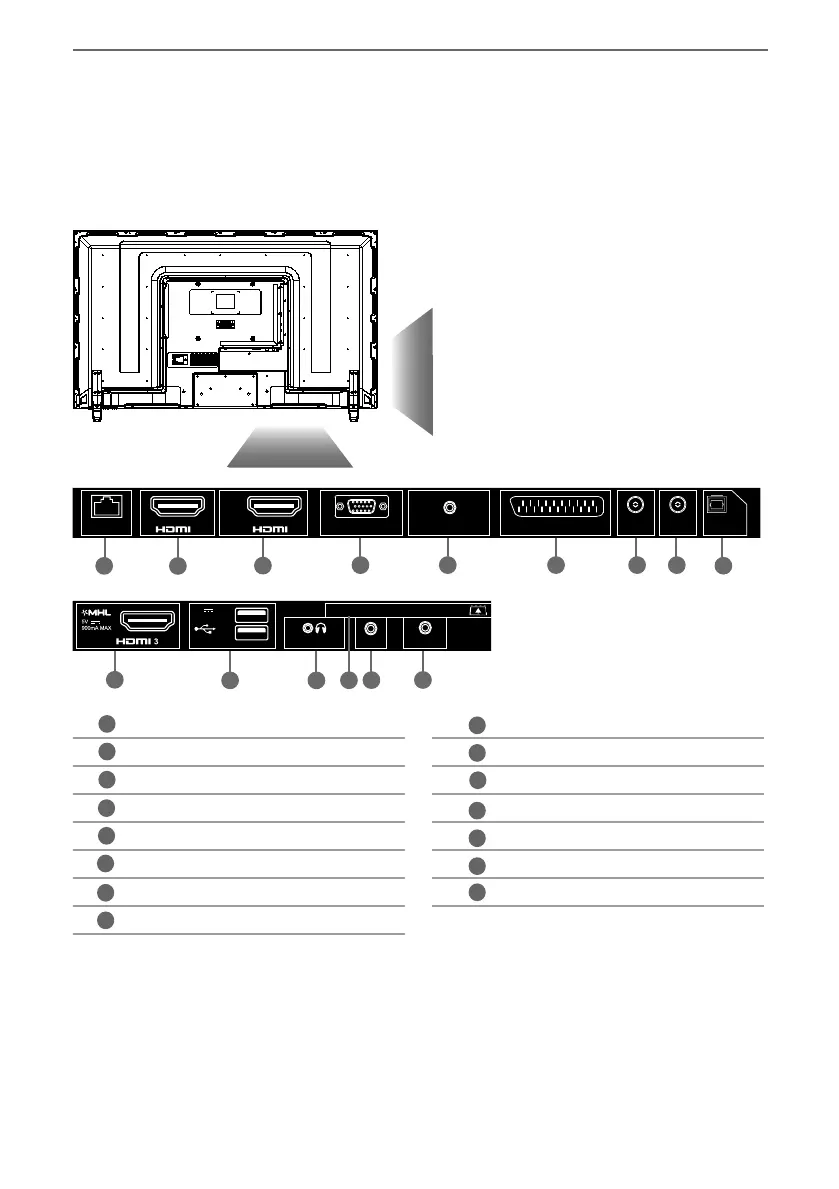

Connections
* The Ethernet/LAN port is used for Freeview HD services and smart functions.
**The Satellite input is for the LC-43CFG6002K model only.
*** HDMI 3 (MHL Port) - MHL is a wired solution that allows you to access the media from your phone or
tablet onto the big screen in the highest quality.
By connecting an MHL cable (sold separately) from your mobile device and into your TV you can playback
all your videos, games and photographs directly onto your TV.
MHL simply mirrors the screen of your mobile device so will work with all applications, whilst connected it
will also charge your device too.
A
C
D E
F
G
H
I
B
Ethernet/LAN* Network Connection
HDMI 1 HDMI input
HDMI 2 (ARC) HDMI input
VGA PC VGA-PC input
VGA PC Audio In 3.5mm PC audio input
SCART SCART input
RF IN RF / TV Aerial Input
SAT IN** Satellite input
Optical Digital Audio Digital Audio output
HDMI 3 (MHL)*** HDMI input
2 x USB USB port
Earphone Earphone Input
CI CARD IN Common Interface module
AV IN Audio/Video Input
YPbPr HD input (Ypbpr)
A
I
L
B
J
M
O
N
C
D
E
F
G
H
K
RF IN SAT IN
OPTICAL
DIGITAL
AUDIO OUT
VGA/PC In
ARC
ETHERNET
2
1
SCART
VGA/PC (Audio In)
Input/Outputs for the LC-43CFG6001K and LC-43CFG6002K
models only.
LK
J
N
O
USB (2.0)
5V
500mA MAX
CI CARD IN
YPbPr INAV IN
EARPHONE
M
