Connections
CONNECTIONS

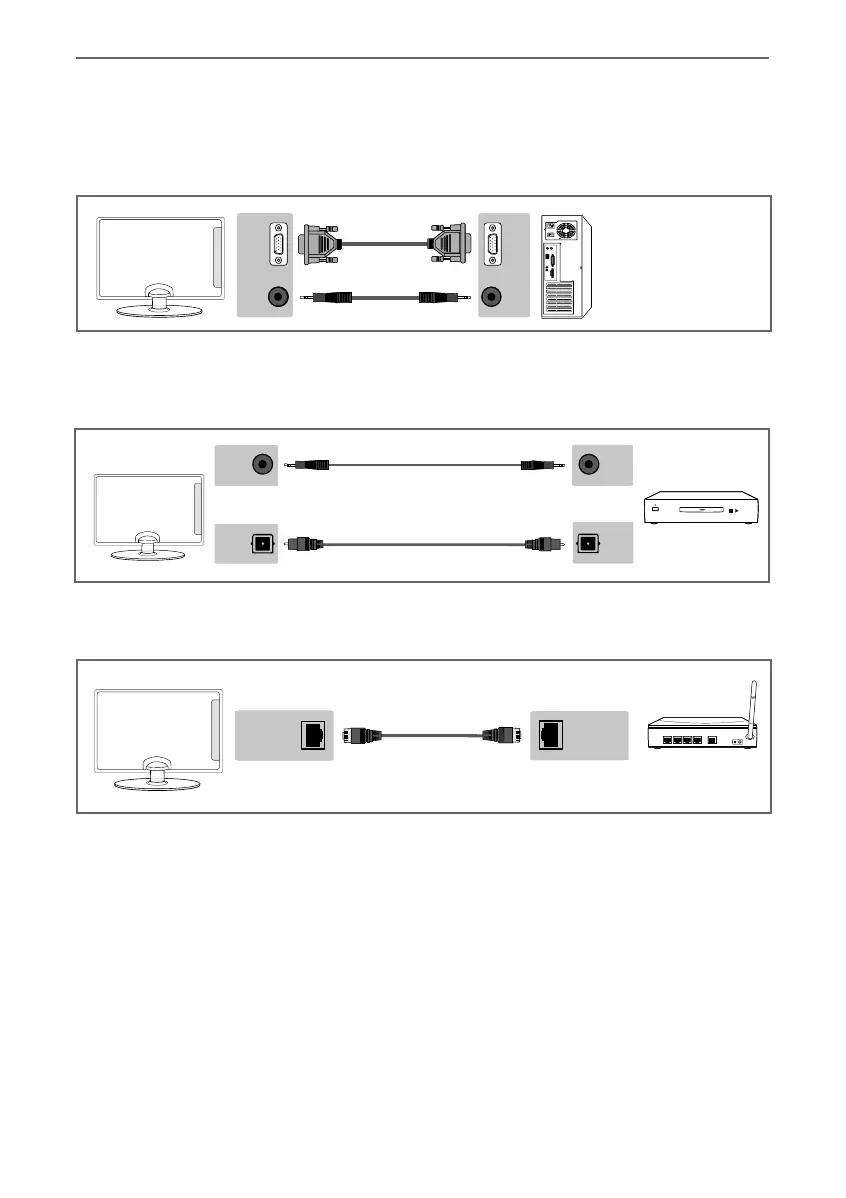

Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm earphone output, this will disable the TV speakers.
3.5mm
earphone
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for Digital Optical Audio Output
Digital
audio
out
(optical)
3.5mm
audio
in
Digital
audio
in
(optical)
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV source should be set to VGA/PC
VGA/PC
in
VGA/PC
out
VGA/PC
(audio
in)
Audio
out
Connecting an Ethernet/Network cable
The LAN/Ethernet port is used for Freeview HD services only.
Ethernet
port
Ethernet
port
