Shure GLXD4 User Manual

Shure Incorporated
32/34
1.
2.
1.
2.
•
•

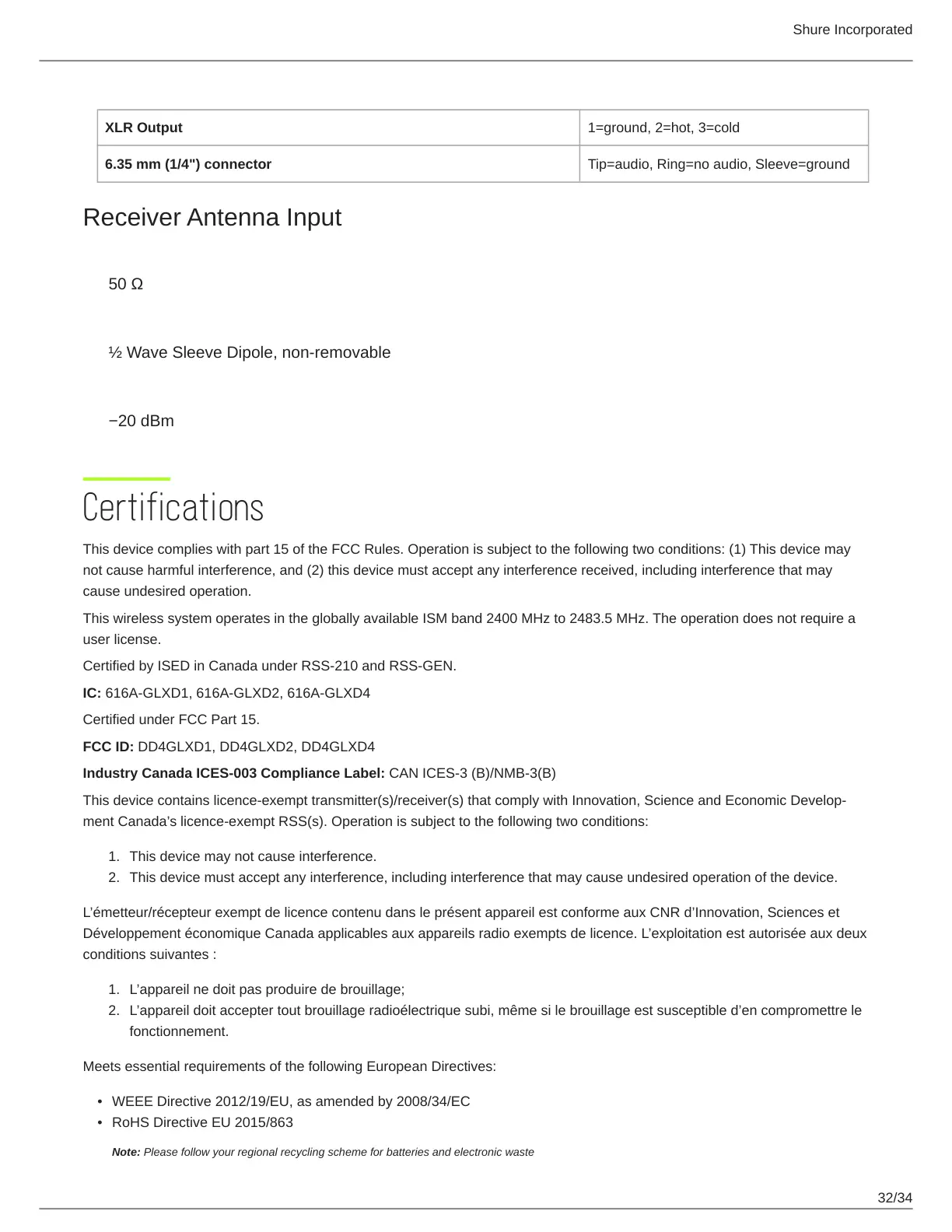

Pin Assignments
XLR Output 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
Receiver Antenna Input
Impedance
50 Ω
Antenna Type
½ Wave Sleeve Dipole, non-removable
Maximum Input Level
−20 dBm
Certifications
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This wireless system operates in the globally available ISM band 2400 MHz to 2483.5 MHz. The operation does not require a
user license.
Certified by ISED in Canada under RSS-210 and RSS-GEN.
IC: 616A-GLXD1, 616A-GLXD2, 616A-GLXD4
Certified under FCC Part 15.
FCC ID: DD4GLXD1, DD4GLXD2, DD4GLXD4
Industry Canada ICES-003 Compliance Label: CAN ICES-3 (B)/NMB-3(B)
This device contains licenceexempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Develop
ment Canada’s licenceexempt RSS(s). Operation is subject to the following two conditions:
This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
L’appareil ne doit pas produire de brouillage;
L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
Meets essential requirements of the following European Directives:
WEEE Directive 2012/19/EU, as amended by 2008/34/EC
RoHS Directive EU 2015/863
Note: Please follow your regional recycling scheme for batteries and electronic waste

Shure GLXD4 Specifications

General

Input voltage	14 - 18 V
Power supply type	AC
Battery life (max)	16 h
Current consumption	550 mA
Battery low indication	Yes
Impedance	50 Ω
Antenna type	Fixed
Display type	LCD
Mounting type	-
Product color	Black
Scan features	Channel scan, Group scan
Housing material	ABS
Antennas quantity	2
Channels quantity	8 channels
High density mode	No
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	20 - 20000 Hz
Total Harmonic Distortion (THD)	0.2 %
XLR out	1

Weight and Dimensions

Depth	117 mm
Width	183 mm
Height	40 mm
Weight	286 g
