3.1.3 Lifting eyes are screwed in place and must be tightened. If the motor is installed vertically
with the DE shaft facing downwards, a protective canopy is recommended to cover the fan
cowling. This canopy is necessary to prevent the ingress of water and foreign objects that may
inhibit proper fan operation.
3.1.4 If the DE shaft is facing upwards, a protective canopy and / or suitable protective measures
are recommended to be taken to prevent liquids from entering the motor windings via the shaft.
3.1.5 Ensure cooling
For motors equipped with separately driven fan, please make design to ensure the motor
cannot be started when the fan is not running.
Warning
Death, severe injury or material damage can occur if you do not carefully observe the following
points.
• Do not obstruct ventilation.
• Prevent the air expelled by neighboring equipment from being immediately
sucked in again.
• For machines with a vertical type construction with air entry from above, prevent
the ingress of foreign bodies and water in the air entry openings.
• If the shaft extension is facing upwards, liquid must be prevented from entering by moving
along the shaft.

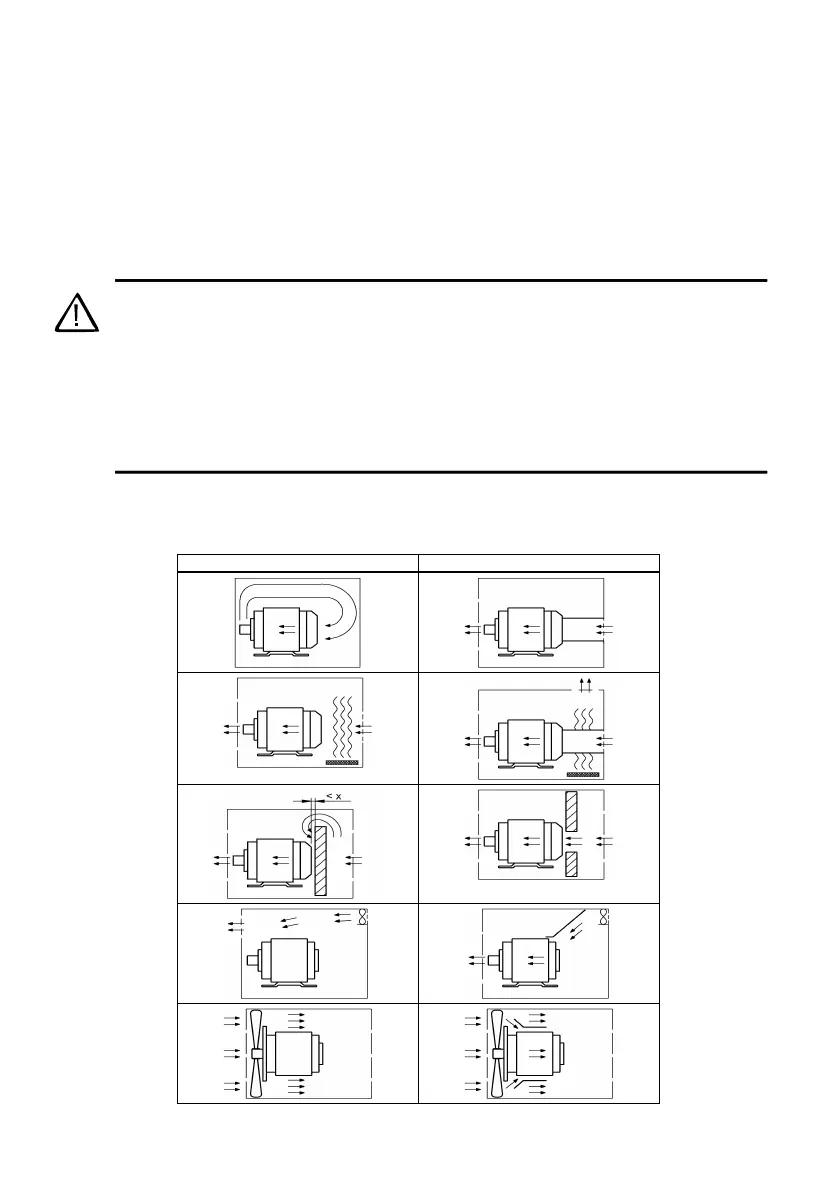

Wrong Correct
