Line Modules Booksize

4.9 Smart Line Modules with external air cooling

Booksize Power Units

Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

315

4.9.6

Dimension drawings

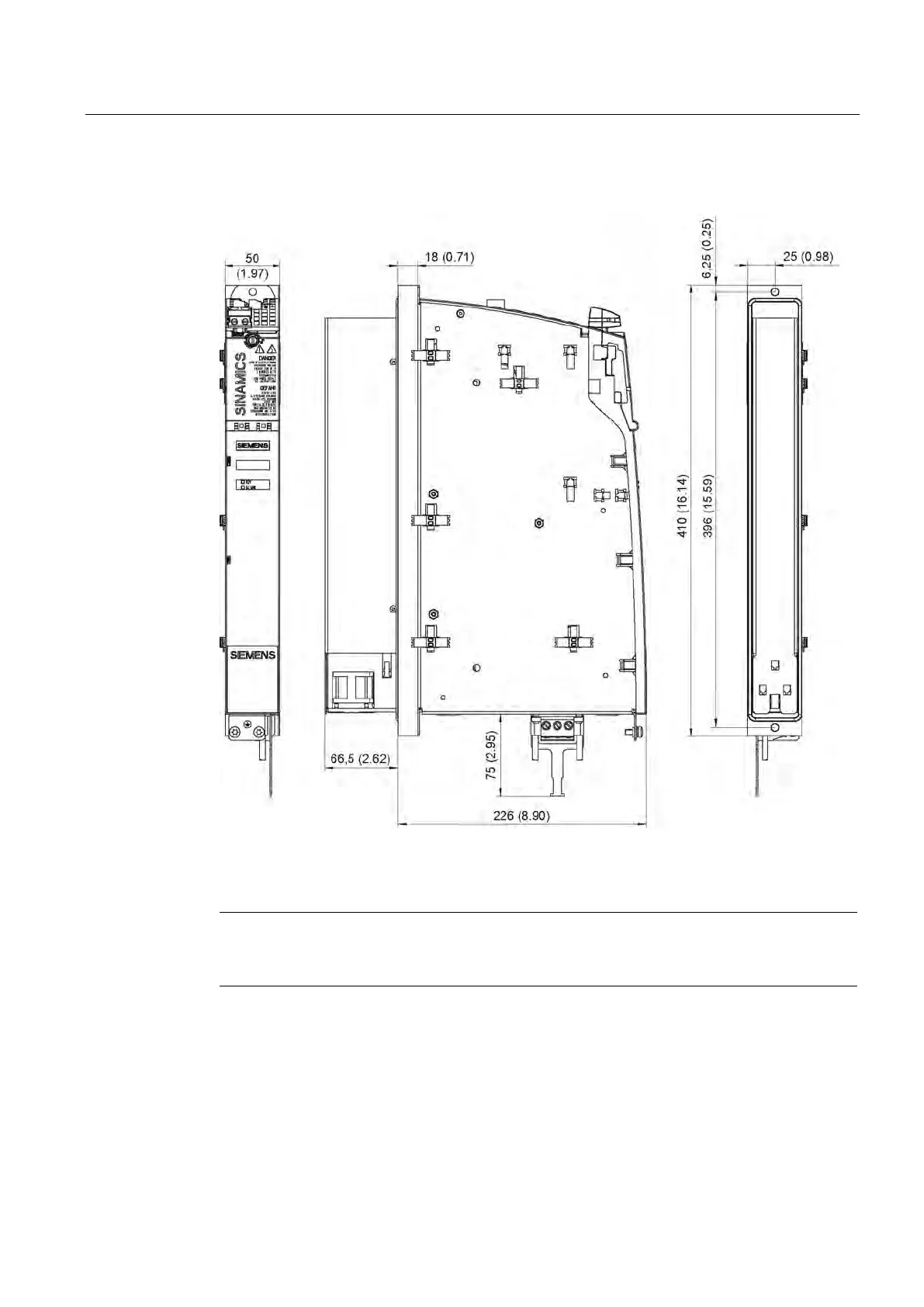

Figure 4-93 Dimension drawing of 5 kW and 10 kW Smart Line Modules with external air cooling, all

dimensions in mm and (inches)

Note

The shield connecting plate is integrated in the power supply connector of the 50 mm Smart

Line Modules.
