Installation
80 Revision 03 * INSTALLATION AND OPERATING INSTRUCTIONS 8DJH * 500-8067.9
12.3 Pressure relief options
In the standard design, the pressure is relieved downwards. In the case of non-
extendable panel blocks with an overall height of 1400 and 1700 mm and wall-standing
arrangement, the pressure can optionally be relieved to the rear.

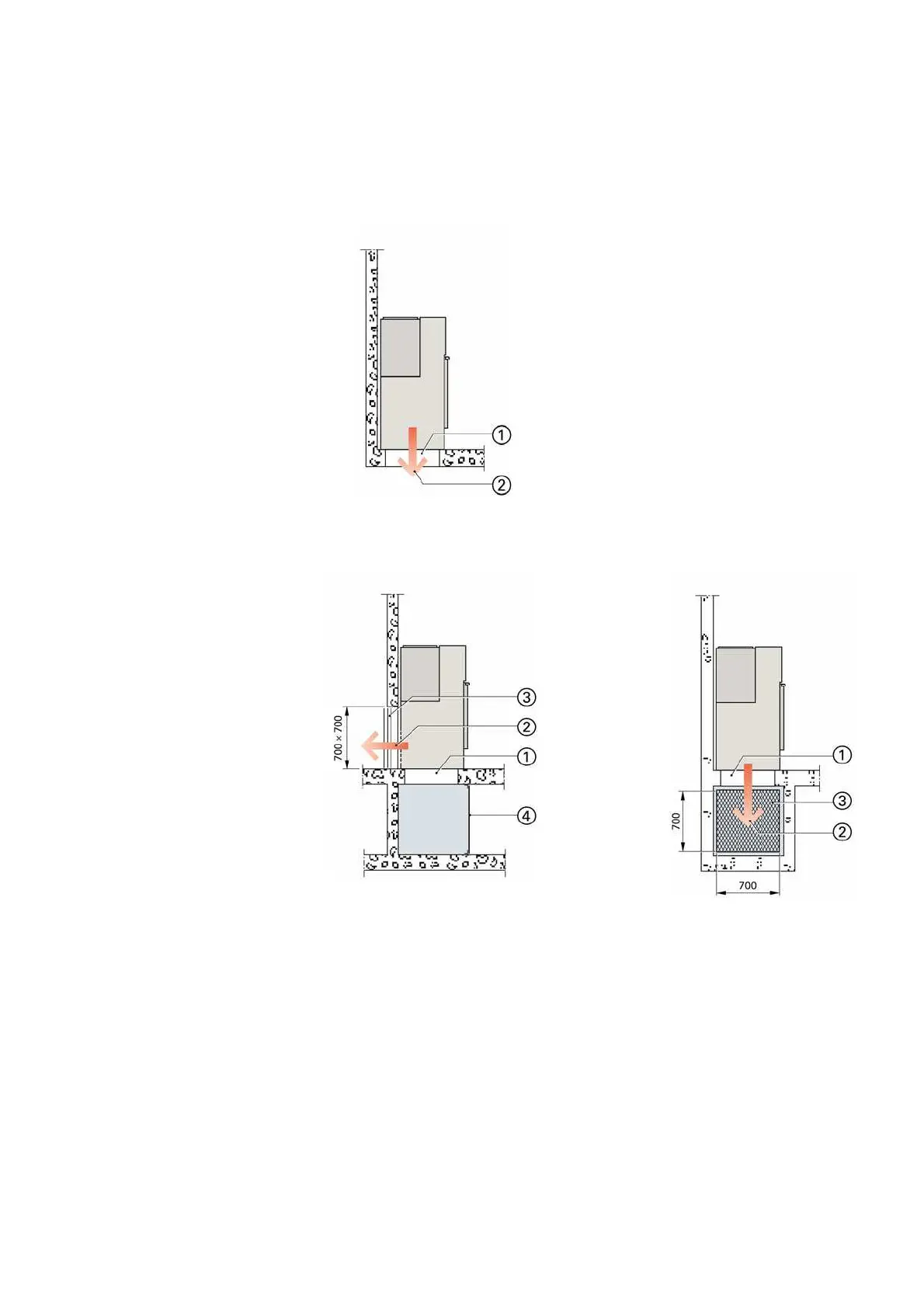

Fig. 48: Standard: Pressure relief downwards
a
Floor opening
s
Direction of pressure relief
d
Expanded metal (supplied by site)
f
Partition (e.g. made of metal, supplied by site)
Fig. 49: Option: Pressure relief to the rear
(side view)
Fig. 50: Option: Pressure relief
downwards (side view)
