148/219

Building Technologies Basic Documentation LMV27... CC1P7541en

26 Parameter level 17.12.2018

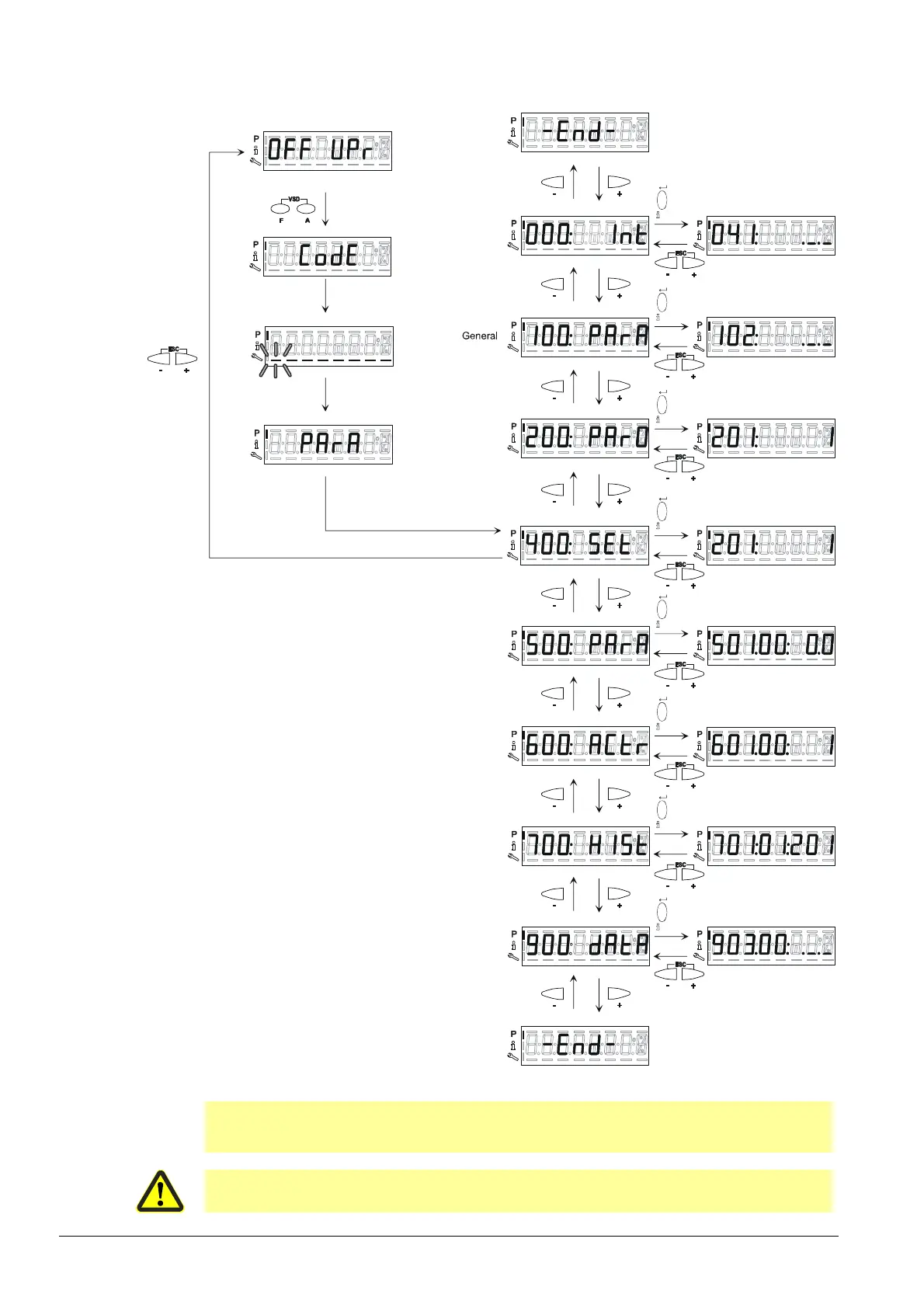

26.6 Structure of parameter levels

The parameters are assigned to different levels.

Air-fuel ratio control curves

(primary setting)

Entering the password

Basic Unit

Internal parameter

(password level)

Air-fuel ratio control

Actuator

Error histery

Process data

Bild 388e/1109

/reset

reset

Figure 81: Parameter level structure



Note

The following sections explain the operating philosophy behind the parameter levels using a

number of examples.

Caution!

Pay special attention to chapter Safety notes on settings and parameter settings!
