Siemens MICROMASTER 440 User Manual

3 Functions Issue 10/06
MICROMASTER 440 Operating Instructions
62 6SE6400-5AW00-0BP0
Connector output (CO) ===> Connector input (CI)
CO/BO: Act. status word 1
FB
r0755
P1070 = 755
(755)
P1070
FB
P0840 = 751.0
r0751
(751:0)
P0840
FB
(751:0)
P0840
(751:0)
P0840
P0731 = 52.3
P2051 = 52
P0731
FB
P0731
(52:3)
P0731
FB
P2051
(52)
FB
r0052
r0052
Binector output (BO) ===> Binector input (BI)
Connector output / Binector output (CO/BO)
BO: Status word of ADC
CO: Act. ADC after scal. [4000h]
CI: Main setpoint
BI: ON/OFF1
CI: PZD to CB
BI: Function of digital output 1
Function
Function
Function
Function
Function
Function
Function

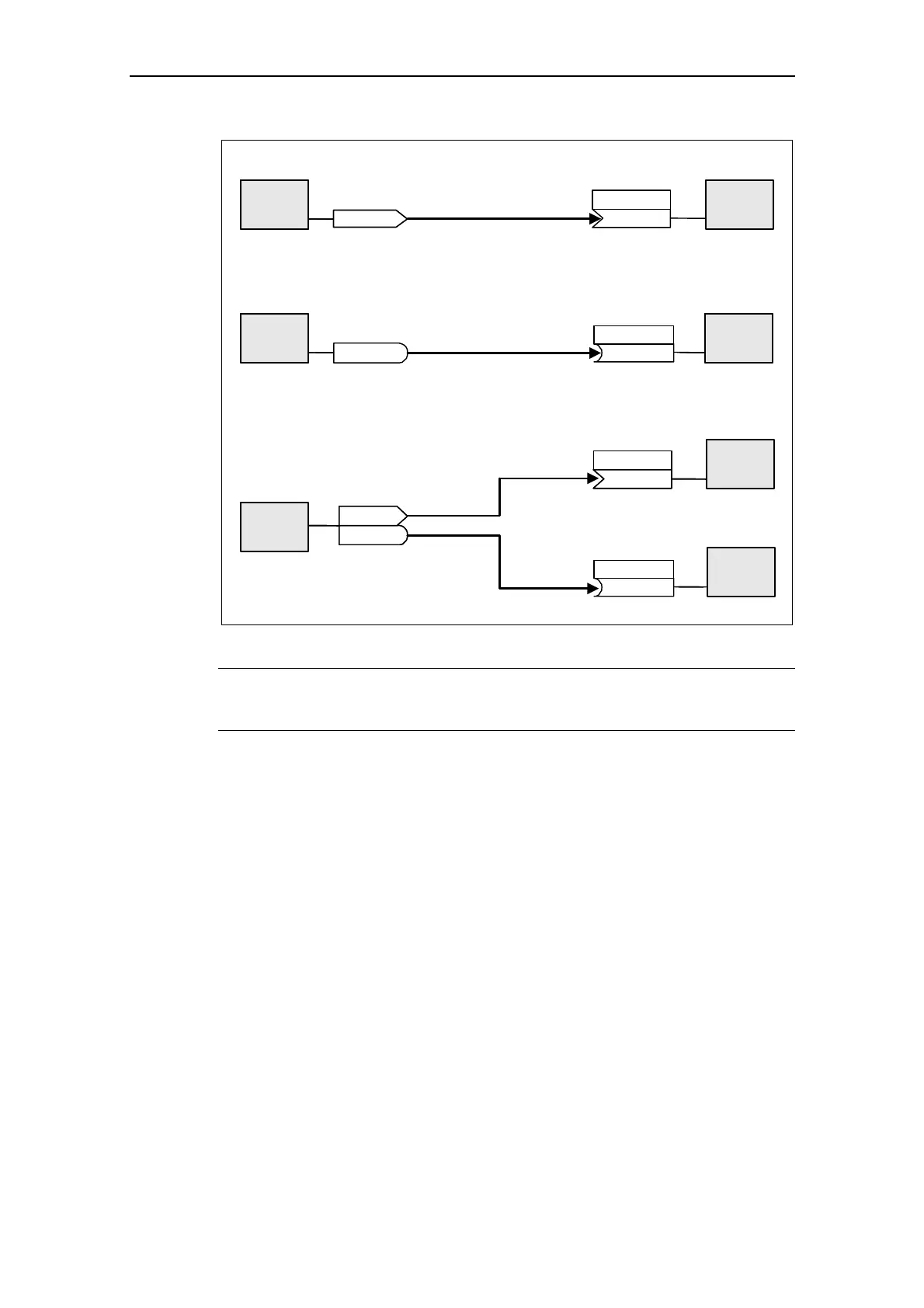

Fig. 3-6 BICO connections (examples)
NOTE
BICO parameters with the CO, BO or CO/BO attributes can be used a multiple
number of times.

Siemens MICROMASTER 440 Specifications

General

Power Range	0.12 kW to 250 kW
Output Voltage	0 V to Input Voltage
Output Frequency	0 Hz to 650 Hz
Control Modes	Vector control
Overload Capability	150% for 60 seconds
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit, Ground Fault
Communication Interfaces	PROFIBUS, DeviceNet, CANopen, Modbus RTU
Enclosure Rating	IP20
Ambient Temperature	-10°C to +50°C
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
