Accessories

4.2 Internal accessories

3VA molded case circuit breakers with IEC certificate

Manual, 03/2019, A5E03603177010-03

201

4.2.3

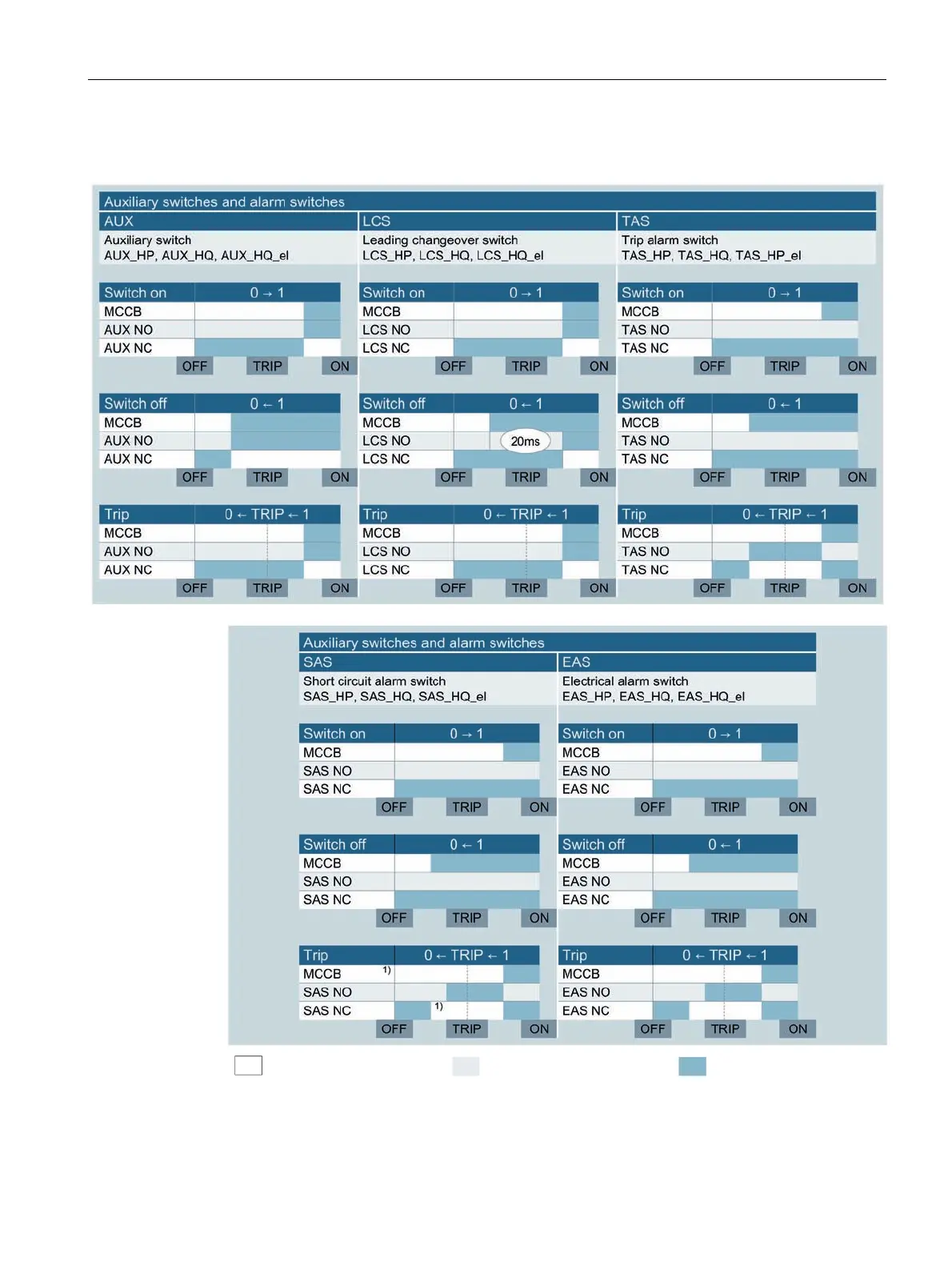

Contact sequence diagrams

Main contacts open

Auxiliary contacts open

Contacts closed

Manual reset by tool necessary after tripping

Automatic reset by motor operator MO320
