Accessories

4.5 Manual operators

3VA molded case circuit breakers with IEC certificate

316 Manual, 03/2019, A5E03603177010-03

4.5.3

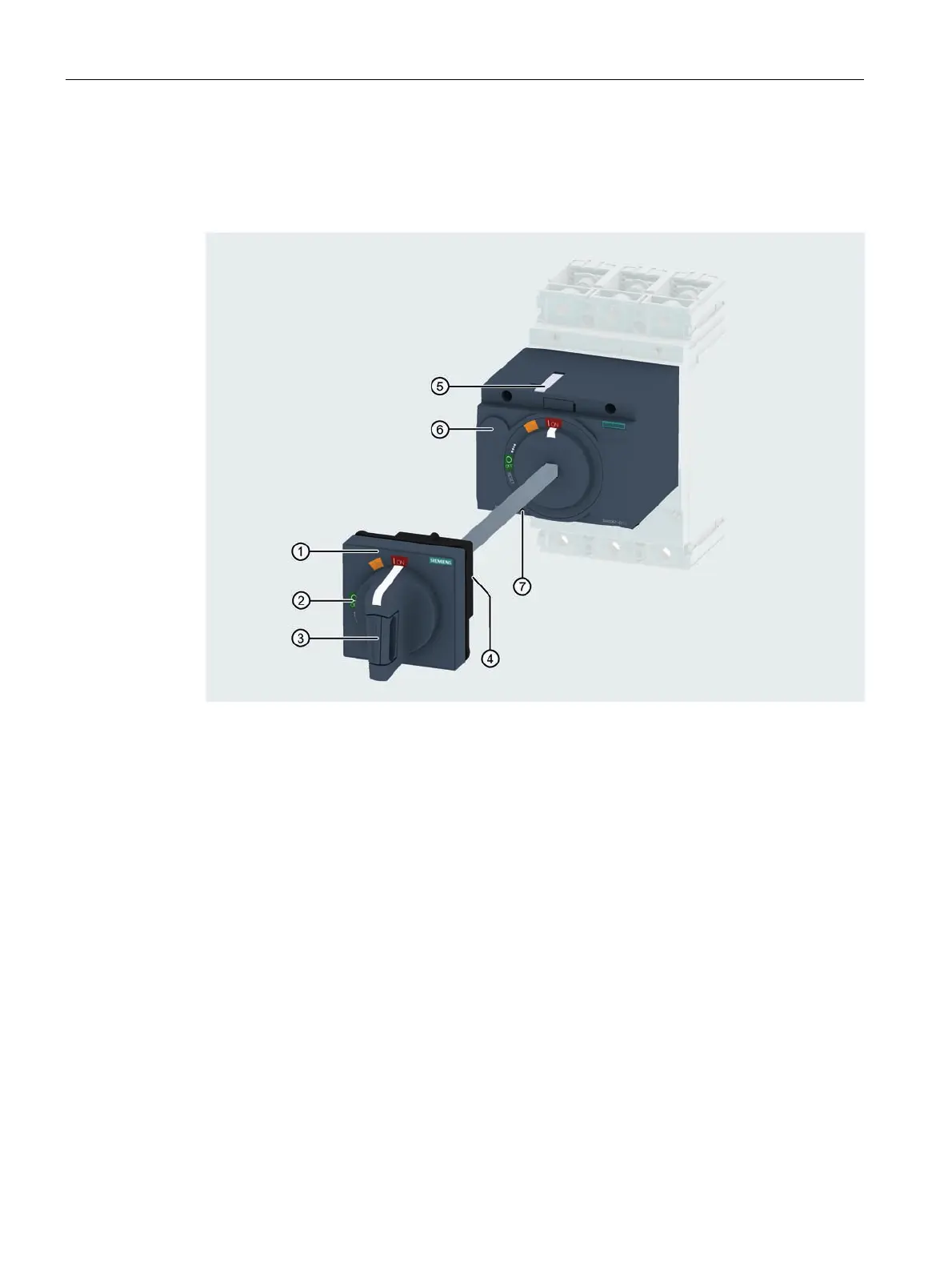

Door mounted rotary operator

With the door mounted rotary operator installed, it is possible to operate the molded case

circuit breaker through the panel door without opening the door.

①

Door mounted rotary operator

②

Indication of the breaker status ON, TRIP, mounting position, OFF, RESET

For mounting position, see chapter Front mounted rotary operator (Page 312)

③

Handle with device for up to 3 padlocks

④

Tolerance compensation

⑤

Device for up to 3 padlocks

⑥

Cylinder lock device (type Ronis)

⑦

Trip unit button <PUSH TO TRIP>
