To reduce the transfer volume, there is not only the "normal" "data exchange" PIV
mechanism, but also the "Read data" and "Write data" commands.
• Data exchange:
– Control → converter request
– Converter → control response
• Read data:
The converter sends a read command, and the data of the last exchange request or write
request is transferred from the converter to the control.
• Write data
Write OK: → 53 hex.
Because the PIV transfer protocol speci󹪝es the transfer direction independently, all
parameters can be transferred as data exchange request/response. Requests for reading and
writing data are included primarily to reduce the transferred data volume for the repeated
reading or writing of parameters.

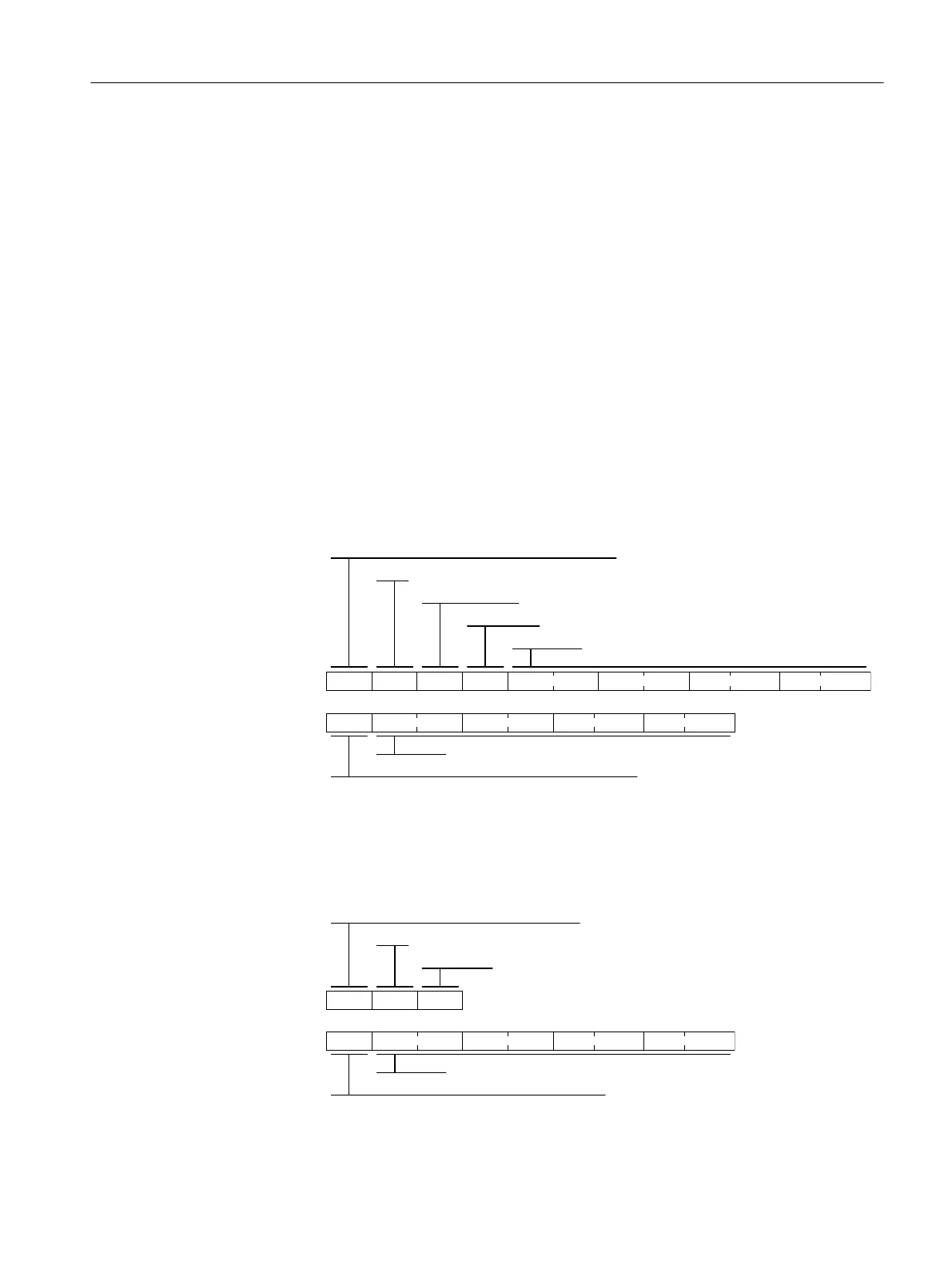

Data exchange
5HTXHVW
PDVWHUVODYH
3,9VKDUH
3,9VKDUH
$QVZHU
VODYHPDVWHU
0DQXIDFWXUHUVSHFLILFH[FKDQJHUHTXHVW
,QGH[
5HDGOHQJWK
:ULWHOHQJWK
0DQXIDFWXUHUVSHFLILFH[FKDQJHUHTXHVW2.
'KH[)KH[ KH[ KH[3.(,1'3:(3:(
'KH[3.(,1'3:(3:(
Reading data
The data for the last write or exchange request is read
5HTXHVW
PDVWHUVODYH
3,9VKDUH
$QVZHU
VODYHPDVWHU
0DQXIDFWXUHUVSHFLILFUHDGUHTXHVW
,QGH[
5HDGOHQJWK
0DQXIDFWXUHUVSHFLILFUHDGUHTXHVW2.
KH[)KH[KH[
KH[3.(,1'3:(3:(
Advanced commissioning
7.7Drive control via AS-i
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 183
