Siemens SINAMICS V20 User Manual

Electrical installation

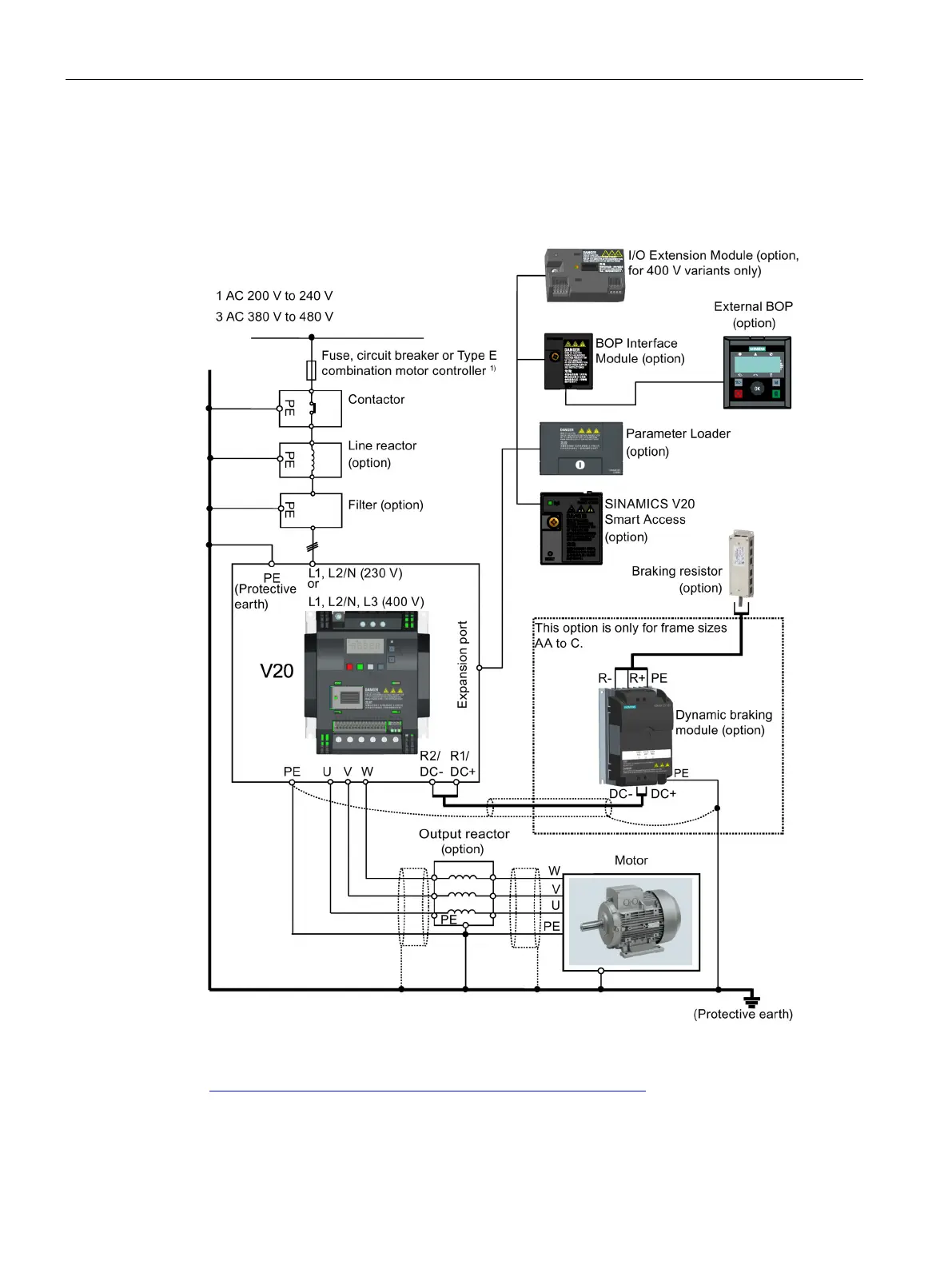

4.1 Typical system connections
SINAMICS V20 Converter
36 Operating Instructions, 10/2019, A5E34559884-012
4.1 Typical system connections
Typical system connections
1)
For more information on the permissible types for these branch circuit protection devices,
see the Product Information of Protective Devices for SINAMICS V20 Converter
(https://support.industry.siemens.com/cs/ww/en/ps/13208/man).

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
